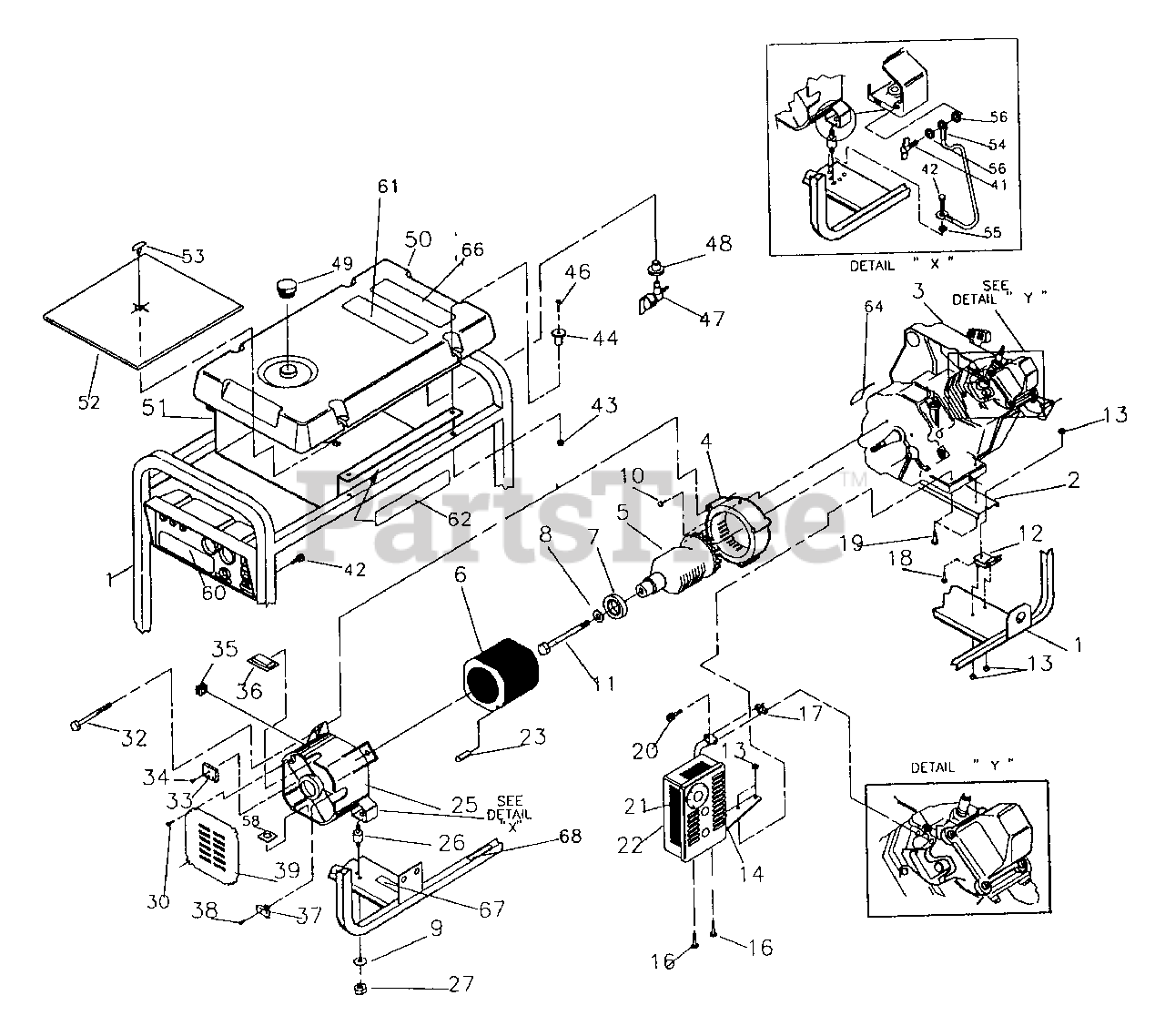

580.326740 (0453-0) - Craftsman 4,200 Watt Portable Generator (1997-02) Repair Parts Drawing Number 97193 Parts Diagram

4,200 Watt Portable Generator

Repair Parts Drawing Number 97193 Parts Diagram

  • Title

1

Briggs & Stratton Part# 97915

CRADLE XL
Usually ships same day

Currently unavailable

$

$

2

Briggs & Stratton Part# 84021

ENGINE SUPPORT
(Superseded to B84021GS)
Usually ships same day

Not available

$

$

3

Briggs & Stratton Part# ~NSP

ENGINE - 7.8 H.P. XL MODEL NO. ENG 98912 (LONGBLOCK ONLY)
Usually ships same day

Currently unavailable

$

$

4

Briggs & Stratton Part# 66365

ENGINE ADAPTER HOUSING
(Superseded to 66365GS)
Usually ships in 4 to 8 days

$

$59.42

0

5

Briggs & Stratton Part# 84141

ROTOR ASSEMBLY
Usually ships same day

Currently unavailable

$

$

6

Briggs & Stratton Part# 83540

STATOR ASSEMBLY
Usually ships same day

Currently unavailable

$

$

7

Briggs & Stratton Part# 65791

BEARING
(Superseded to 65791GS)
Usually ships in 1 day

$

$26.72

0

8

Briggs & Stratton Part# 67451

M8 FLAT WASHER
Usually ships same day

Currently unavailable

$

$

9

Briggs & Stratton Part# 22129

M8 LOCK WASHER
(Superseded to 22129GS)
Usually ships in 4 to 8 days

$

$2.26

0

10

Briggs & Stratton Part# 86307

5/16-24 X 3/4 HEX HEAD MACH. SCREW
(Superseded to 86307GS)
Usually ships in 4 to 8 days

$

$2.24

0

11

Briggs & Stratton Part# 47480

5/16-24 X 7" HEX HEAD CAP SCREW
Usually ships same day

Not available

$

$

12

Briggs & Stratton Part# 84508

45 DEG. VIBRATION MOUNT
(Superseded to 84508GS)
Usually ships in 1 day

$

$15.93

0

13

Briggs & Stratton Part# 52858

M8 LOCKING NUT
(Superseded to 52858GS)
Usually ships in 1 day

$

$2.68

0

14

Briggs & Stratton Part# 83208

MUFFLER BRACKET
(Superseded to 83208GS)
Usually ships in 4 to 8 days

$

$17.66

0

16

Briggs & Stratton Part# 66476

M6-1.00 X 12 HEX HEAD MACH. SCREW WITH LOCK WASHER
(Superseded to 66476GS)
Usually ships in 1 day

$

$2.52

0

17

Briggs & Stratton Part# 89476

EXHAUST GASKET
(Superseded to 89476GS)
Usually ships same day

Not available

$

$

18

Briggs & Stratton Part# 70644

M8-1.25 X 20 PHILLIPS PAN HEAD MACH. SCREW
(Superseded to 70644GS)
Usually ships in 4 to 8 days

$

$3.97

0

19

Briggs & Stratton Part# 84346

M8-35 PHILLIPS PAN HEAD MACH. SCREW
(Superseded to 195398GS)
Usually ships in 1 day

$

$2.52

0

20

Briggs & Stratton Part# 40976

M8-1.25 X 20 SOCKET HEAD CAP SCREW
Usually ships same day

Not available

$

$

21

Briggs & Stratton Part# 83083

SPARK ARRESTOR SCREEN
(Superseded to 83083GS)
Usually ships in 1 day

$

$6.65

0

22

Briggs & Stratton Part# 83071

MUFFLER
(Superseded to 83071GS)
Usually ships same day

Not available

$

$

23

Briggs & Stratton Part# 81917

M4 X 10 ROLL PIN
(Superseded to 81917GS)
Usually ships in 4 to 8 days

$

$2.24

0

25

Briggs & Stratton Part# 66825B

REAR BEARING CARRIER
Usually ships same day

Currently unavailable

$

$

26

Briggs & Stratton Part# 85652

VIBRATION MOUNT
(Superseded to 85652GS)
Usually ships in 1 day

$

$8.27

0

27

Briggs & Stratton Part# 45771

M8 HEX NUT
Usually ships same day

Not available

$

$

30

Briggs & Stratton Part# 74908

M5-0.8 X 10 TAPTITE
(Superseded to 74908GS)
Usually ships in 4 to 8 days

$

$2.24

0

32

Briggs & Stratton Part# 86308

M6-1.0 X 115 STATOR BOLT
(Superseded to 86308GS)
Usually ships same day

Not available

$

$

33

Briggs & Stratton Part# 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)
Usually ships same day

Not available

$

$

34

Briggs & Stratton Part# 66849A

M5-0.7 X 20 TAPTITE
(Superseded to 66849AGS)
Usually ships in 4 to 8 days

$

$3.97

0

35

Briggs & Stratton Part# 67022

RUBBER GROMMET
(Superseded to 67022GS)
Usually ships same day

Not available

$

$

36

Briggs & Stratton Part# 84132

DRIVE MODULE
(Superseded to 84132GS)
Usually ships in 1 day

$

$92.35

0

37

Briggs & Stratton Part# 66386

BRUSH HOLDER ASSEMBLY
(Superseded to 66386GS)
Usually ships in 1 day

$

$17.83

0

38

Briggs & Stratton Part# 66849

M5-0.7 X 16 TAPTITE
(Superseded to 66849GS)
Usually ships in 1 day

$

$3.58

0

39

Briggs & Stratton Part# 67025

BEARING CARRIER COVER
Usually ships same day

Currently unavailable

$

$

41

Briggs & Stratton Part# 86494

M6-1.0 X 16 WING SCREW
(Superseded to 86494GS)
Usually ships in 4 to 8 days

$

$2.24

0

42

Briggs & Stratton Part# 86292

10-16 X SELF DRILLING CAP SCREW
(Superseded to 313085GS)
Usually ships in 1 day

$

$4.00

0

43

Briggs & Stratton Part# 77395

M6 FLANGE LOCK NUT
(Superseded to 77395GS)
Usually ships in 1 day

$

$2.68

0

44

Briggs & Stratton Part# 83465

TANK GROMMET
(Superseded to 83465GS)
Usually ships in 1 day

$

$2.63

0

46

Briggs & Stratton Part# 78831B

M6-1.0 X 60 (BLACK) MACH. SCREW
(Superseded to 78831BGS)
Usually ships same day

Not available

$

$

47

Briggs & Stratton Part# 80270

VALVE TANK
(Superseded to 192980GS)
Usually ships in 1 day

$

$13.92

0

48

Briggs & Stratton Part# 78299

PLASTIC TANK BUSHING
(Superseded to 192980GS)
Usually ships in 1 day

$

$13.92

0

49

Briggs & Stratton Part# 85134

FUEL CAP
(Superseded to B4363GS)
Usually ships in 1 day

$

$32.53

0

50

Briggs & Stratton Part# 83311

FUEL TANK
Usually ships same day

Currently unavailable

$

$

51

Briggs & Stratton Part# 84042

HEAT SHIELD
Usually ships same day

Currently unavailable

$

$

52

Briggs & Stratton Part# 84687

#2-1/4" INSULATION
(Superseded to 84687GS)
Usually ships in 4 to 8 days

$

$19.01

0

53

Briggs & Stratton Part# 85000

CLIP INSULATION
(Superseded to 85000GS)
Usually ships in 4 to 8 days

$

$2.52

0

54

Part# 14353621

GROUND WIRE
Usually ships same day

Not available

$

$

55

Briggs & Stratton Part# 23762

#10 SHAKEPROOF
(Superseded to 23762GS)
Usually ships in 4 to 8 days

$

$2.52

0

56

Briggs & Stratton Part# 26850

M6 SHAKEPROOF
Usually ships same day

Not available

$

$

58

Briggs & Stratton Part# 57593

CABLE TIE MOUNT
(Superseded to 57593GS)
Usually ships in 4 to 8 days

$

$3.97

0

60

Briggs & Stratton Part# 97190

CONTROL PANEL DECAL
(Superseded to 97190GS)
Usually ships in 4 to 8 days

$

$8.83

0

61

Briggs & Stratton Part# 92982

DANGER DECAL
(Superseded to 194799GS)
Usually ships in 1 day

$

$8.72

0

62

Briggs & Stratton Part# 97191

HEAT SHIELD DECAL
(Superseded to 97191GS)
Usually ships same day

Not available

$

$

64

Briggs & Stratton Part# 78817

DATA DECAL
(Superseded to 78817GS)
Usually ships same day

Not available

$

$

66

Briggs & Stratton Part# 93826

START DECAL
(Superseded to 93826GS)
Usually ships same day

Not available

$

$

67

Briggs & Stratton Part# 96409

1-800 DECAL
(Superseded to 96409GS)
Usually ships in 4 to 8 days

$

$7.44

0

68

Briggs & Stratton Part# 77816

MUFFLER WARNING DECAL
(Superseded to 77816GS)
Usually ships in 4 to 8 days

$

$3.69

0
