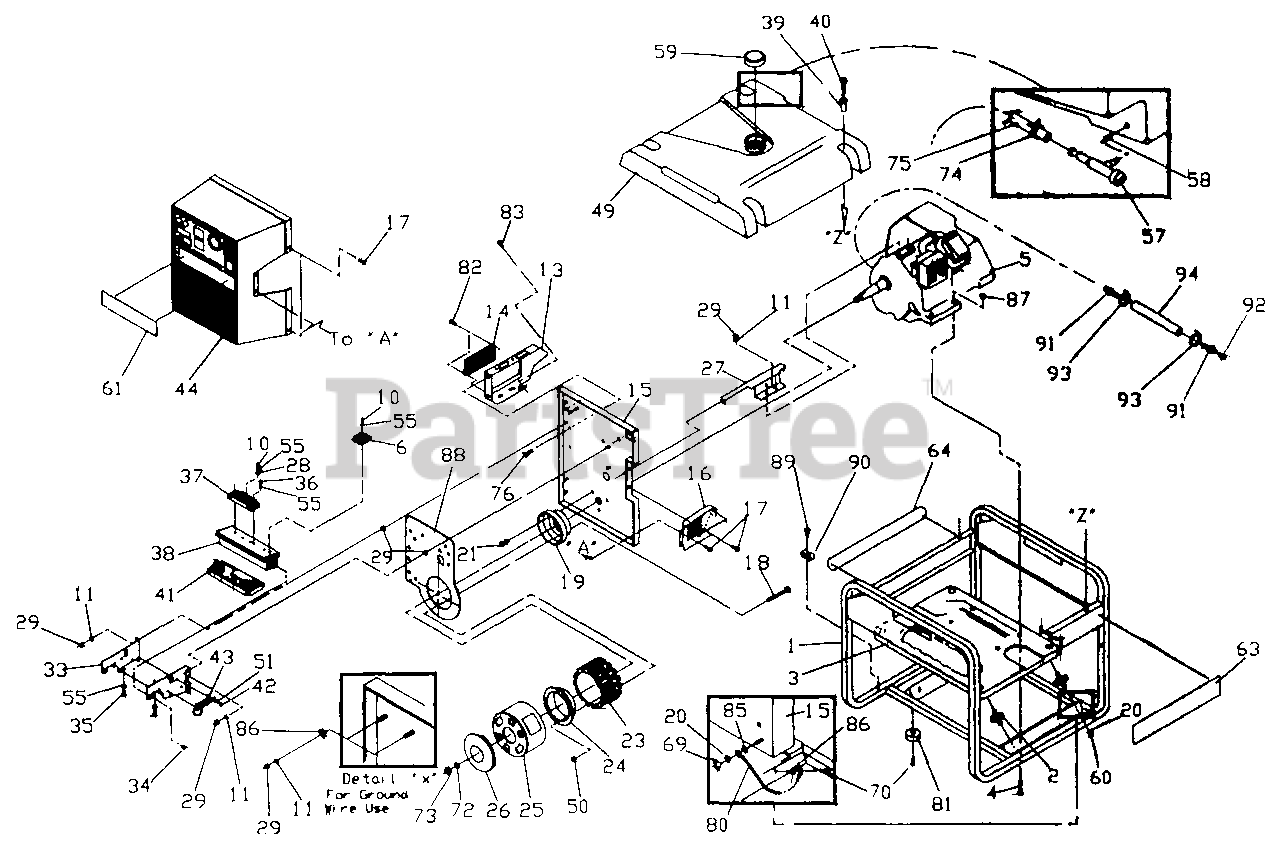

580.326900 (0811-0) - Craftsman 3,600 Watt Portable Generator Cradle, Stator, Control Panel, Fuel Tank Parts Diagram

3,600 Watt Portable Generator

Cradle, Stator, Control Panel, Fuel Tank Parts Diagram

  • Title

1

Briggs & Stratton A5760

ASSEMBLY, CRADLE
(Superseded to A5760GS)

$378.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 87091

MOUNTS, VIBRATION

$

$

Not available

3

Briggs & Stratton 82548

ASSEMBLY, SUB BASE
(Superseded to 82548GS)

$84.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 51731

CAPSCR., HEX HD.-M8-1.25 x 50MM

$

$

Not available

5

Briggs & Stratton ~NSP

ENGINE, 7.8 HP.

$

$

Currently unavailable

6

Briggs & Stratton 65795

RECTIFIER, BATT. CHARGE
(Superseded to 65795GS)

$

$

Not available

10

Briggs & Stratton 75476

PPHMS, M4-0.7 x 16
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22097

LOCK WASHER, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 83114

BRACKET, REAR FUEL TANK

$

$

Currently unavailable

14

Briggs & Stratton 75812

DOOR, STORAGE
(Superseded to 7075812YP)

$7.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82540

WALL, DIVIDER
(Superseded to 82540GS)

$27.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A4745

ASSEMBLY, MUFFLER AIR DUCT

Note: Torque to 132 in. lbs.

$

$

Not available

17

Briggs & Stratton 88540

TAPTITE, M4-0.7 x 12MM
(Superseded to 88540GS)

$2.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 53410

CAPSCR., HEX HD.-M6-1.0 x 90MM

$

$

Not available

19

Briggs & Stratton 80935

ADAPTOR, ENG. HOUSING

$

$

Currently unavailable

20

Briggs & Stratton 22129

LOCK WASHER-M8-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 86307

SEMS, HEX HD. - 5/16-24 x 3/4"
(Superseded to 86307GS)

Note: Torque to 132 in. lbs.

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 94009B

ASSEMBLY, STATOR

$

$

Currently unavailable

24

Briggs & Stratton 80934

RING, RETAINER

$

$

Currently unavailable

25

Briggs & Stratton 90013

ASSEM., MAGNET HOUSING

$

$

Not available

26

Briggs & Stratton 80933

FAN, MAGNET HOUSING

$

$

Currently unavailable

27

Briggs & Stratton 97643

BRACKET, FRONT FUEL TANK

$

$

Currently unavailable

28

Briggs & Stratton 91297001

GROUND WIRE ASSEMBLY

$

$

Currently unavailable

29

Briggs & Stratton 49813

NUT, HEX-M6-1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 82537

BRACKET, PCB MOUNTING
(Superseded to 82537GS)

$16.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 66849B

TAPTITE, M5-0.8 x 8 LONG
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 51718

CAPSCR., HEX HD. M4-0.7 x 10MM

$

$

Not available

36

Briggs & Stratton 91525

PHILLIPS PAN HD. - M4-0.7 x 6MM
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

37

Briggs & Stratton 86275

MODULE, TRIAC

$

$

Currently unavailable

38

Briggs & Stratton 80939

EXTRUSION, CONTROLLER

$

$

Currently unavailable

39

Briggs & Stratton 83465

GROMMET, FUEL TANK
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 78831B

SCREW, HEX-M6-1.0
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton A3369

ASSEM., PCB CONTAINER

$

$

Currently unavailable

42

Briggs & Stratton 43181

PAN HD. MACH. SCR. - M3-0.5 x 10MM
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 83491

RESISTOR, 50W 500 OHM

$

$

Currently unavailable

44

Briggs & Stratton 86817A

CONTROL PANEL

$

$

Currently unavailable

49

Briggs & Stratton 93792

TANK, FUEL
(Superseded to 93792GS)

$195.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 52857

NUT, LOCKING, M6-1.0
(Superseded to 52857GS)

Note: Torque to 84 in. lbs.

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 43182

LOCK WASHER, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 22264

LOCK WASHER, M4

$

$

Not available

57

Briggs & Stratton 80270

VALVE, TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 78299

BUSHING, TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

59

Briggs & Stratton 84582

CAP, FUEL

$

$

Currently unavailable

60

Briggs & Stratton 45771

NUT, HEX - M8-1.25

$

$

Not available

61

Briggs & Stratton A5273

DECAL, CONTROL PANEL

$

$

Currently unavailable

63

Briggs & Stratton A5686

DECAL, CRADLE LOGO

$

$

Currently unavailable

64

Briggs & Stratton A5684

DECAL, CRADLE INSTRUC.

$

$

Currently unavailable

69

Briggs & Stratton 87880

WING NUT, M6-1.0

$

$

Currently unavailable

70

Briggs & Stratton 88289

SELF DRILL, 1/4" x 14 x 3/4" LONG

$

$

Not available

72

Briggs & Stratton 83312

WASHER, M16 CONICAL

$

$

Currently unavailable

73

Briggs & Stratton 81810

NUT, M16-1.5 HEX

Note: Torque Nut to 700 in. lbs.

$

$

Currently unavailable

74

Briggs & Stratton 48031G

CLAMP, FUEL HOSE
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 82580C

HOSE, FUEL

$

$

Currently unavailable

76

Briggs & Stratton 45756

TAPTITE, M6-1.0 x 10MM LONG

$

$

Not available

80

Briggs & Stratton 15253621

CRADLE GROUND STRAP

$

$

Currently unavailable

81

Briggs & Stratton 87841

VIBRATION PADS
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

82

Briggs & Stratton 89556

RIVET

$

$

Currently unavailable

83

Briggs & Stratton 83512

BOLT, TAPTITE - M8 x 15 LONG
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 23365

WASHER, SHAKE PROOF M8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

86

Briggs & Stratton 26850

WASHER, SHAKE PROOF M6

$

$

Not available

87

Briggs & Stratton 52858

NUT, LOCK M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

88

Briggs & Stratton 86279

INSULATOR, STATOR LEADS
(Superseded to 86279GS)

$10.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 86292

SELF DRILL, 10-16 x 3/4"
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

90

Briggs & Stratton 65852

HOSE, RETAINER CLIP
(Superseded to 65852GS)

$9.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 35461

1/4" NPT x 3/8" BARBED FITTING

$

$

Not available

92

Briggs & Stratton 69811

1/4" NPT CAP

$

$

Not available

93

Briggs & Stratton 48031E

HOSE CLAMP

$

$

Currently unavailable

94

Briggs & Stratton 47290

3/8 I.D. HOSE x 10" LONG
(Superseded to 5047290B)

$136.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A4051

Owner's Manual
(Superseded to A4051GS)

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 83038

Spark Arrestor

Note: (Not Shown)

$

$

Currently unavailable

Briggs & Stratton A8926

ENGINE OWNER'S MANUAL
(Superseded to A8926GS)

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 66818

120V AC OUTLET
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 66821

12V DC OUTLET
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 68868C

OUTLET, TWLK 120V
(Superseded to 68868CGS)

$37.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 75207D

CIRCUIT BREAKER 15A 2P
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 82539

SWITCH, ROCKER OFF-ON
(Superseded to 82539GS)

$5.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 83514

RETAINING BAR
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84198

CAP, CIRCUIT BREAKER
(Superseded to 84198GS)

$4.49

$

In Stock, only 2 left!

0

Briggs & Stratton 84538

PLASTIC, #6-19 x .75

$

$

Currently unavailable

Briggs & Stratton 86755

BAR, C.B. RETAINING

$

$

Currently unavailable

Briggs & Stratton 87982A

HEAT ASSEMBLY, GRAY

$

$

Currently unavailable
