580.327040 (9084-0) - Craftsman 2,400 Watt Portable Generator Cradle Parts Diagram

2,400 Watt Portable Generator

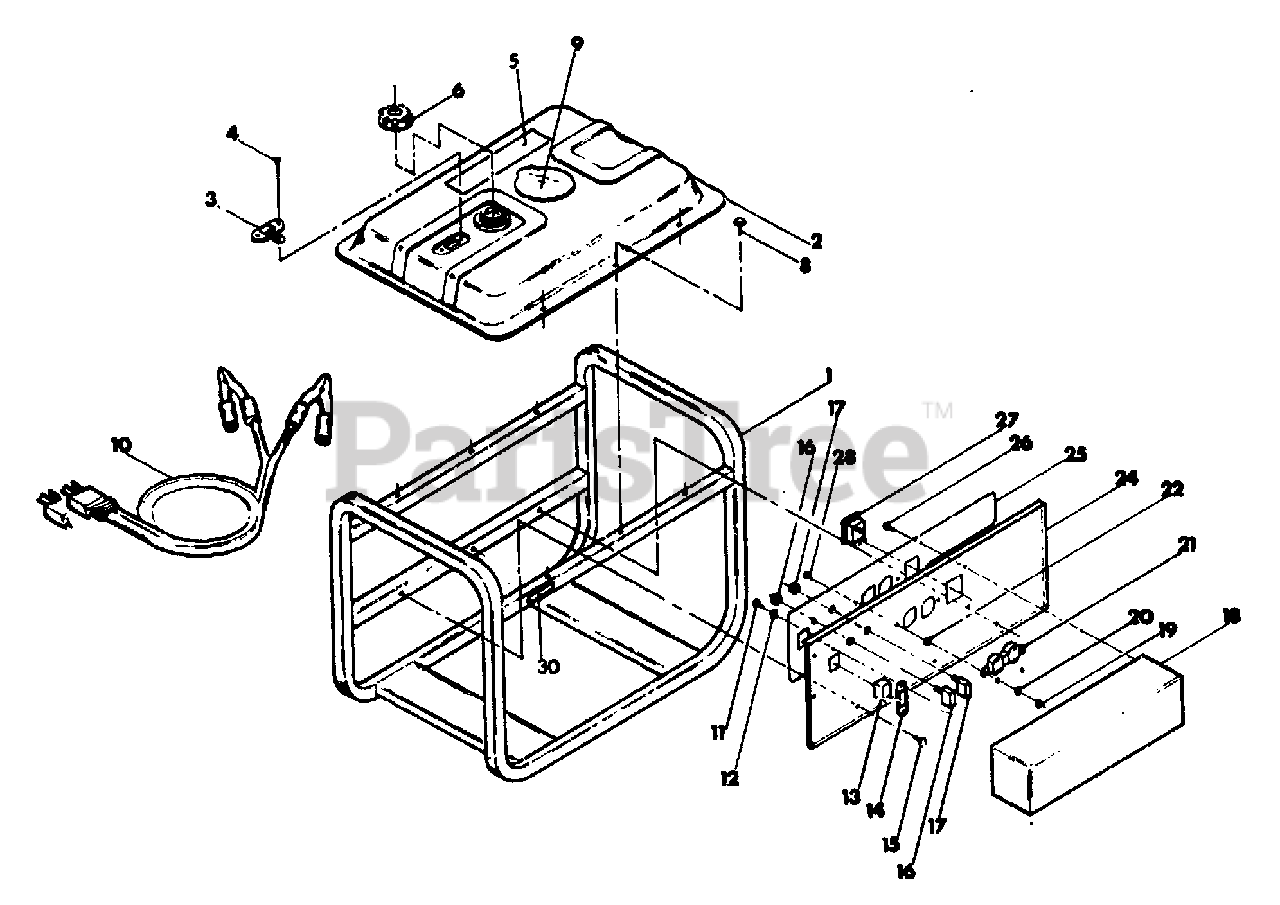

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 75931

CRADLE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 69661

TANK, FUEL

$

$

Not available

3

Briggs & Stratton 66391B

GAUGE, FUEL LEVEL

$

$

Not available

4

Briggs & Stratton 52749

SCR. PAN HD.-M5-0.80 x 12MM

$

$

Currently unavailable

5

Briggs & Stratton 70365

DECAL, PORTABLE INFORMATION

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 69658

CAP, FUEL TANK

$

$

Currently unavailable

8

Briggs & Stratton 56893

SCR. (CRIMPTITE)-NO.10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 70728

SCR. PAN HD.-M3-0.50 x 5MM

$

$

Currently unavailable

12

Briggs & Stratton 43182

LOCK WASHER-M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66821

RECEPTACLE, BATTERY CHARGE
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66822

RETAINER, RECEPTACLE
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75494

SCR.-SELF TAPPING-NO.10-24

$

$

Not available

16

Briggs & Stratton 75207B

BREAKER, CIRCUIT-10AMP
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207

BREAKER, CIRCUIT-20AMP
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75935

COVER, BACK PANEL

$

$

Currently unavailable

19

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCKWASHER - No.8

$

$

Not available

21

Briggs & Stratton 76248

OUTLET (DUPLEX) 120v

$

$

Currently unavailable

22

Briggs & Stratton 23365

WASHER, SHAKE-PROOF -No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 29084

DECAL - USDA

$

$

Currently unavailable

24

Briggs & Stratton 75934A

PANEL ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 75923A

DECAL - PANEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 63036

SCREW - No. 8-32 X 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66817

SWITCH (with A-C ON LAMP)
(Superseded to 66817GS)

Note: Contact Generac for quantity required

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36917

SCREW, PAN HD. - No. 8-32 X 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 77816

DECAL - CAUTION HOT!
(Superseded to 77816GS)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 76223

MANUAL
(Superseded to 76223GS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0
