580.327040 (9084-0) - Craftsman 2,400 Watt Portable Generator Generator Parts Diagram

2,400 Watt Portable Generator

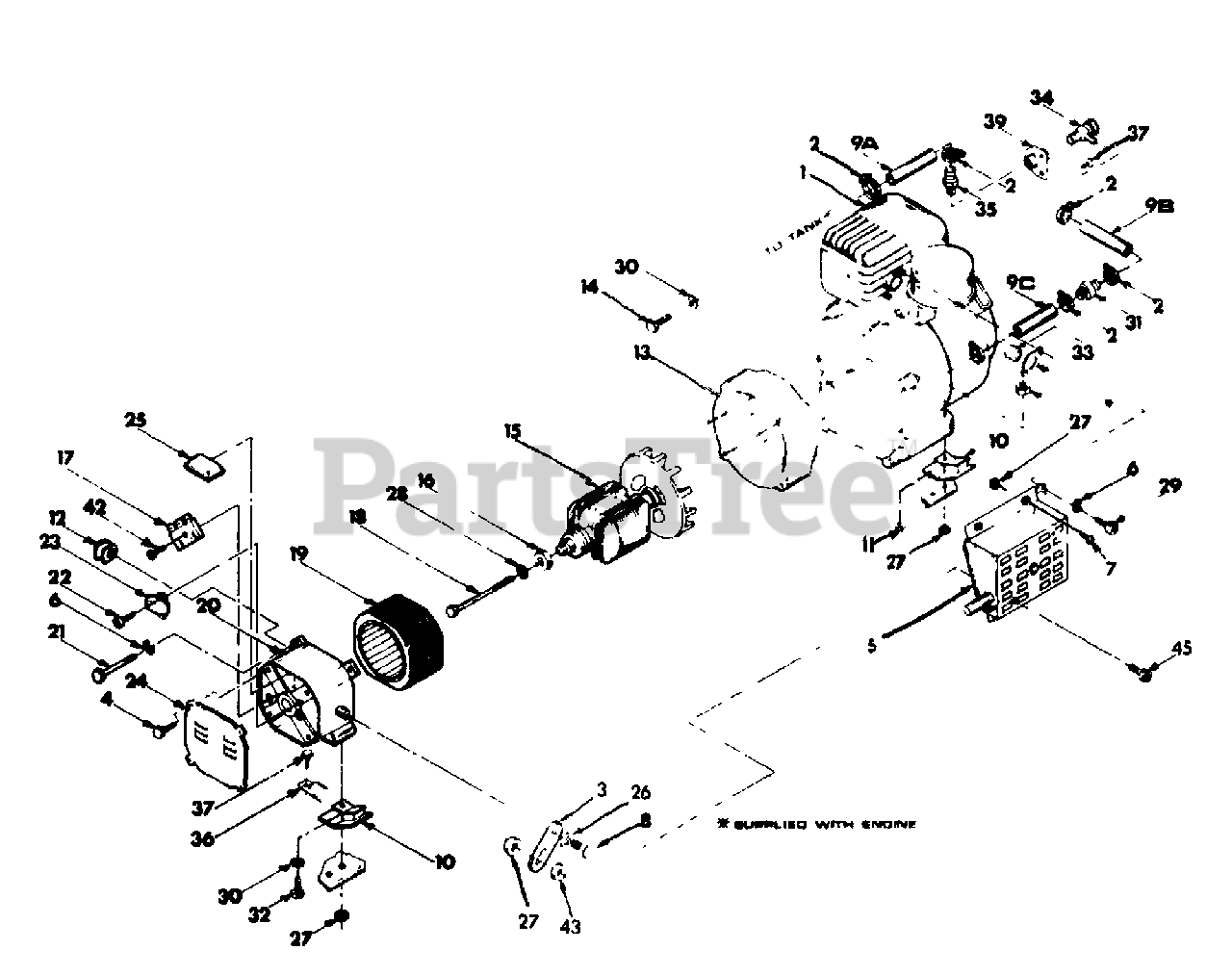

Generator Parts Diagram

  • Title

1

Briggs & Stratton 72271

ENGINE-BRIGGS & STRATTON 5HP.

$

$

Currently unavailable

2

Briggs & Stratton 48031C

CLAMP, FUEL LINE

$

$

Not available

3

Briggs & Stratton 75448

BRACKET, EXHAUST MUFFLER
(Superseded to 7075448YP)

$34.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 74908

SCREW (TAPTITE)-M5-0.80 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72083

MUFFLER, EXHAUST

$

$

Not available

6

Briggs & Stratton 22097

LOCK WASHER-1/4
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 40976

CPSW-M8-1.25 x 20

$

$

Not available

8

Briggs & Stratton 51755

CAPSCR., HEX HD.-1.50 x 16MM

Note: Contact Generac for quantity required

$

$

Currently unavailable

9A

Briggs & Stratton 47662V

HOSE-FUEL-13-1/4" LONG

$

$

Currently unavailable

9B

Briggs & Stratton 47662A

HOSE-FUEL-11" LONG

$

$

Not available

9C

Briggs & Stratton 47662B

HOSE-FUEL-3" LONG

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, VIBRATION
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 76222

SCR.-M8-1.25 x 35MM
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022

GROMMET, LEAD OUTLET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365F

HOUSING, ENGINE ADAPTOR
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22336

CAPSCR. HEX HD.-5/16"-24 x 3/4"

$

$

Not available

15

Briggs & Stratton 74713

ROTOR ASSEMBLY

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, ROTOR
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 65795

RECTIFIER, BATTERY CHARGE
(Superseded to 65795GS)

$

$

Not available

18

Briggs & Stratton 24420

BOLT, ROTOR-5/16"-24 x 6.25MM

$

$

Not available

19

Briggs & Stratton 74706

STATOR ASSEMBLY
(Superseded to 5020884SM)

$25.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

21

Briggs & Stratton 66449C

BOLT, STATOR-M6-1.00 x 80MM

$

$

Currently unavailable

22

Briggs & Stratton 66849

SCR. (TAPTITE)-M5-0.80 x 16MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 66386

HOLDER, BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 75930

COVER, BEARING CARRIER

$

$

Currently unavailable

25

Briggs & Stratton 66850

BOARD, CIRCUIT BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 46526

LOCK WASHER-M10

$

$

Not available

27

Briggs & Stratton 52858

NUT, HEX FLANGE-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 67451

FLAT WASHER (SPECIAL)-M8

$

$

Currently unavailable

29

Briggs & Stratton 36781

CAPSCR., SOCKET HD.-1/4"-20 x 3/4"

$

$

Currently unavailable

30

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 68740

FUEL FILTER
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 70644

SCR. PAN HD.-M8-1.25 x 20MM
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 60211

LINER, PORT

$

$

Currently unavailable

34

Briggs & Stratton 71384

VALVE, FUEL SHUT-OFF

$

$

Not available

35

Briggs & Stratton 28414

FITTING, BARBED-1/4"

$

$

Currently unavailable

36

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

37

Briggs & Stratton 24489

SCR. (TAPTITE)-NO. 10-32 x 3/8"

$

$

Currently unavailable

39

Briggs & Stratton 75939

BRACKET, FUEL VALVE

$

$

Currently unavailable

41

Briggs & Stratton 73054

DECAL, FUEL SHUT-OFF

$

$

Not available

42

Briggs & Stratton 66849A

SCR. (TAPTITE)-M5-0.80 x 20MM
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22625C

SPACER

$

$

Currently unavailable

44

Briggs & Stratton 76223

MANUAL, OWNER'S
(Superseded to 76223GS)

$14.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 49821

CAPSCR., HEX HD.-M8-1.25 x 30

$

$

Not available
