580.327050 (9085-0) - Craftsman 4,000 Watt Portable Generator Repair Parts - Cradle Parts Diagram

4,000 Watt Portable Generator

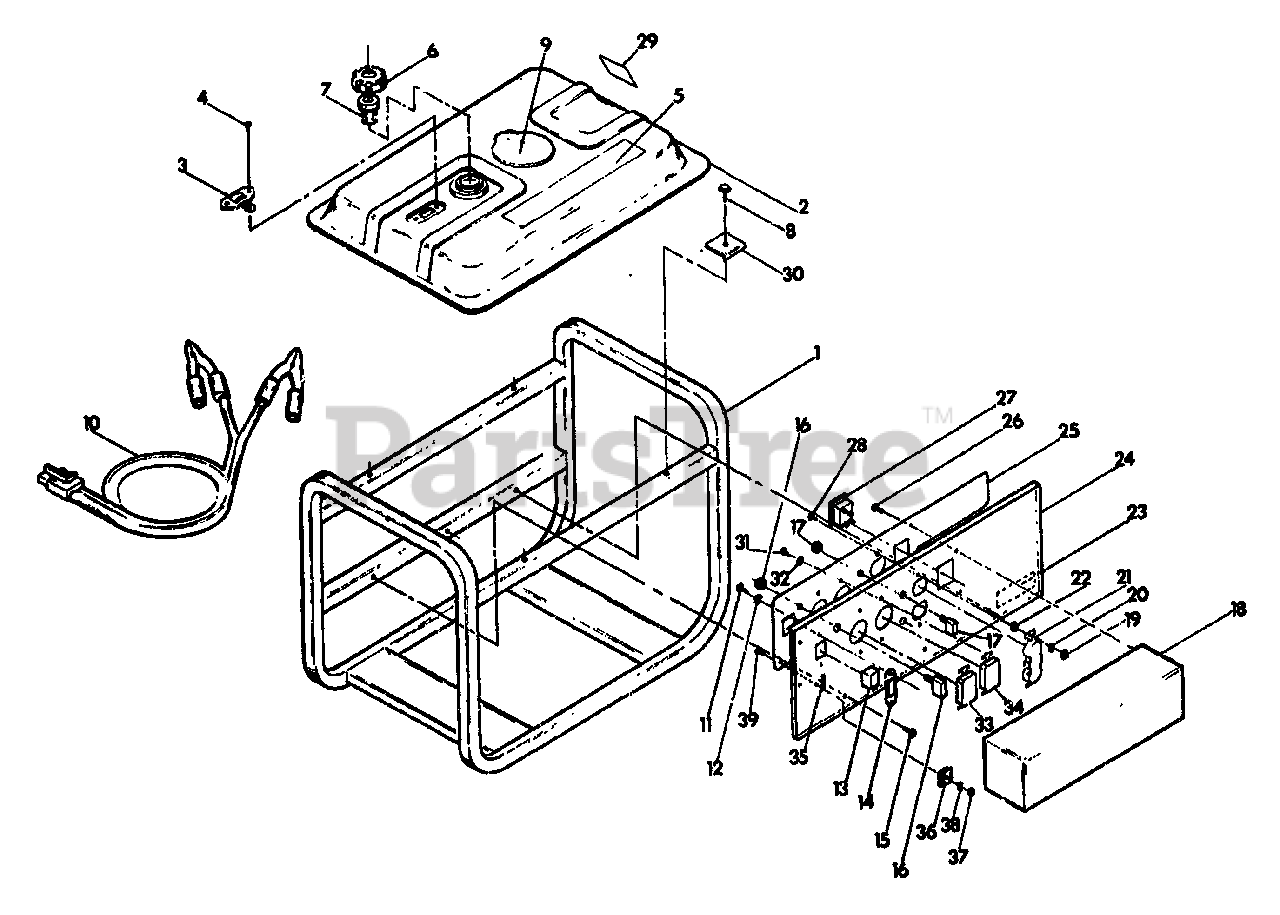

Repair Parts - Cradle Parts Diagram

  • Title

1

Briggs & Stratton 75932

CRADLE ASSY

$

$

Currently unavailable

2

Briggs & Stratton 73715

TANK, Fuel
(Superseded to 7073715YP)

$

$

Not available

3

Briggs & Stratton 66391B

GAUGE, Fuel Level

$

$

Not available

4

Briggs & Stratton 52749

SCREW, Pan Head Machine- M5-0.80 x 12mm

$

$

Currently unavailable

5

Briggs & Stratton 70365

DECAL- Portable information

$

$

Currently unavailable

6

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

7

Briggs & Stratton 70630

STRAINER, Fuel Tank Filler

$

$

Currently unavailable

8

Briggs & Stratton 56892

SCREW (Crimptite)- No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65787

CABLE, Battery Charge

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 70728

SCREW, Pan Head Machine- M3-0.50 x 5mm

$

$

Currently unavailable

12

Briggs & Stratton 43182

LOCKWASHER- M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66821

RECEPTACLE, Battery Charge
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66822

RETAINER, Receptacle
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75494

SCREW, Self Drilling

$

$

Not available

16

Briggs & Stratton 75207B

BREAKER, Circuit - 10 amp
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207

BREAKER, Circuit- 20 amp
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75937

COVER, Back Panel

$

$

Not available

19

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCKWASHER- No. 8

$

$

Not available

21

Briggs & Stratton 68759

RECEPTACLE, Duplex Type (NEMA 5-20R)
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 23365

LOCKWASHER (Shakeproof)- No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 29084

DECAL- USDA Approval

$

$

Currently unavailable

24

Briggs & Stratton 75936

PANEL, Receptacle

$

$

Currently unavailable

25

Briggs & Stratton 75924

DECAL- Receptacle Panel

$

$

Currently unavailable

26

Briggs & Stratton 63036

SCREW (Crimptite)- No. 8-32 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66817

SWITCH (with a-c on Lamp)
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36917

SCREW, Pan Head Machine- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 73054

DECAL- Fuel Shutoff

$

$

Not available

30

Briggs & Stratton 76221

CLIP, Fuel Tank

$

$

Not available

31

Briggs & Stratton 36901

SCREW, Pan Head Machine- No. 6-32 x 3/8"

$

$

Currently unavailable

32

Briggs & Stratton 22155

LOCKWASHER- No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 68867

RECEPTACLE- 120/240 Volts (NEMA L14-20R)
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp (NEMA L5-30R)
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 27565

TAPE, Electrical- 38" long

$

$

Currently unavailable

36

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

37

Briggs & Stratton 22158

NUT, Hex - No. 8-32
(Superseded to 5022158)

$30.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 22152

LOCKWASHER- No. 8
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 36935

SCREW, Pan Head Machine- No. 8-32 x 3/4"

$

$

Not available

Briggs & Stratton 37806

PLUG, Connector (NEMA L5-30P)- 120 volts, 30 amp
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector (NEMA L14-20P)- 120/240 volts
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
