580.327050 (9085-0) - Craftsman 4,000 Watt Portable Generator Repair Parts - Generator Parts Diagram

4,000 Watt Portable Generator

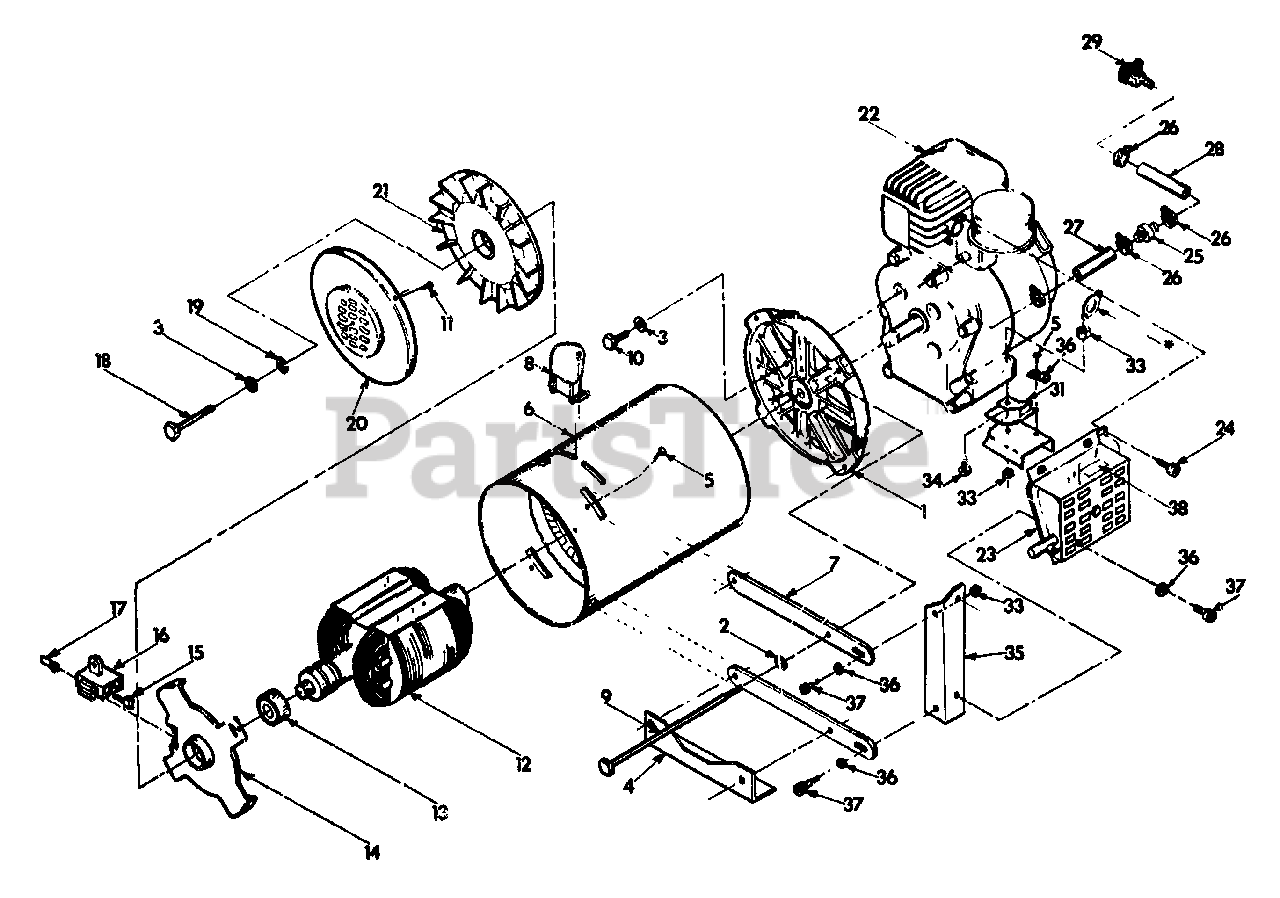

Repair Parts - Generator Parts Diagram

  • Title

1

Briggs & Stratton 60220F

HOUSING, Adapter

$

$

Currently unavailable

2

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

LOCKWASHER- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 70634

SUPPORT, Rear Generator

$

$

Currently unavailable

5

Briggs & Stratton 24489

CREW (Taptite)- No. 10-32 x 3/8"

$

$

Currently unavailable

6

Briggs & Stratton 75948

STATOR ASSY

$

$

Currently unavailable

7

Briggs & Stratton 75950

BAR, Stator Bolt

$

$

Currently unavailable

8

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

9

Briggs & Stratton 44395H

BOLT, Stator

$

$

Currently unavailable

10

Briggs & Stratton 22336

SCREW- 5/16" 24 x 3/4"

$

$

Not available

11

Briggs & Stratton 46852

SCREW (Taptite)- No. 10-32 x 1/4"

$

$

Not available

12

Briggs & Stratton 68397A

ROTOR ASSY

$

$

Currently unavailable

13

Briggs & Stratton 24049

BEARING, Rotor

$

$

Not available

14

Briggs & Stratton 44943

CARRIER, Bearing

$

$

Currently unavailable

15

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 25105

SCREW- No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 28092

BOLT, Rotor- 5/16"-24 x 9-1/4" long
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 50190

WASHER, Fan Retaining
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 75941

COVER, Fan

$

$

Currently unavailable

21

Briggs & Stratton 44331

FAN, Cooling

$

$

Not available

22

Briggs & Stratton 72269

ENGINE ASSY-8 H.P. Tecumseh
(Superseded to 7072269YP)

$61.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 72084

MUFFLER ASSY

$

$

Currently unavailable

24

Briggs & Stratton 23483

CAPSCREW, Socket Head- 5/16"-18 x 3/4"
(Superseded to 5023483)

$55.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 48031C

CLAMP, Hose

$

$

Not available

27

Briggs & Stratton 47662B

HOSE- 1/4" ID x 3" long

$

$

Not available

28

Briggs & Stratton 47662BA

HOSE- 1/4" ID X 7" long

$

$

Currently unavailable

29

Briggs & Stratton 75938

VALVE, Fuel Shutoff

$

$

Currently unavailable

30

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

31

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 70644

SCREW, Pan Head Machine- M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

NUT, Flanged- M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 76222

SCREW, Pan Head Machine- M8-1.25 x 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 75949

SUPPORT, Muffler
(Superseded to 75949GS)

$34.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 22145

FLATWASHER- M8

$

$

Not available

37

Briggs & Stratton 52829

CAPSCREW, Socket Head- M8-1.25 x 14mm
(Superseded to 52829GS)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68824

DECAL- Caution!- Hot!

$

$

Currently unavailable

Briggs & Stratton 76226

MANUAL, Owner's
(Superseded to 76226GS)

$14.99

$

Usually ships in 2-12 days

0
