580.327051 (9085-1) - Craftsman 4,000 Watt Portable Generator Repair Parts - A-C Generator No. 77813 Parts Diagram

4,000 Watt Portable Generator

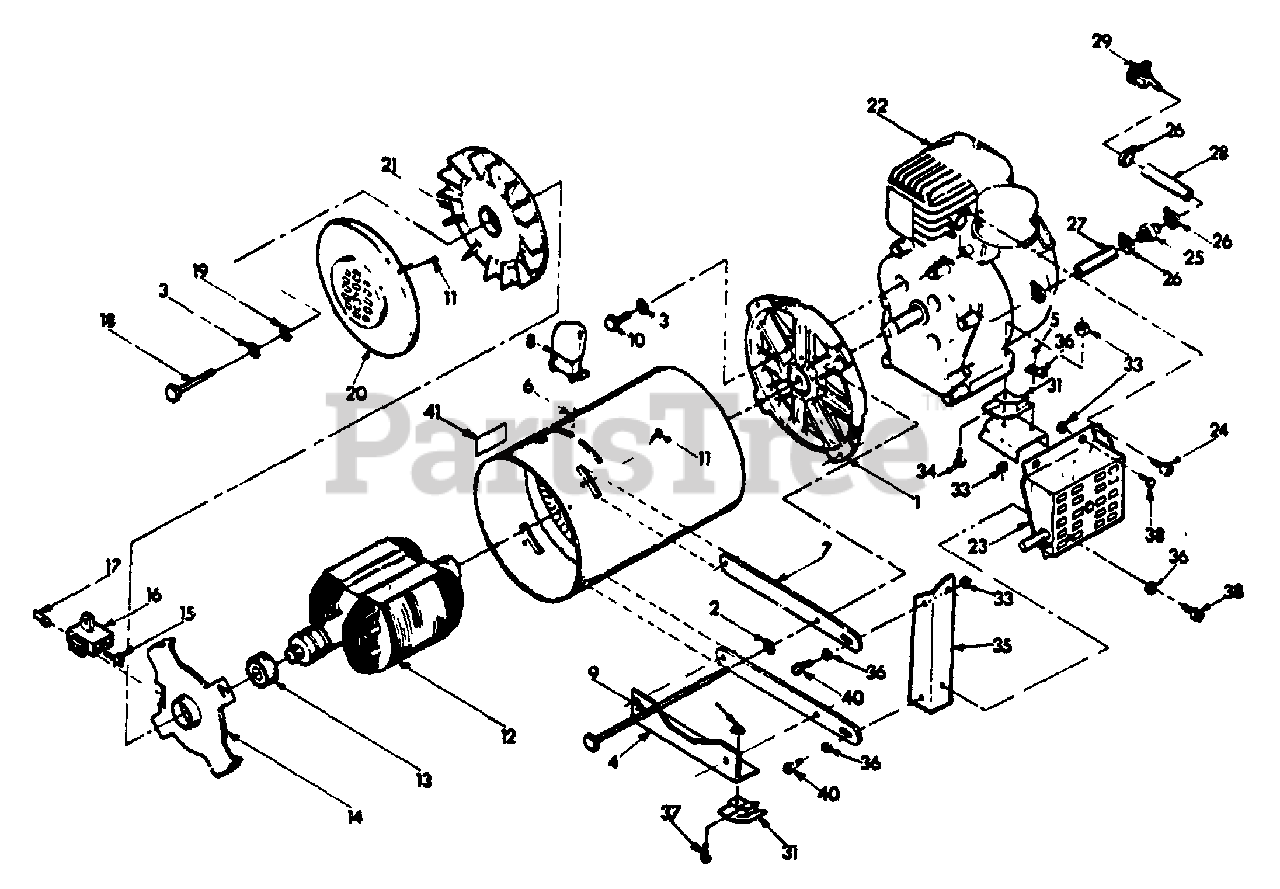

Repair Parts - A-C Generator No. 77813 Parts Diagram

  • Title

1

Briggs & Stratton 60220F

HOUSING, ADAPTOR

$

$

Currently unavailable

2

Briggs & Stratton 22097

LOCK WASHER - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

LOCK WASHER - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 70634

SUPPORT, REAR GENERATOR

$

$

Currently unavailable

5

UNKNOWN

$

$

Not available

6

Briggs & Stratton 75948

STATOR ASSEMBLY

$

$

Currently unavailable

7

Briggs & Stratton 75950

BAR, STATOR BOLT

$

$

Currently unavailable

8

Briggs & Stratton 28293

RECTIFIER, BRIDGE

$

$

Currently unavailable

9

Briggs & Stratton 44935H

BOLT, STATOR

$

$

Currently unavailable

10

Briggs & Stratton 22336

SCREW - 5/16"-24 x 3/4"

$

$

Not available

11

Briggs & Stratton 46852

SCREW (TAPTITE) - No. 10-32 x 1/4"

$

$

Not available

12

Briggs & Stratton 68397

ROTOR ASSEMBLY

$

$

Not available

13

Briggs & Stratton 24049

BEARING, ROTOR

$

$

Not available

14

Briggs & Stratton 44943

CARRIER, BEARING

$

$

Currently unavailable

15

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23877D

HOLDER, BRUSH
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 25105

SCREW, No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 28092

BOLT, ROTOR - 5/16" x 9-1/4" LONG
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 50190

WASHER, FAN-RETAINING
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 76248

COVER, FAN

$

$

Currently unavailable

21

Briggs & Stratton 44331

FAN, COOLING

$

$

Not available

22

Briggs & Stratton 72269

ENGINE ASSEMBLY - 8 HP. TECUMSEH
(Superseded to 7072269YP)

$61.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 72084

MUFFLER ASSEMBLY

$

$

Currently unavailable

24

Briggs & Stratton 60706

CAPSCREW, S.HD. - 5/16"-18 x 3/4"

$

$

Currently unavailable

25

Briggs & Stratton 68740

FUEL FILTER
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 48031C

CLAMP, HOSE

$

$

Not available

27

Briggs & Stratton 47622B

HOSE - 1/4" ID x 3" LONG

$

$

Currently unavailable

28

Briggs & Stratton 47662BA

HOSE - 1/4" ID x 7" LONG

$

$

Currently unavailable

29

Briggs & Stratton 75938

VALVE, FUEL SHUTOFF

$

$

Currently unavailable

30

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

31

Briggs & Stratton 70642

MOUNT, VIBRATION
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 70644

SCREW, PAN HD. - M8-1.25 X 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

NUT, FLANGED - M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 76222

SCREW, PAN HD. - M8-1.25 X 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 75949

SUPPORT, MUFFLER
(Superseded to 75949GS)

$34.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 22145

FLAT WASHER - M8

$

$

Not available

37

Briggs & Stratton 70644

SCREW, PAN HD. - M8-1.25 X 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 40976

CAPSCR. - M8-1.25 x 20mm

$

$

Not available

39

Briggs & Stratton 52829

CAPSCR. - SOCKET HD. - M8
(Superseded to 52829GS)

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 39253

CAPSCR., HEX HED. - M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 77026

DECAL, NAMEPLATE

$

$

Currently unavailable

Briggs & Stratton 77803

MANUAL, OWNER'S
(Superseded to 77803GS)

$14.99

$

Usually ships in 2-12 days

0
