580.327052 (9085-2) - Craftsman 4,000 Watt Portable Generator Repair Parts - Cradle No. 77830 Parts Diagram

4,000 Watt Portable Generator

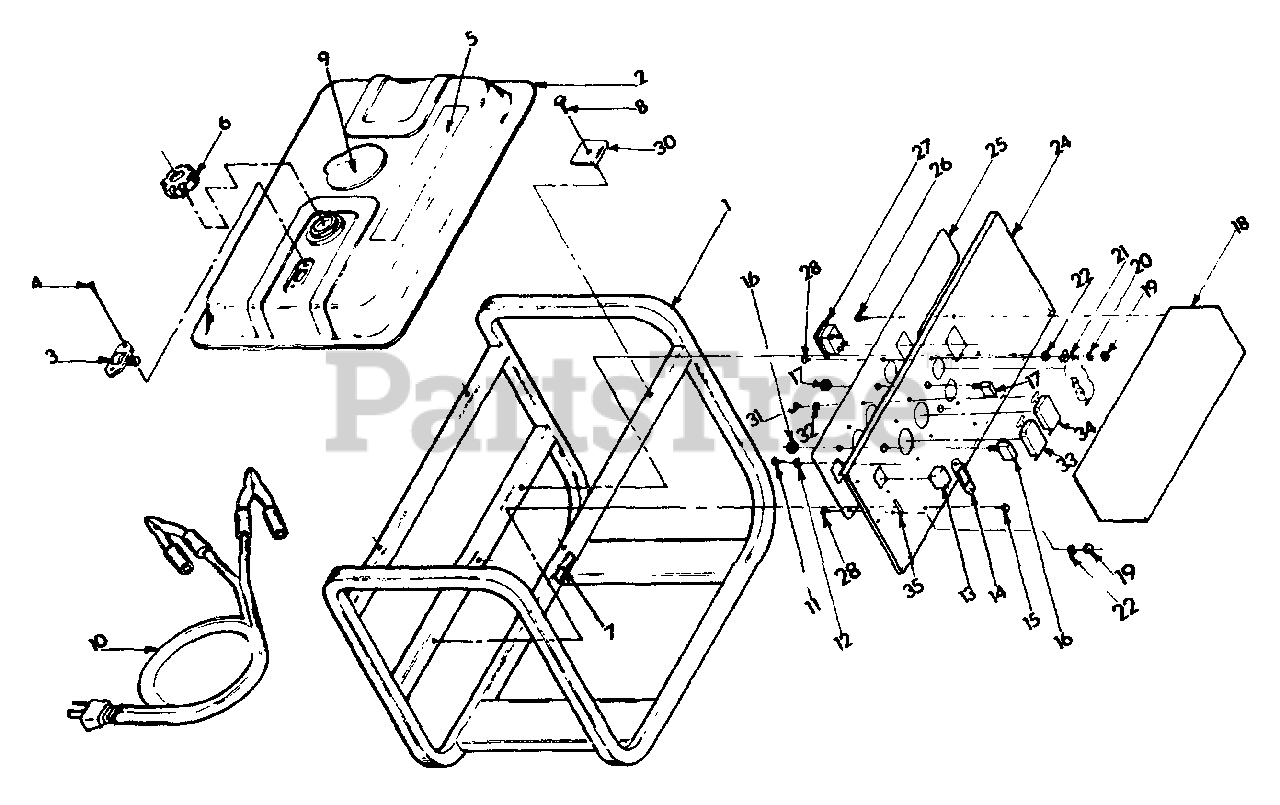

Repair Parts - Cradle No. 77830 Parts Diagram

  • Title

1

Briggs & Stratton 75932

CRADLE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 73715

TANK, FUEL
(Superseded to 7073715YP)

$

$

Not available

3

Briggs & Stratton 66391B

GAUGE, FUEL LEVEL

$

$

Not available

4

Briggs & Stratton 52749

SCREW, PAN HEAD MACHINE-M5-0.80 x 12MM

$

$

Currently unavailable

5

Briggs & Stratton 70365

DECAL-PORTABLE INFORMATION

$

$

Currently unavailable

6

Briggs & Stratton 69658

CAP, FUEL TANK

$

$

Currently unavailable

7

Briggs & Stratton 66824

DECAL, CAUTION-HOT

$

$

Currently unavailable

8

Briggs & Stratton 56893

CRIMPTITE-10-24 x 1/2" LONG
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 70728

SCREW, PAN HD. MACHINE-M3-0.50 x 5MM

$

$

Currently unavailable

12

Briggs & Stratton 43182

LOCK WASHER-M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66821

RECEPTACLE, BATTERY CHARGE
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66822

RETAINER, RECEPTACLE
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75494

SCREW, SELF DRILLING

$

$

Not available

16

Briggs & Stratton 75207B

BREAKER, CIRCUIT-10AMP
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207

BREAKER, CIRCUIT-20AMP
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75937

COVER, BACK PANEL

$

$

Not available

19

Briggs & Stratton 22471

NUT, HEX -NO.8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCK WASHER-NO. 8

$

$

Not available

21

Briggs & Stratton 68759

RECEPTACLE, DUPLEX TYPE (NEMA 5-20R)
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 23365

LOCK WASHER-(SHAKE-PROOF)-NO.8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 75936

PANEL, RECEPTACLE

$

$

Currently unavailable

25

Briggs & Stratton 75924

DECAL-RECEPTACLE PANEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 63036

SCREW (CRIMPTITE)-NO.8-32 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66817

SWITCH, (WITH AC ON LAMP)
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36917

SCREW, PAN HD. MACH.-NO.8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 76221

CLIP, FUEL TANK

$

$

Not available

31

Briggs & Stratton 36901

SCREW, PAN HD. MACH.-NO.6-32 x 3/8"

$

$

Currently unavailable

32

Briggs & Stratton 22155

LOCK WASHER-NO.6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 68867

RECEPTACLE-120/240 VOLTS (NEMA L14-20R)
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 68868

RECEPTACLE-120 VOLTS, 30AMP (NEMA L5-30R)
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 27565

TAPE, ELECTRICAL-38" LONG

$

$

Currently unavailable

37

Briggs & Stratton 22158

NUT, HEX-NO. 8-32
(Superseded to 5022158)

$30.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 22152

LOCK WASHER-NO.8
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 36935

SCREW, PAN HD. MACHINE-NO. 8-32 x 3/4"

$

$

Not available

Briggs & Stratton 37806

PLUG, CONNECTOR (NEMA L5 30P)-120 VOLTS, 30AMPS
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, CONNECTOR (NEMA L14-20P)-120/240 VOLTS
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
