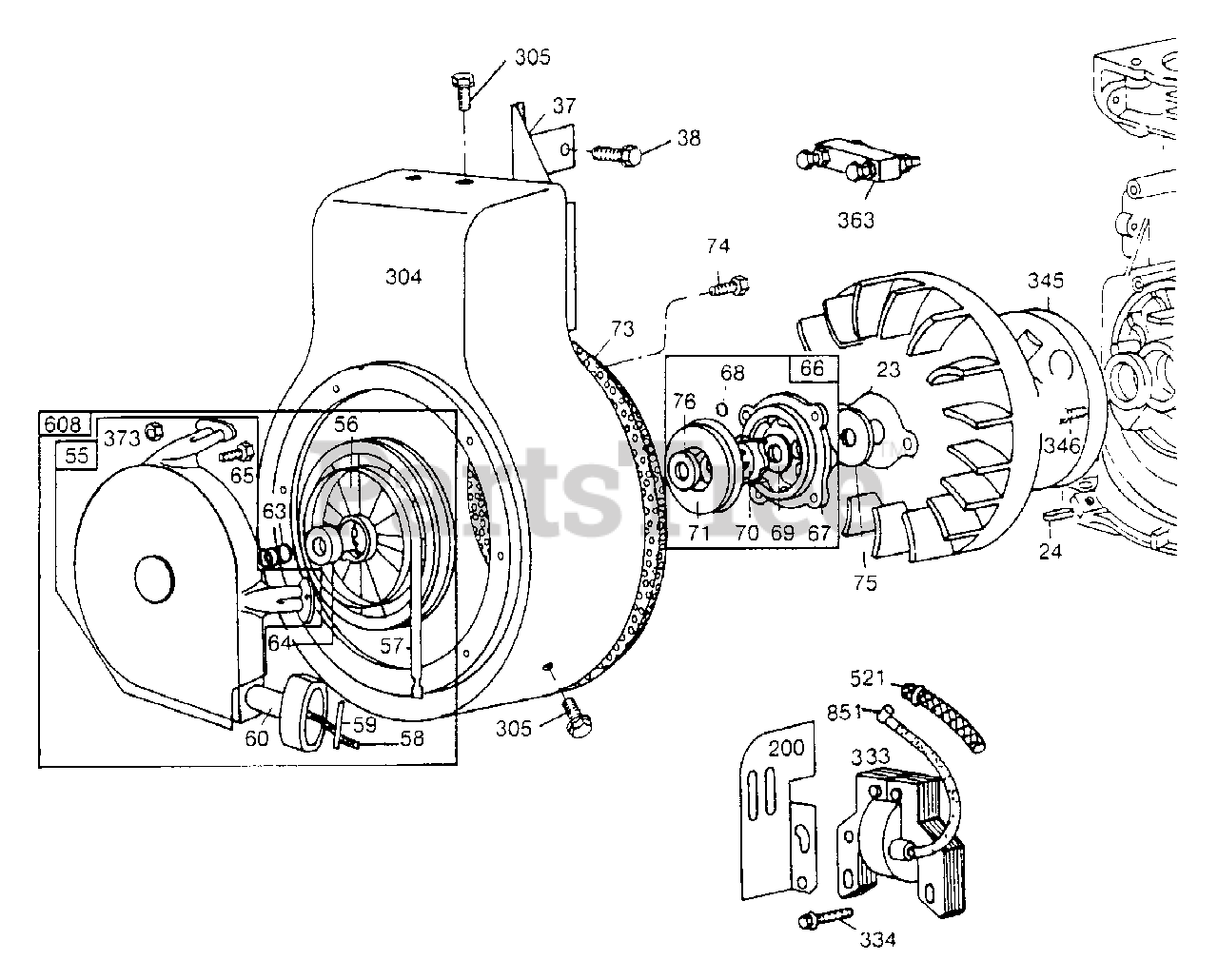

580.327054 (9085-4) - Craftsman 4,000 Watt Portable Generator 4-Cycle Engine Starter (10/95) Parts Diagram

4,000 Watt Portable Generator

4-Cycle Engine Starter (10/95) Parts Diagram

  • Title

23

Briggs & Stratton 298260

Magneto Flywheel

$

$

Not available

24

Briggs & Stratton 61760

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222475

Flywheel Guard
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 93777

Screw - Sem
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 399576

Rewind Starting Housing

$

$

Currently unavailable

56

Briggs & Stratton 295871

Rewind Starter Pulley

Note: (Includes 63" rope. If longer rope is needed, order rope No. 66984 and cut to length.)

$14.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 294003

Rewind Starter Spring

$

$

Currently unavailable

58

Briggs & Stratton 66884

Rewind Starter Rope - 63" long
(Superseded to 692188)

Note: (If longer rope is needed, order rope No. 66984 and cut to length.)

$8.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 230228

Starter Grip Pin
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Starter Grip
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Ratchet Spring
(Superseded to 690547)

$8.49

$

In Stock, only 4 left!

0

64

Briggs & Stratton 230543

Ratchet Spring Adaptor
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 93067

Housing Mounting Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298798

Clutch Assembly
(Superseded to 399671)

$34.99

$

In Stock, Qty 12

0

67

Briggs & Stratton 212132

Starter Clutch Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Clutch Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66718

Starter Clutch Thrust Washer
(Superseded to 690271)

$8.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Rewind Starter Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Clutch Retainer Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221796

Rewind Starter Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Sem Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Spring Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Ratchet Sealing Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Air Guide
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299853

Blower Housing
(Superseded to 491596)

$

$

Not available

305

Briggs & Stratton 93158

Blower Housing Mounting Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Armature Mounting Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

345

-----

UNKNOWN

$

$

Not available

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19165

Flywheel Puller

$25.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Hex Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

521

Briggs & Stratton 298529

Ignition Cable Shielding

$33.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 390391

Rewind Starter Assembly
(Superseded to 693900)

$131.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 221798

Ignition Cable Terminal
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

851

Briggs & Stratton 230655

Exhaust Valve Guide

Note: See Repair Manual

$12.99

$

In Stock, only 2 left!

0
