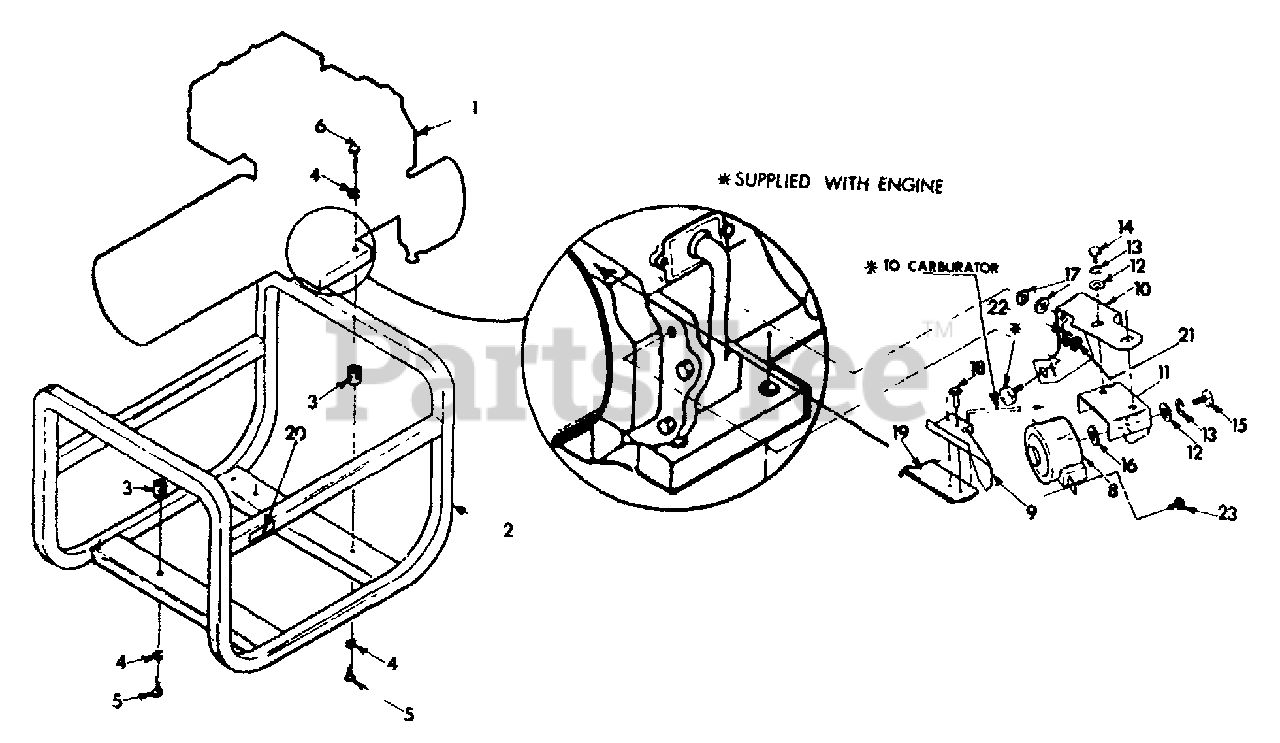

580.327060 (9086-0) - Craftsman 4,000 Watt Portable Generator Cradle - A-C Generator No. 70442 Parts Diagram

4,000 Watt Portable Generator

Cradle - A-C Generator No. 70442 Parts Diagram

  • Title

1

Briggs & Stratton 76236

ENGINE-TECUMSEH 8HP.

$

$

Currently unavailable

2

Briggs & Stratton 75933

CRADLE, SEARS 4000

$

$

Currently unavailable

3

Briggs & Stratton 44624

MOUNT, RUBBER

$

$

Not available

4

Briggs & Stratton 22129

LOCK WASHER-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 36223

CAPSCREW, HEX HEAD-5/16"-18 x 3/4"

$

$

Currently unavailable

6

Briggs & Stratton 33212

CAPSCREW, HEX HEAD-5/16"-18 x 1-1/4" LONG

$

$

Not available

8

Briggs & Stratton 76220

IDLE CONTROL COIL

$

$

Not available

9

Briggs & Stratton 70434

LEVER, I/C THROTTLE

$

$

Currently unavailable

10

Briggs & Stratton 70433

BRACKET, COIL TO ENGINE

$

$

Currently unavailable

11

Briggs & Stratton 70432

BRACKET, I/C COIL

$

$

Currently unavailable

12

Briggs & Stratton 38150

FLAT WASHER-#8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

LOCK WASHER-#8

$

$

Not available

14

Briggs & Stratton 51718

CAPSCREW, HEX HD.-M4-0.70 x 10

$

$

Not available

15

Briggs & Stratton 22153

MACHINE SCREW, ROUND HEAD-#8-32 x 1/2"
(Superseded to 5022153)

$5.99

$

Usually ships in 2-12 days

0

16

22473

FLAT WASHER-#10

$

$

Not available

17

Briggs & Stratton 23897

FLAT WASHER-#10
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 36261

POP RIVET, STAINLESS STEEL 1/8" x .23

$

$

Not available

19

Briggs & Stratton 70446

GOVERNOR LEVER

$

$

Currently unavailable

20

Briggs & Stratton 77816

DECAL, CAUTION HOT
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 50923

MACH. SCR., PP HD. #10-24 x 5/8"

$

$

Currently unavailable

22

Briggs & Stratton 22152

LOCK WASHER, NO. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25105

SCR, ROUND HD.-MACH. WITH LOCK WASHER #6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0
