580.327060 (9086-0) - Craftsman 4,000 Watt Portable Generator Generator No 70441 Parts Diagram

4,000 Watt Portable Generator

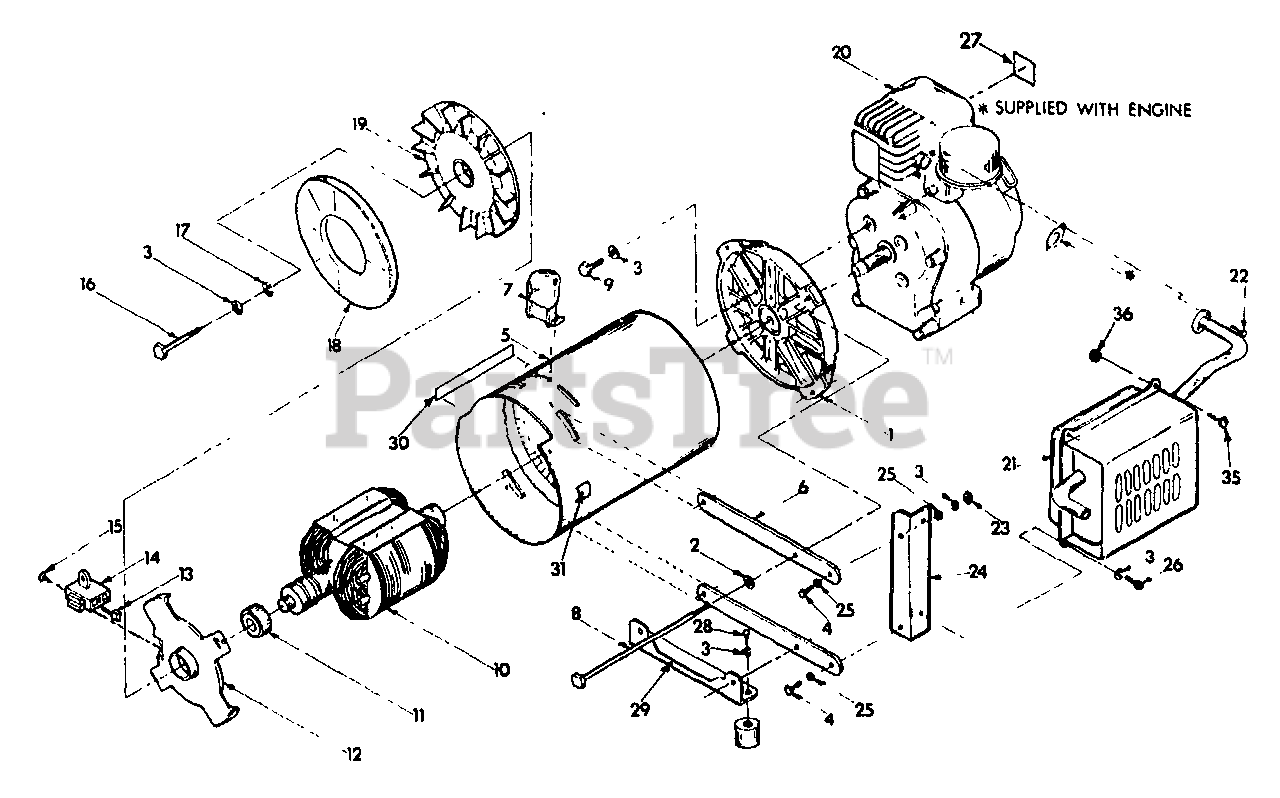

Generator No 70441 Parts Diagram

  • Title

1

Briggs & Stratton 60220F

HOUSING, ADAPTOR

$

$

Currently unavailable

2

Briggs & Stratton 22097

LOCK WASHER-1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

LOCK WASHER-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 43107

CAPSCREW, HEX HEAD-M81.25 x 25 LONG
(Superseded to 43107GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 76256

STATOR ASSEMBLY
(Superseded to 76256GS)

$727.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75950

BAR, STATOR BOLT

$

$

Currently unavailable

7

Briggs & Stratton 28293

RECTIFIER, BRIDGE

$

$

Currently unavailable

8

Briggs & Stratton 44395H

BOLT, STATOR

$

$

Currently unavailable

9

Briggs & Stratton 22336

SCREW, 5/16"-24 x 3/4"

$

$

Not available

10

Briggs & Stratton 68397A

ROTOR ASSEMBLY

$

$

Currently unavailable

11

Briggs & Stratton 24049

BEARING, ROTOR

$

$

Not available

12

Briggs & Stratton 44943

CARRIER, BEARING

$

$

Currently unavailable

13

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23877D

HOLDER, BRUSH
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 25105

SCREW, NO.6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 28092

BOLT, ROTOR-5/16"-24 x 9.25"
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 50190

WASHER, FAN RETAINING
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 44357

COVER, FAN
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 44331

FAN, COOLING

$

$

Not available

20

Briggs & Stratton 76236

ENGINE, 8HP. TECUMSEH

$

$

Currently unavailable

21

Briggs & Stratton 72084

MUFFLER ASSEMBLY

$

$

Currently unavailable

22

Briggs & Stratton 60706

CAPSCREW, SOCKET HEAD-5/16"-18 x 3/4" LONG

$

$

Currently unavailable

23

Briggs & Stratton 52858

NUT, LOCKING FLANGE-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 76299

SUPPORT, MUFFLER

$

$

Currently unavailable

25

Briggs & Stratton 22145

FLAT WASHER, M8

$

$

Not available

26

Briggs & Stratton 40976

CAPSCREW, SOCKET HEAD-M8-1.25 x 20MM

$

$

Not available

27

Briggs & Stratton 77819

DECAL-START/STOP

$

$

Currently unavailable

28

Briggs & Stratton 36223

CAPSCREW, HEX HEAD-5/16"-18 x 1/2" LONG

$

$

Currently unavailable

29

Briggs & Stratton 70634

SUPPORT, REAR ALTERNATOR

$

$

Currently unavailable

Briggs & Stratton 70438

MANUAL, OWNER'S

$

$

Currently unavailable

30

Briggs & Stratton 75940

DECAL, SEARS
(Superseded to 7075940YP)

$26.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 67210A

DECAL, GROUND
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52829

CAPSCREW, SOCKET HEAD-M8-1.25 x 14MM
(Superseded to 52829GS)

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 52858

NUT, LOCKING FLANGE-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0
