580.327070 (9784-0) - Craftsman 8,000 Watt Portable Generator Generator Parts Diagram

8,000 Watt Portable Generator

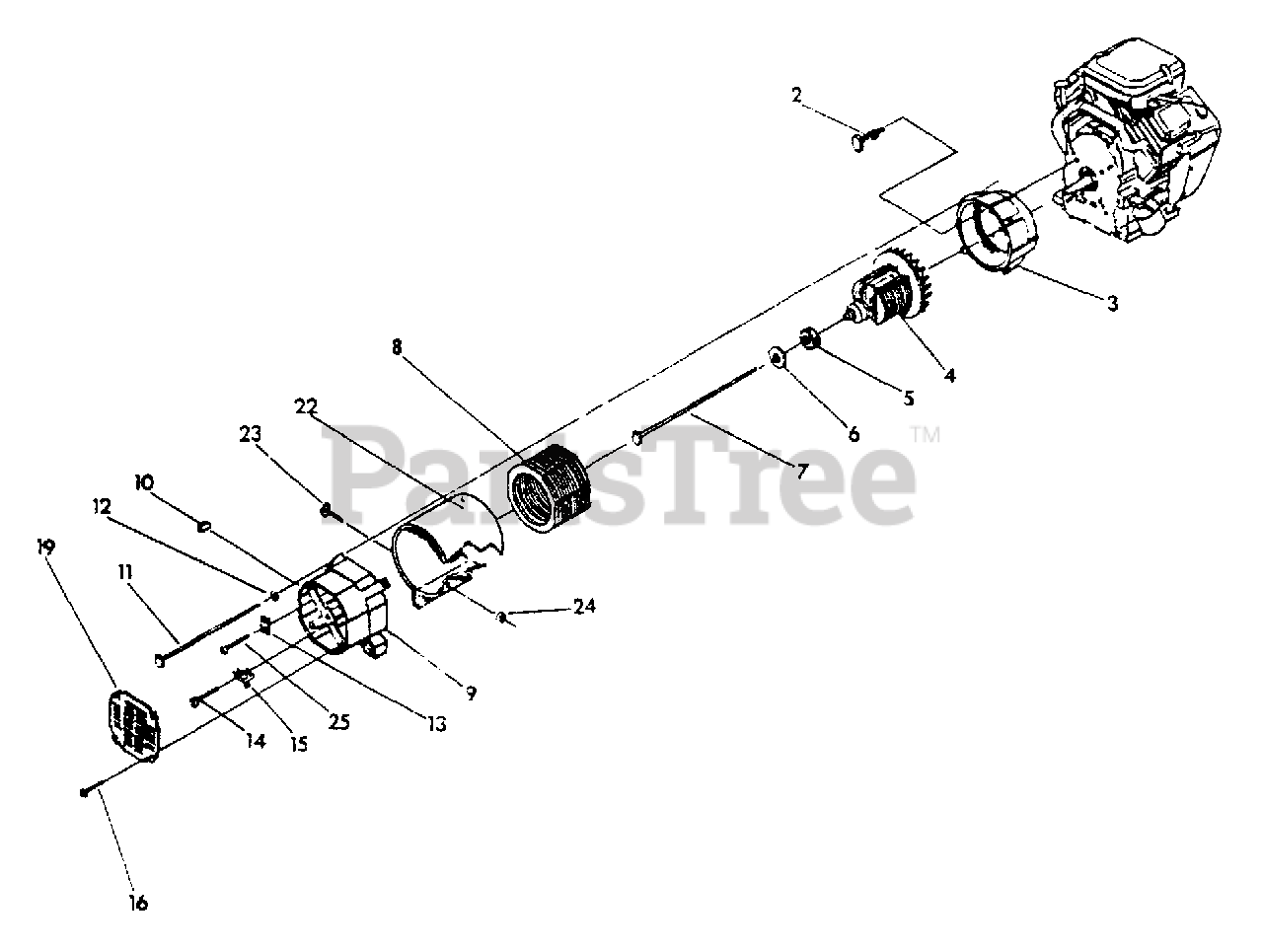

Generator Parts Diagram

  • Title

2

Briggs & Stratton 86307

5/16"-24 x 3/4" HEX HEAD CAPSCREW
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 66365G

ENGINE ADAPTOR HOUSING
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92553

ROTOR ASSEMBLY

$

$

Currently unavailable

5

Briggs & Stratton 65791

BALL BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

FLAT WASHER

Note: (SPECIAL)

$

$

Currently unavailable

7

Briggs & Stratton 51810

5/16"-24 x 11" ROTOR BOLT
(Superseded to 51810GS)

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 92350

STATOR ASSEMBLY

$

$

Currently unavailable

9

Briggs & Stratton 66825B

REAR BEARING CARRIER

$

$

Currently unavailable

10

Briggs & Stratton 67022

BEARING CARRIER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66449K

M6-1.0 X 200mm STATOR BOLT
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097

M6 LOCK WASHER
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

14

Briggs & Stratton 66849

M5-0.8 X 16mm TAPTITE SCREW
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 80812

BRUSH HOLDER ASSEMBLY

$

$

Currently unavailable

16

Briggs & Stratton 74908

M5-0.8 X 10mm SCREW
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 78388

REAR BEARING CARRIER PANEL
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 81887D

ALTERNATOR WRAPPER

$

$

Not available

23

Briggs & Stratton 52618

M5-0.8 X 12MM HEX HEAD SCREW
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 52856

M5-0.8 LOCKING NUT
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66849A

M5-0.8 X 20mm TAPTITE SCREW
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0
