580.327071 (9162-1) - Craftsman 8,000 Watt Portable Generator Cradle Repair Parts No. 78823 Parts Diagram

8,000 Watt Portable Generator

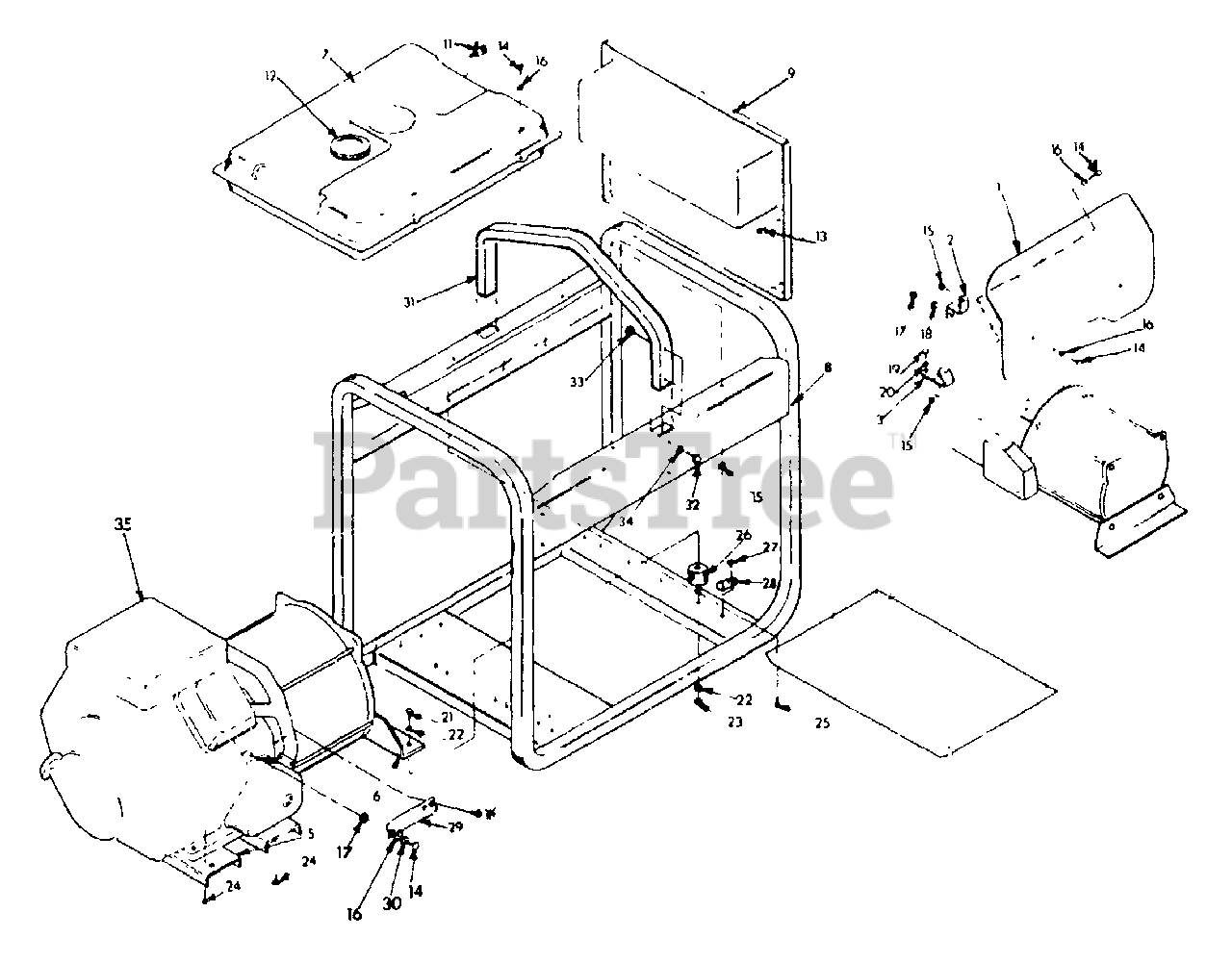

Cradle Repair Parts No. 78823 Parts Diagram

  • Title

1

Briggs & Stratton 77318

HEAT DEFLECTING SHIELD

$

$

Currently unavailable

2

Briggs & Stratton 77319

HEAT SHIELD BRACKET

$

$

Currently unavailable

3

Briggs & Stratton 77306

HEAT SHIELD BRACKET

$

$

Currently unavailable

4

Briggs & Stratton 77316

HEAT SHIELD (GAS TANK)

$

$

Currently unavailable

5

Briggs & Stratton 77304

ENGINE SUPPORT

$

$

Not available

6

Briggs & Stratton 77303

ALTERNATOR SUPPORT

$

$

Currently unavailable

7

Briggs & Stratton 75465

FUEL TANK
(Superseded to 7075465YP)

$15.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 77300

V-TWIN CRADLE

$

$

Not available

9

Briggs & Stratton 77594C

CONTROL PANEL COVER ASSEMBLY

$

$

Currently unavailable

11

Briggs & Stratton 75938

FUEL SHUT-OFF VALVE

$

$

Currently unavailable

12

Briggs & Stratton 76272

FUEL CAP GAUGE

$

$

Not available

13

Briggs & Stratton 75494

SELF-DRILLING NO. 10-24 x 5/8"

$

$

Not available

14

Briggs & Stratton 42568

HEX HEAD CAPSCREW-- M6 1.0 x 20
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

LOCK NUT -- M6 1.0
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

FLAT WASHER -- 1/4"

$

$

Not available

17

Briggs & Stratton 24114

HEX NUT -- 5/16"-24

$

$

Not available

18

Briggs & Stratton 22129

LOCK WASHER -- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 49815

CAPSCREW -- M5 0.8 x 16
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22152

LOCK WASHER -- NO. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23152

CAPSCREW -- 3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

LOCK WASHER - 3/8"

$

$

Not available

23

Briggs & Stratton 22241

HEX NUT -- 3/8"-16

$

$

Not available

24

Briggs & Stratton 75246

SELF-TAPPING SCREW 3/8"-16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 75246

SCREW, CRIMPTITE NO. 8-18 x 1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

VIBRATION MOUNT
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 56892

SELF-TAPPING SCREW NO. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 25433

GROUNDING LUG

$

$

Not available

29

Briggs & Stratton 78807

WIRE SHIELD

$

$

Currently unavailable

30

Briggs & Stratton 22097

LOCK WASHER -- M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77301

LIFTING BAR

$

$

Currently unavailable

32

Briggs & Stratton 39287

CAPSCREW -- M8-1.25 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

LOCK NUT -- M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 22145

FLAT WASHER -- M8

$

$

Not available

35

Briggs & Stratton 78811

ENGINE -- V-TWIN 15 HP

$

$

Currently unavailable
