580.327071 (9784-1) - Craftsman 8,000 Watt Portable Generator Cradle & Generator Parts Diagram

8,000 Watt Portable Generator

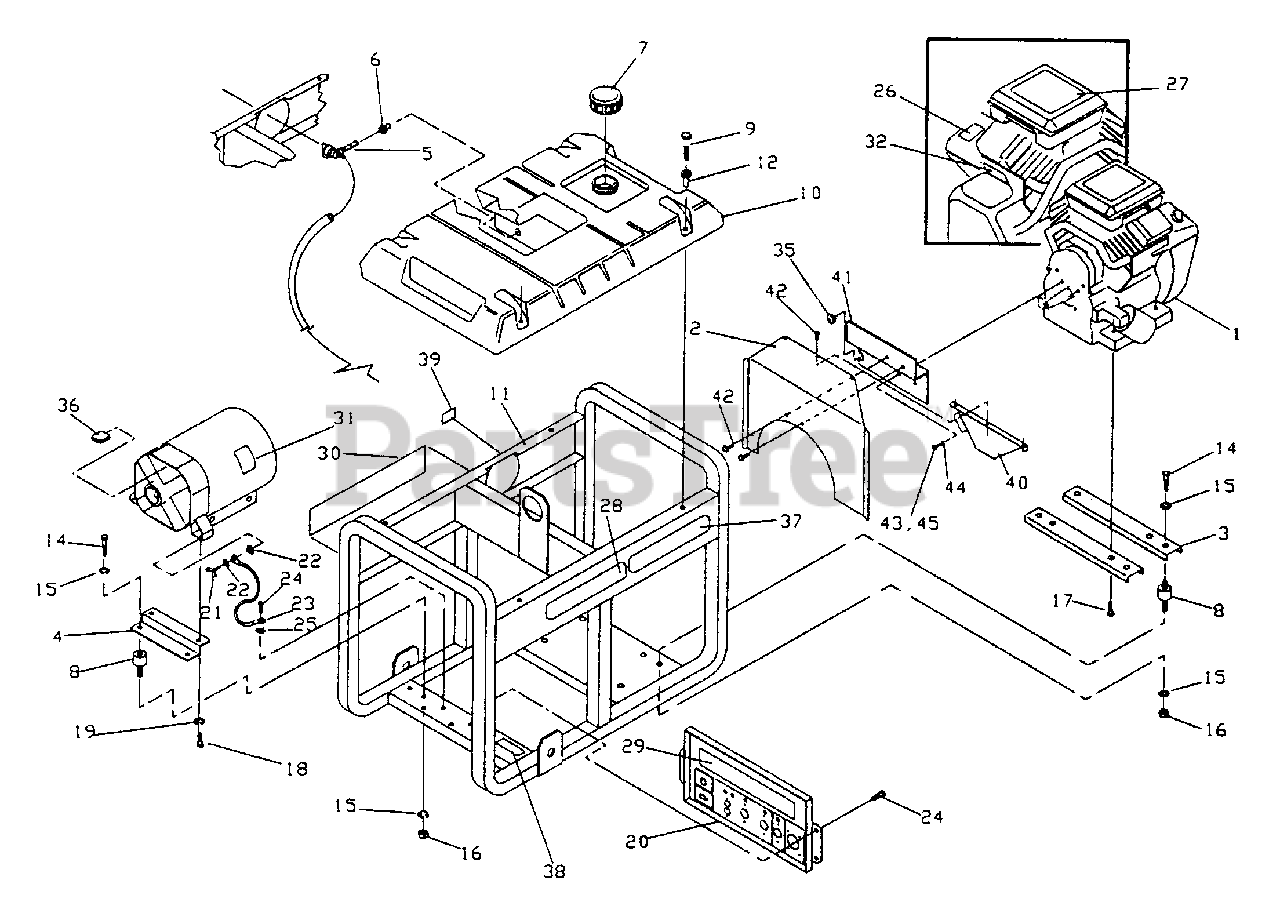

Cradle & Generator Parts Diagram

  • Title

1

Briggs & Stratton 85109

V-twin Engine

$

$

Currently unavailable

2

Briggs & Stratton 98216

Heat Shield

$

$

Not available

3

Briggs & Stratton 77304

Engine Support

$

$

Not available

4

Briggs & Stratton 78512

Alternator Support
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

Fuel Shut-off Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

Fuel Valve Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 84582

Fuel Tank Cap

$

$

Currently unavailable

8

Briggs & Stratton 35097

Vibration Mounts
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

9

78831b

M6-1.0 X 60mm Capscrew

$

$

Not available

10

Briggs & Stratton 93615

Fuel Tank
(Superseded to 93615GS)

$

$

Not available

11

Briggs & Stratton 92558

Cradle
(Superseded to 92558GS)

$799.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

Fuel Tank Mounting Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 23152

3/8-16" X 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

16

Briggs & Stratton 22241

3/8-16" Hex Nut

$

$

Not available

17

Briggs & Stratton 75246

3/8-16" X 1-1/4" Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 39253

M8-1.25 X 16mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

20

92555a

Control Panel Assembly

$

$

Not available

21

Briggs & Stratton 86494

M6-1.0 X 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850

M6 Shakeproof Washer

$

$

Not available

23

14353621

Ground Wire

$

$

Not available

24

Briggs & Stratton 86292

#10 Self Drilling Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

#10 Shakeproof Washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

79661g

Engine Decal

$

$

Not available

27

Briggs & Stratton 77581

Airbox V-twin Decal
(Superseded to 77581GS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92982

Danger Stop Decal
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 92519

Control Panel Decal

$

$

Not available

30

Briggs & Stratton 92668

Unit Decal

$

$

Not available

31

Briggs & Stratton 78837

Data Plate Decal

$

$

Currently unavailable

32

Briggs & Stratton 77816

Caution Hot Muffler Decal
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 62265

Rubber Grommet
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Power Module
(Superseded to 84132GS)

$126.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 93826

Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 96409

"1-800" Decal
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 73054

Fuel Shut-off Decal

$

$

Not available

40

Briggs & Stratton 93074

Heat Shield

$

$

Currently unavailable

41

Briggs & Stratton 98214

Heat Shield Bracket
(Superseded to 98214GS)

$21.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 56892

#10-24 X 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 26359

7/16-14 X 3/4" Bolt

$

$

Currently unavailable

44

Briggs & Stratton 22250

7/16" Flat Washer
(Superseded to 5022250)

$9.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 86495

Loctite 272 Thread Locker

Note: Contact Generac For Quantity Required

$

$

Currently unavailable
