580.327072 (9289-0) - Craftsman 8,000 Watt Portable Generator Cradle No. 80832 Parts Diagram

8,000 Watt Portable Generator

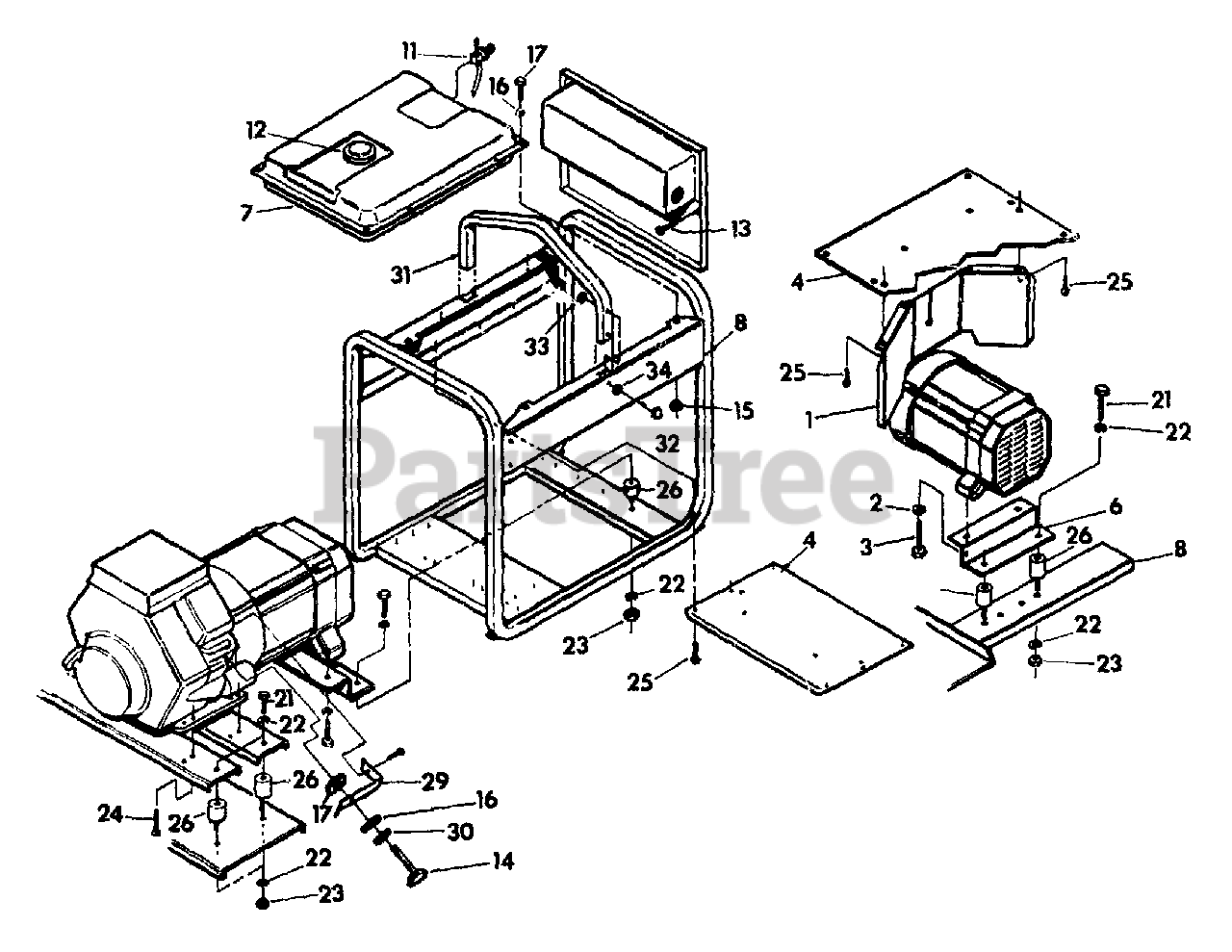

Cradle No. 80832 Parts Diagram

  • Title

1

Briggs & Stratton 78513

SHIELD, HEAT DEFLECTOR

$

$

Currently unavailable

2

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 39253

SCREW, HEX-M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77316

HEAT SHIELD, (GAS TANK)

$

$

Currently unavailable

5

Briggs & Stratton 77304

SUPPORT, ENGINE

$

$

Not available

6

Briggs & Stratton 78512

SUPPORT, ALTERNATOR
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 79568

TANK, FUEL

$

$

Currently unavailable

8

Briggs & Stratton 78508

CRADLE, V-TWIN

$

$

Currently unavailable

11

Briggs & Stratton 75938

VALVE, FUEL SHUT-OFF

$

$

Currently unavailable

12

Briggs & Stratton 76272

CAP GAUGE, FUEL

$

$

Not available

13

Briggs & Stratton 75494

SCR., SELF DRILL NO. 10-24 x 5/8"

$

$

Not available

14

Briggs & Stratton 42568

CAPSCREW, HEX HEAD-M6 1.0 x 20
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

NUT, HEX LOCK-M6 1.0
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

WASHER, FLAT-1/4"

$

$

Not available

17

Briggs & Stratton 24114

NUT, HEX 5/16"-24

$

$

Not available

21

Briggs & Stratton 23152

CAPSCREW, HEX HEAD-3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

WASHER, LOCK 3/8"

$

$

Not available

23

Briggs & Stratton 22241

NUT, HEX 3/8"-16

$

$

Not available

24

Briggs & Stratton 75246

SCR., SELF TAPPING 3/8"-16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

SCREW, CRIMPTITE #8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

VIBRATION MOUNT
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 78807

SHIELD, WIRE

$

$

Currently unavailable

30

Briggs & Stratton 22097

WASHER, LOCK M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 80809

LIFTING, BAR

$

$

Currently unavailable

32

Briggs & Stratton 39287

CAPSCREW, HEX HEAD-M8-1.25 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

NUT, HEX LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 22145

WASHER, FLAT-M8

$

$

Not available

35

Briggs & Stratton 78282

ENGINE, V-TWIN 15HP.

$

$

Currently unavailable
