580.327072 (9289-0) - Craftsman 8,000 Watt Portable Generator Generator No. 80831 Parts Diagram

8,000 Watt Portable Generator

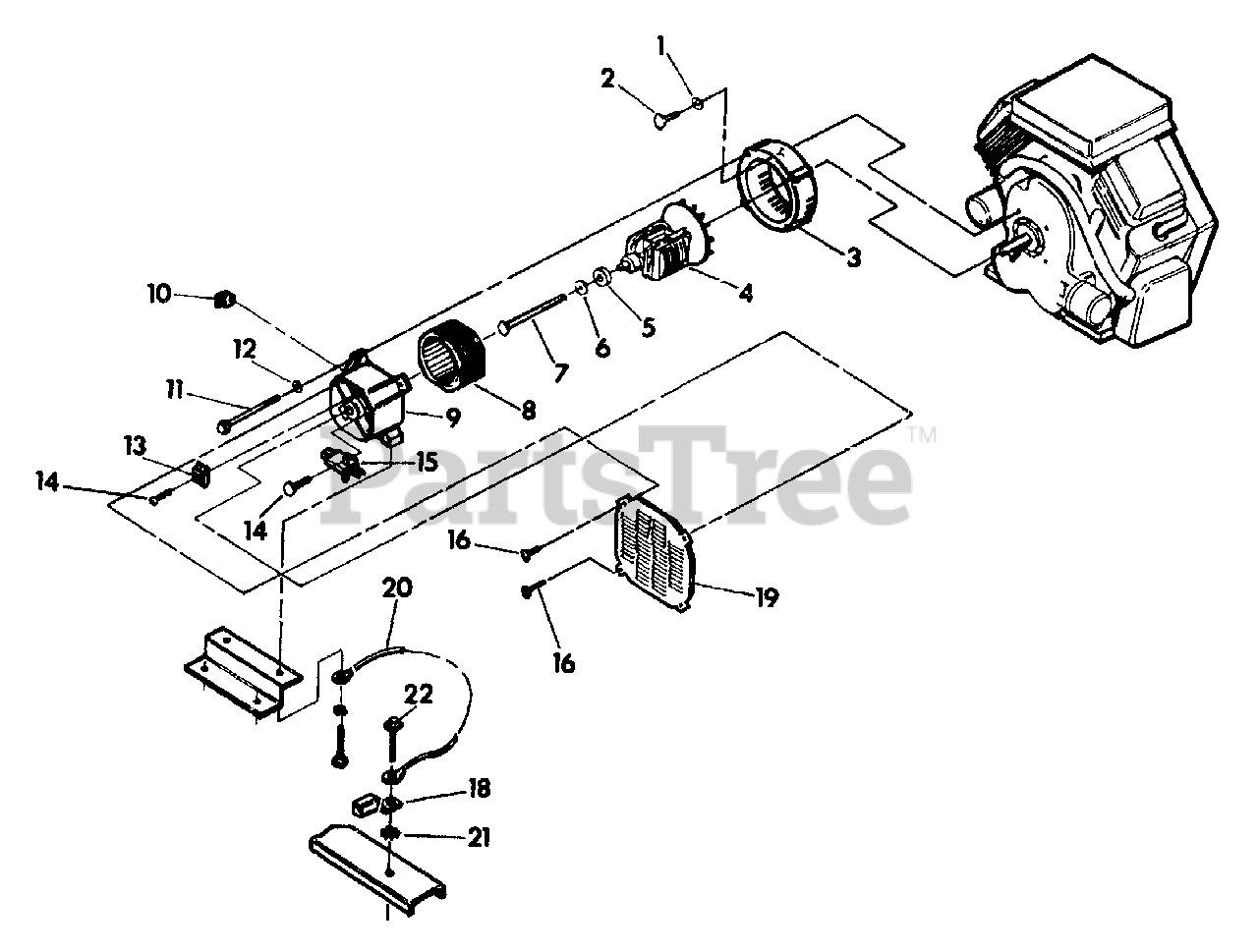

Generator No. 80831 Parts Diagram

  • Title

1

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 22336

SCREW, HEX HEAD-5/16-24" x 3/4"

$

$

Not available

3

Briggs & Stratton 66365G

HOUSING, ENGINE ADAPTOR
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77306

ROTOR ASSEMBLY

$

$

Currently unavailable

5

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

FLAT WASHER (SPECIAL)

$

$

Currently unavailable

7

Briggs & Stratton 29092

BOLT, ROTOR-5/16"-24 x 11.25"

$

$

Currently unavailable

8

Briggs & Stratton 77260

STATOR ASSEMBLY

$

$

Currently unavailable

9

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

10

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66449K

BOLT, STATOR-M6-1.0 x 200MM
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

14

Briggs & Stratton 66849

TAPTITE
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 80812

HOLDER ASSEMBLY, BRUSH

$

$

Currently unavailable

16

Briggs & Stratton 74908

SCREW(TAPTITE) M5-0.8 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

19

Briggs & Stratton 78388

PANEL, REAR BEARING CARRIER
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 11853621

WIRE, GROUNDING
(Superseded to 11853621GS)

$13.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22769

WASHER, SHAKE-PROOF #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 56892

CRIMPTITE-10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0
