580.327074 (9289-2) - Craftsman 8,000 Watt Portable Generator Cradle No. 86304 Parts Diagram

8,000 Watt Portable Generator

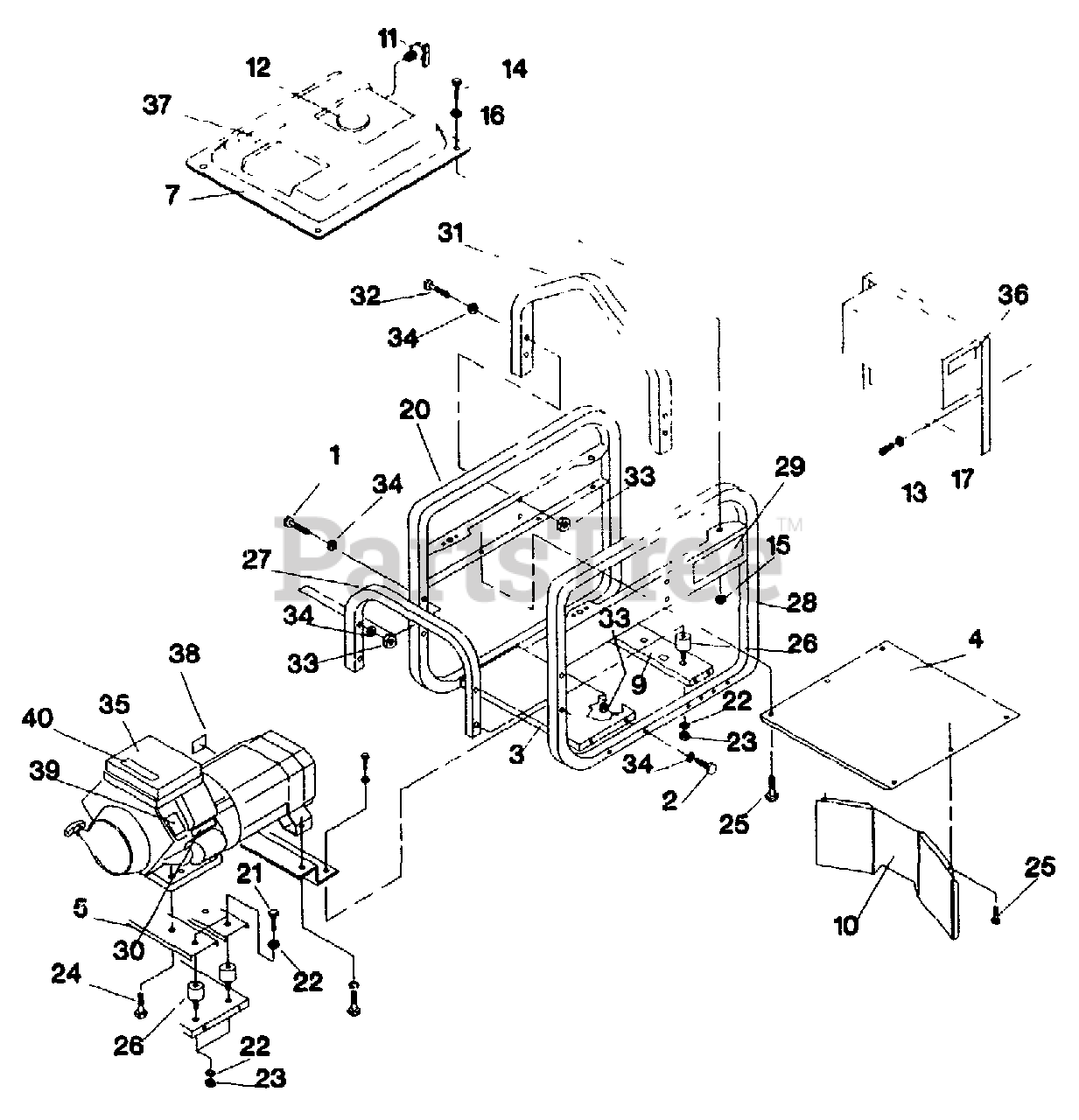

Cradle No. 86304 Parts Diagram

  • Title

1

Briggs & Stratton 52203

M8-1.25 x 70mm Capscrew

$

$

Not available

2

Briggs & Stratton 57821

M8-1.25 x 40mm Capscrew

$

$

Not available

3

Briggs & Stratton 80946

Mount, Engine

$

$

Currently unavailable

4

Briggs & Stratton 77316

Heat, Shield (gas Tank)

$

$

Currently unavailable

5

Briggs & Stratton 77304

Support, Engine

$

$

Not available

6

Briggs & Stratton 78512

Support, Alternator
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73715

Tank, Fuel
(Superseded to 7073715YP)

$

$

Not available

8

Briggs & Stratton 80943

Cradle, Manual Start

$

$

Currently unavailable

9

Briggs & Stratton 80947

Mount, Alternator

$

$

Currently unavailable

10

Briggs & Stratton 78513

Shield, Heat Deflecting

$

$

Currently unavailable

11

Briggs & Stratton 86537

Valve, Fuel Shut-off

$

$

Currently unavailable

12

Briggs & Stratton 76272

Cap Gauge, Fuel

$

$

Not available

13

Briggs & Stratton 75494

No. 10-24 x 5/8" Screw

$

$

Not available

14

Briggs & Stratton 42568

M6-1.0 x 20mm Capscrew
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

M6-1.0 Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

1/4" Flat Washer

$

$

Not available

17

Briggs & Stratton 22769

M5 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 39253

M8-1.25 x 16mm Hex Screw
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

20

UNKNOWN

$

$

Not available

21

Briggs & Stratton 23152

3/8"-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

23

Briggs & Stratton 22241

3/8"-16 Hex Nut

$

$

Not available

24

Briggs & Stratton 75246

3/8"-16 x 1-1/4" Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

Vibration Mount
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 80943

Support, Cradle

$

$

Currently unavailable

28

Briggs & Stratton 64768

Cradle Side, Left

$

$

Currently unavailable

29

Briggs & Stratton 69641

Decal, Sears Craftsman

$

$

Currently unavailable

30

Briggs & Stratton 77816

Decal - "Caution Hot Muffler"
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 80949

Lifting Bar

$

$

Currently unavailable

32

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

M8-1.25 Hex Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 50190

1" Flat Washer
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 85109

Engine, V-Twin, 15 HP

$

$

Currently unavailable

36

Briggs & Stratton 25717

Decal - CSA

$

$

Currently unavailable

37

Briggs & Stratton 78992

Decal - "Danger-Start/Stop"

$

$

Currently unavailable

38

Briggs & Stratton 79552

Decal - Data

$

$

Not available

39

Briggs & Stratton 79661E

Decal - Engine

$

$

Currently unavailable

40

UNKNOWN

$

$

Not available
