580.327074 (9289-2) - Craftsman 8,000 Watt Portable Generator Engine Parts Diagram

8,000 Watt Portable Generator

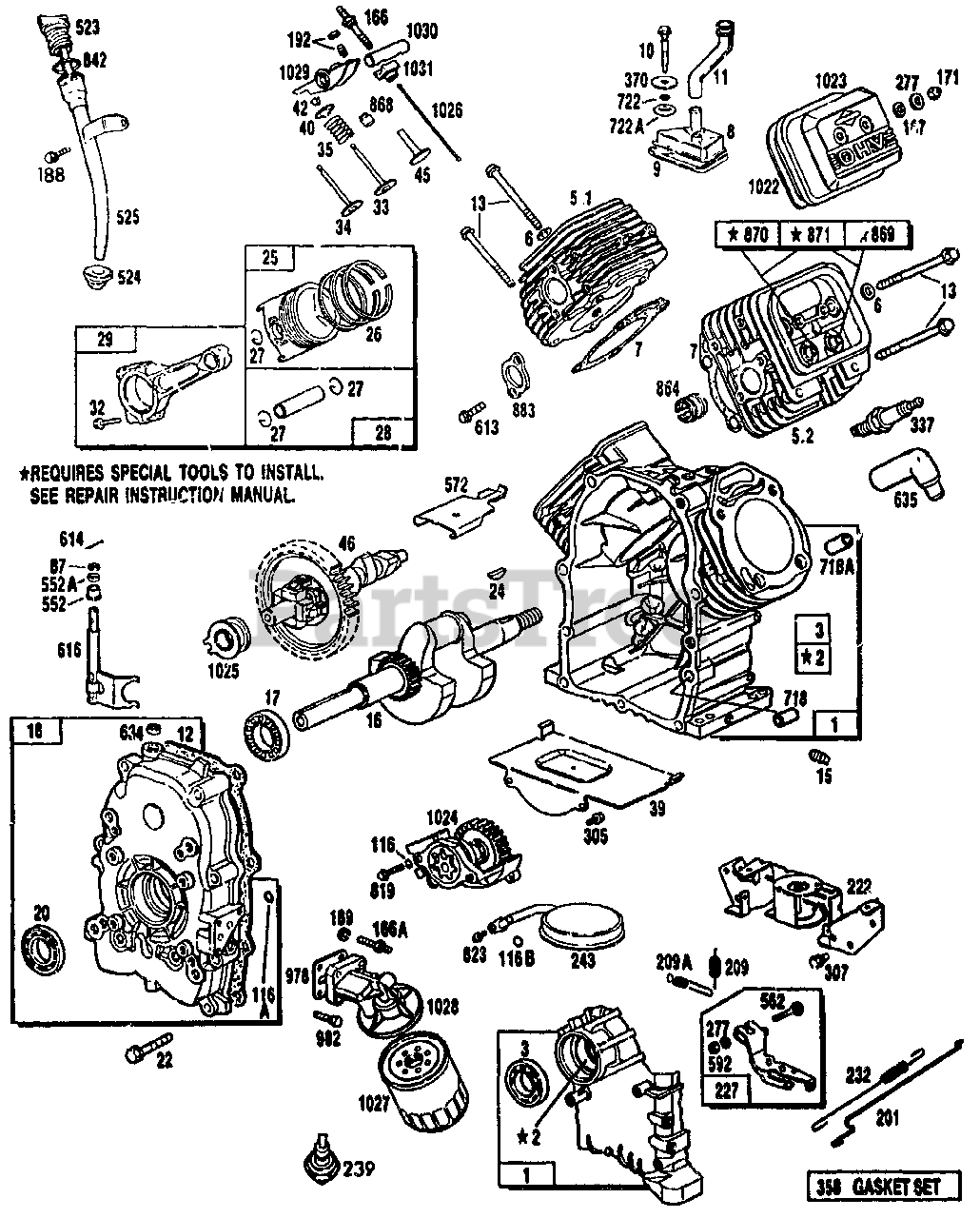

Engine Parts Diagram

  • Title

1

Briggs & Stratton 69376

807521 - Cylinder assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 69333

805107 - Cylinder bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 67805

805101 - Oil seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

5-1

Briggs & Stratton 69311

807508 - Cylinder head (cyl. #1)

Note: Contact Generac for quantity required

$

$

Not available

5-2

Briggs & Stratton 69312

807510 - Cylinder head (cyl. #2)

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 70169

805193 - Cylinder head washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 69332

805111 - Cylinder head gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 72301

807553 - Breather assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 72315

805379 - Breather gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 70190

805194 - Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 70596

805362 - Breather tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 69336

805112 - Crankcase cover gasket

Note: Contact Generac for quantity required

$

$

Not available

13

Briggs & Stratton 69325

805097 - Cylinder head screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 67888

805048 - Oil drain plug
(Superseded to 67888GS)

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 80014

807745 - Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 69315

805213 - Ball bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 70540

807628 - Crankcase cover assm.

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 67924

805049 - Oil seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 67878

805017 - Crankcase cover screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 67877

805016 - Flywheel key

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 75248

807619 - Piston assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 75249

807620 - Piston ring set

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 69327

805099 - Piston pin lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 75250

807621 - Piston pin assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 75251

807622 - Connecting rod assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 72346

805395 - Connecting rod screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 69316

805089 - Exhaust valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 69317

805090 - Intake valve

Note: Contact Generac for quantity required

$

$

Not available

35

Briggs & Stratton 67816

805078 - Valve Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 70523

805300 - Windage plate

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 69320

805092 - Valve spring retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 70513

805161 - Valve retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 70584

805354 - Valve tappet

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 80016

807764 - Cam gear -- 2WT

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 68554

805054 - Governor shaft seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

116

Briggs & Stratton 68573

805058 - O-ring (oil pump)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116A

Briggs & Stratton 70506

805198 - O-ring (crankcase cover)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116B

Briggs & Stratton 70541

805316 - O-ring (pick-uptube)

Note: Contact Generac for quantity required

$

$

Currently unavailable

166

Briggs & Stratton 70567

805342 - Rocker arm stud

Note: Contact Generac for quantity required

$

$

Currently unavailable

166A

Briggs & Stratton 70131

805073 - Oil filter adapter stud

Note: Contact Generac for quantity required

$

$

Currently unavailable

167

Briggs & Stratton 75253

805420 - Valve cover washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

171

Briggs & Stratton 67885

805019 - Nut
(Superseded to 67885GS)

Note: Contact Generac for quantity required

$6.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 39253

805247 - Screw
(Superseded to 39253GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 22129

805449 - Lockwasher
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 75254

807623 - Valve adjusting screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

201

Briggs & Stratton 74946

805480 - Choke Control Rod
(Superseded to 7074946YP)

Note: Contact Generac for quantity required

$22.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 77348

805630 - Governor spring - 2WT
(Superseded to 77348GS)

Note: Contact Generac for quantity required

$29.99

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 79282

805450 - Governor idle spring

Note: Contact Generac for quantity required

$

$

Not available

222

Briggs & Stratton 79285

807610 - Governor control bracket
(Superseded to 7079285YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 72320

807528 - Governor lever assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

232

Briggs & Stratton 70125

805465 - Governor link spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

239

Briggs & Stratton 60108

491657 - Oil pressure switch

Note: Contact Generac for quantity required

$

$

Not available

243

Briggs & Stratton 70531

807598 - Oil pump pick-up screen

Note: Contact Generac for quantity required

$

$

Currently unavailable

277

Briggs & Stratton 67884

805018 - Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

305

Briggs & Stratton 66886

805406 - Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

307

Briggs & Stratton 67898

805025 - Screw

Note: Contact Generac for quantity required

$

$

Not available

337

Briggs & Stratton 72347

491055 - Spark plug
(Superseded to 491055S)

Note: Contact Generac for quantity required

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 80055

807640 - Gasket set

Note: Contact Generac for quantity required. Includes items 9, 12,51,52, 116,116A, 116B, 167, 722, 722A, 883, 978, 1022

$

$

Currently unavailable

370

Briggs & Stratton 75259

805484 - Breather screw - washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

523

Briggs & Stratton 70158

807585 - Dipstick

Note: Contact Generac for quantity required

$

$

Currently unavailable

524

Briggs & Stratton 67181

805259 - Filler tube seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

525

Briggs & Stratton 70151

807584 - Oil filler tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

552

Briggs & Stratton 72361

805412 - Governor shaft bushing

Note: Contact Generac for quantity required

$

$

Not available

552A

Briggs & Stratton 72362

805413 - Governor shaft bushing
(Superseded to 7072362YP)

Note: Contact Generac for quantity required

$13.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 80003

805381 - Bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

572

Briggs & Stratton 70199

805197 - Breather baffle

Note: Contact Generac for quantity required

$

$

Currently unavailable

592

Briggs & Stratton 72321

805383 - Hex nut
(Superseded to 7072321YP)

Note: Contact Generac for quantity required

$26.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 69397

805158 - Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

614

Briggs & Stratton 72366

805417 - Cotter pin

Note: Contact Generac for quantity required

$

$

Currently unavailable

616

Briggs & Stratton 72367

807596 - Governor fork

Note: Contact Generac for quantity required

$

$

Currently unavailable

634

Briggs & Stratton 72365

805416 - Governor shaft washer
(Superseded to 7072365YP)

Note: Contact Generac for quantity required

$22.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 70562

805529 - Spark plug elbow

Note: Contact Generac for quantity required

$

$

Currently unavailable

718

Briggs & Stratton 68555

805103 - Crankcase dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

718A

Briggs & Stratton 67806

805102 - Cylinder head dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

722

Briggs & Stratton 75262

805482 - Breather screw seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

722A

Briggs & Stratton 75283

805483 - Breather screw seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

819

Briggs & Stratton 68572

805057 - Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

823

Briggs & Stratton 70542

805317 - Mounting screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

842

Briggs & Stratton 80007

805386 - O-ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

864

Briggs & Stratton 67195

805083 - Exhaust port liner

Note: Contact Generac for quantity required

$

$

Currently unavailable

868

Briggs & Stratton 70122

805094 - Valve guide seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

869

Briggs & Stratton 67910

805085 - Intake valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

870

Briggs & Stratton 67911

805086 - Exhaust valve seat

Note: Contact Generac for quantity required

$

$

Currently unavailable

871

Briggs & Stratton 67813

805084 - Valve guide
(Superseded to 67813GS)

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 67897

805024 - Exhaust manifold gasket
(Superseded to 691613)

Note: Contact Generac for quantity required

$5.49

$

In Stock, Qty 16

0

978

Briggs & Stratton 68548

805250 - Oil filter adapter gasket

Note: Contact Generac for quantity required

$

$

Not available

982

Briggs & Stratton 68527

805030 - Screw
(Superseded to 68527GS)

Note: Contact Generac for quantity required

$15.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 67920

805028 - Valve cover gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

1023

Briggs & Stratton 69328

805100 - Valve cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

1024

Briggs & Stratton 70539

807644 - Oil pump assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

1025

Briggs & Stratton 70536

805313 - Governor slider

Note: Contact Generac for quantity required

$

$

Currently unavailable

1026

Briggs & Stratton 70577

805352 - Rod intake push

Note: Contact Generac for quantity required

$

$

Currently unavailable

1027

Briggs & Stratton 70185

491056 - Oil filter
(Superseded to 70185GS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 70599

807557 - Rocker arm

Note: Contact Generac for quantity required

$

$

Currently unavailable

1028

Briggs & Stratton 70514

805292 - Oil filter adapter

Note: Contact Generac for quantity required

$

$

Currently unavailable

1030

Briggs & Stratton 70567

805342 - Rocker arm shaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

1031

Briggs & Stratton 70566

805341 - Rocker arm support

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 75271

807668 - Valve Overhaul Kit

Note: Contact Generac for quantity required Includes items 6, 7, 167, 171, 1022

$

$

Currently unavailable

Briggs & Stratton 80012

807688 - Breather Gasket set

Note: Contact Generac for quantity required Includes items 9, 722, 722A

$

$

Currently unavailable
