580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Carburetor Assembly Parts Diagram

5,000 Watt Portable Generator

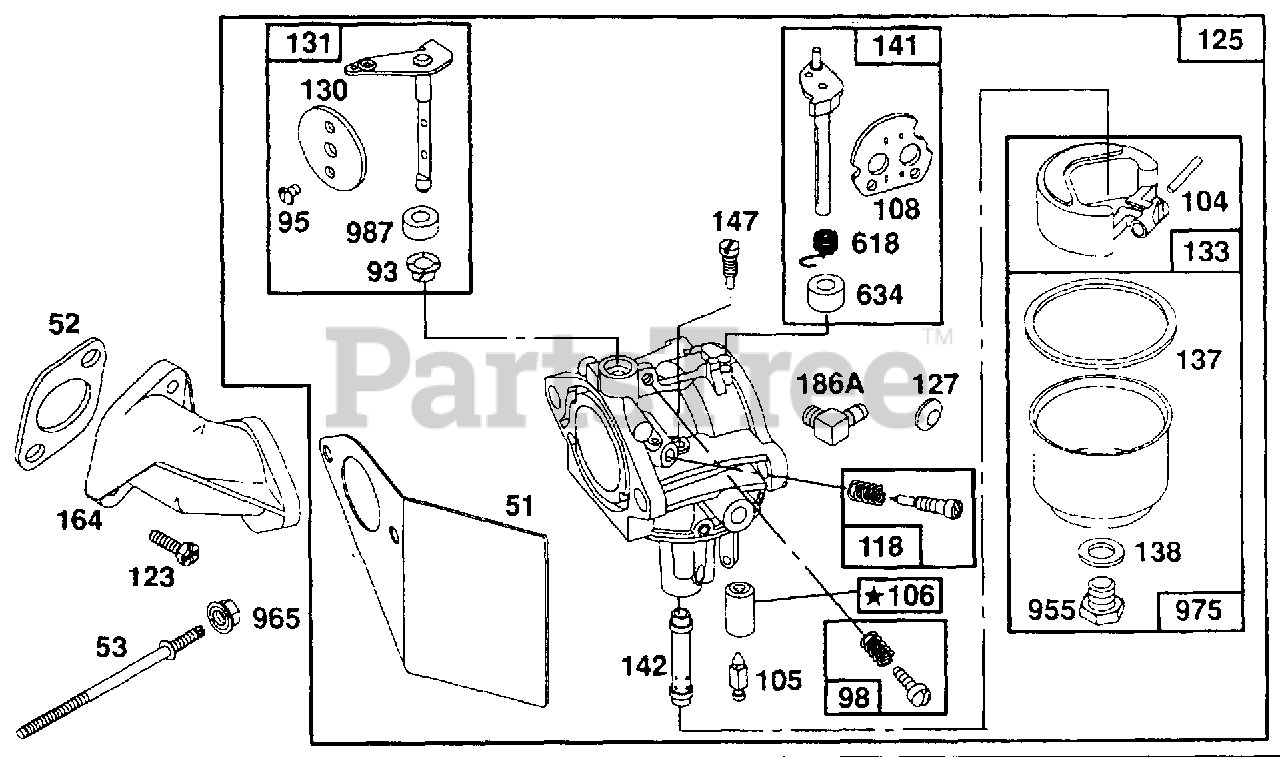

Carburetor Assembly Parts Diagram

  • Title

51

Briggs & Stratton 272708

Gasket - Intake
(Superseded to 691886)

$

$

Not available

52

Briggs & Stratton 272707

Gasket - Intake
(Superseded to 691885)

$4.99

$

In Stock, Qty 14

0

53

Briggs & Stratton 94778

Stud - Carb. Mtg.
(Superseded to 691672)

$8.49

$

In Stock, only 4 left!

0

93

Briggs & Stratton 281346

Bushing - Shaft
(Superseded to 690602)

$9.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 94098

Screw - Round Head
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Screw - Idle Adjust

$10.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin - Float Hinge
(Superseded to 690525)

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231935

Valve - Needle
(Superseded to 691782)

$18.99

$

In Stock, only 1 left!

0

106

Briggs & Stratton 231856

Seat - Inlet
(Superseded to 691780)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 224666

Valve - Choke
(Superseded to 690467)

$5.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 494383

Valve - Needle

$13.99

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 94616

Screw - Torx Hex.
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 497844

Carburetor
(Superseded to 499029)

Note: (Used After Code Date 94083100).

$192.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 497164

Carburetor

Note: (Used Before Code Date 94090100).

$192.99

$

Usually ships in 2-12 days

0

127

Plug - Welch

Note: (Sold in Kit Only)

$

$

Not available

130

Briggs & Stratton 224539

Valve - Throttle
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 497846

Shaft - Throttle

Note: (Used After Code Date 94083100)

$36.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float - Carburetor

$13.99

$

In Stock, Qty 9

0

137

Briggs & Stratton 281165

Gasket - Float Bowl
(Superseded to 281165S)

$4.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

$5.49

$

In Stock, Qty 14

0

141

Briggs & Stratton 497160

Shaft - Choke

$15.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497564

Nozzle - Carburetor

Note: (Used After Code Date 94062300).

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497848

Nozzle - Carb.

Note: (High Altitude)

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497197

Nozzle - Carb.

Note: (Used Before Code Date 94062400).

$24.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497198

Nozzle - Carb.

Note: (High Altitude)

$23.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet - Pilot

Note: (Used After Code Date 94072400).

$22.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231794

Jet - Pilot
(Superseded to 497472)

Note: (Used Before Code Date 94072500).

$22.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 214170

Manifold - Intake
(Superseded to 691157)

$

$

Not available

186A

Briggs & Stratton 493496

Elbow - Fuel Pipe
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

Seal - Choke Shaft
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 94642

Screw - Bowl Mtg.
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94010

Nut - Hex.
(Superseded to 690958)

$3.49

$

In Stock, Qty 7

0

975

Briggs & Stratton 494378

Bowl - Float
(Superseded to 495933)

$10.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal - Throttle Shaft
(Superseded to 691326)

$5.49

$

In Stock, only 1 left!

0

Briggs & Stratton 281164

Washer
(Superseded to 692255)

$5.49

$

In Stock, Qty 14

0

Briggs & Stratton 497070

Gasket Set

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497849

Carburetor Kit

$69.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497069

Carburetor Gasket Set
(Superseded to 497849)

$69.99

$

Usually ships in 2-12 days

0
