580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Cylinder Assembly Parts Diagram

5,000 Watt Portable Generator

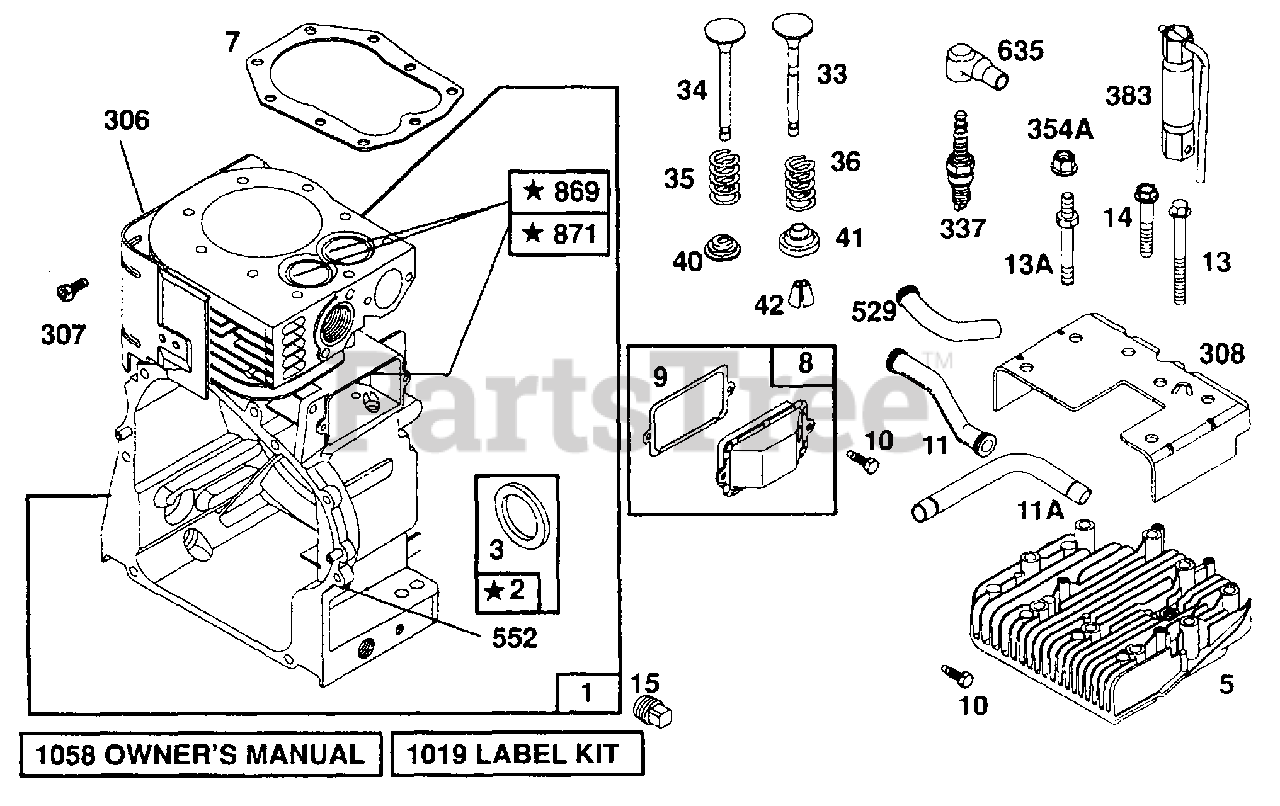

Cylinder Assembly Parts Diagram

  • Title

1

Briggs & Stratton 495631

Cylinder Assembly

Note: (Includes OIL GARD(TM) Cover)

$

$

Not available

2

Briggs & Stratton 495657

Bushing
(Superseded to 698340)

$22.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 391086

Seal - Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214347

Head - Cylinder
(Superseded to 691159)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

Gasket - Cylinder Hd.
(Superseded to 272163S)

$7.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 495736

Breather Assembly

Note: (Used After Code Date 95010100).

$42.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket - Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw - Sem
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280225

Tube - Breather
(Superseded to 691899)

Note: (Used After Code Date 95010100).

$13.99

$

In Stock, only 1 left!

0

11A

Briggs & Stratton 231900

Tube - Breather

Note: (Used Before Code Date 94111100).

$

$

Not available

13

Briggs & Stratton 94565

Screw - Cylinder Head
(Superseded to 592244)

Note: (3-9/16" Long)

$3.49

$

In Stock, Qty 13

0

13A

Briggs & Stratton 94733

Stud - Cylinder Head
(Superseded to 691690)

Note: Used in Position # 5 & #6.

$

$

Not available

14

Briggs & Stratton 93723

Screw - Cylinder Head
(Superseded to 690904)

Note: (3" Long)

$11.99

$

In Stock, Qty 6

0

15

Briggs & Stratton 94239

Plug - Oil Drain
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

33

Briggs & Stratton 390419

Valve - Exhaust
(Superseded to 691794)

Note: (Includes Ref. 42)

$

$

Not available

34

Briggs & Stratton 261055

Valve - Intake
(Superseded to 261055S)

$32.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring - Valve
(Superseded to 691605)

Note: (Intake)

$6.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 26828

Spring - Valve
(Superseded to 691597)

Note: (Exhaust)

$10.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer - Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer - Valve
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 494553

Keeper - Valve

$7.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 496797

Shield - Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94386

Screw - Self Tapping
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 225055

Cover - Cylinder Head
(Superseded to 691212)

$12.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 496018

Plug - Spark
(Superseded to 496018S)

$4.49

$

In Stock, Qty 20+

0

354A

Briggs & Stratton 94726

Nut - Hex.
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench - Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

529

Briggs & Stratton 281367

Grommet

Note: (Used Before Code Date 94111100).

$

$

Not available

552

Briggs & Stratton 491986

Bushing - Gov. Crank

$

$

Not available

635

Briggs & Stratton 66538

Boot - Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 14

0

869

Briggs & Stratton 211661

Seat - Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Bushing - Guide

Note: (Exhaust)

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

Bushing - Guide

Note: (Intake)

$14.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 491181

Label Kit

$40.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272848

Owner's Manual

$

$

Not available

Briggs & Stratton 497070

Gasket Set

$55.99

$

Usually ships in 2-12 days

0
