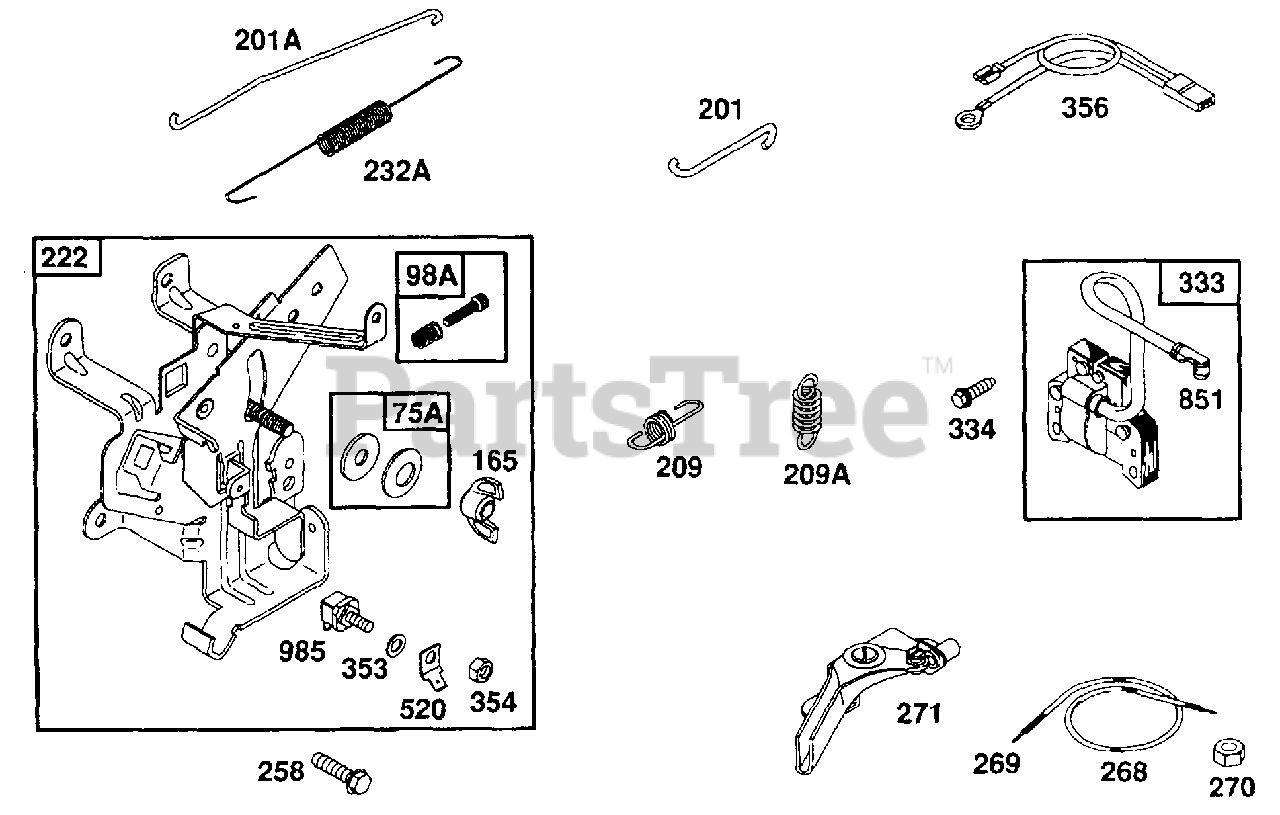

580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Governor Assembly Parts Diagram

5,000 Watt Portable Generator

Governor Assembly Parts Diagram

  • Title

75A

Briggs & Stratton 495659

Kit - Washer

$2.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 493280

Spring - Speed Adj.

$8.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 94692

Nut - Wing
(Superseded to 690355)

$3.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 263051

Link
(Superseded to 691854)

$12.99

$

In Stock, only 1 left!

0

201A

Briggs & Stratton 262970

Link

$

$

Not available

209

Briggs & Stratton 263054

Spring - Governor

$10.99

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 260723

Spring - Governor

$4.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 497076

Plate - Control
(Superseded to 499724)

$40.99

$

Usually ships in 2-12 days

0

232A

Briggs & Stratton 262959

Spring - Link
(Superseded to 691846)

$11.99

$

In Stock, only 2 left!

0

258

Briggs & Stratton 94620

Screw - Self Tapping
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

268

Briggs & Stratton 65616

Casing - Control Wire (72" Long)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire - Control (78" Long)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Locknut - Casing
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever - Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature - Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw - Hex.
(Superseded to 691061)

$3.49

$

In Stock, Qty 17

0

353

Briggs & Stratton 92791

Washer - Lock
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 90576

Nut - Hex.
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 491391

Wire - Stop

$6.49

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 93722

Terminal
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

Terminal - Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

985

Briggs & Stratton 398525

Insulator
(Superseded to 691972)

$8.49

$

In Stock, Qty 6

0
