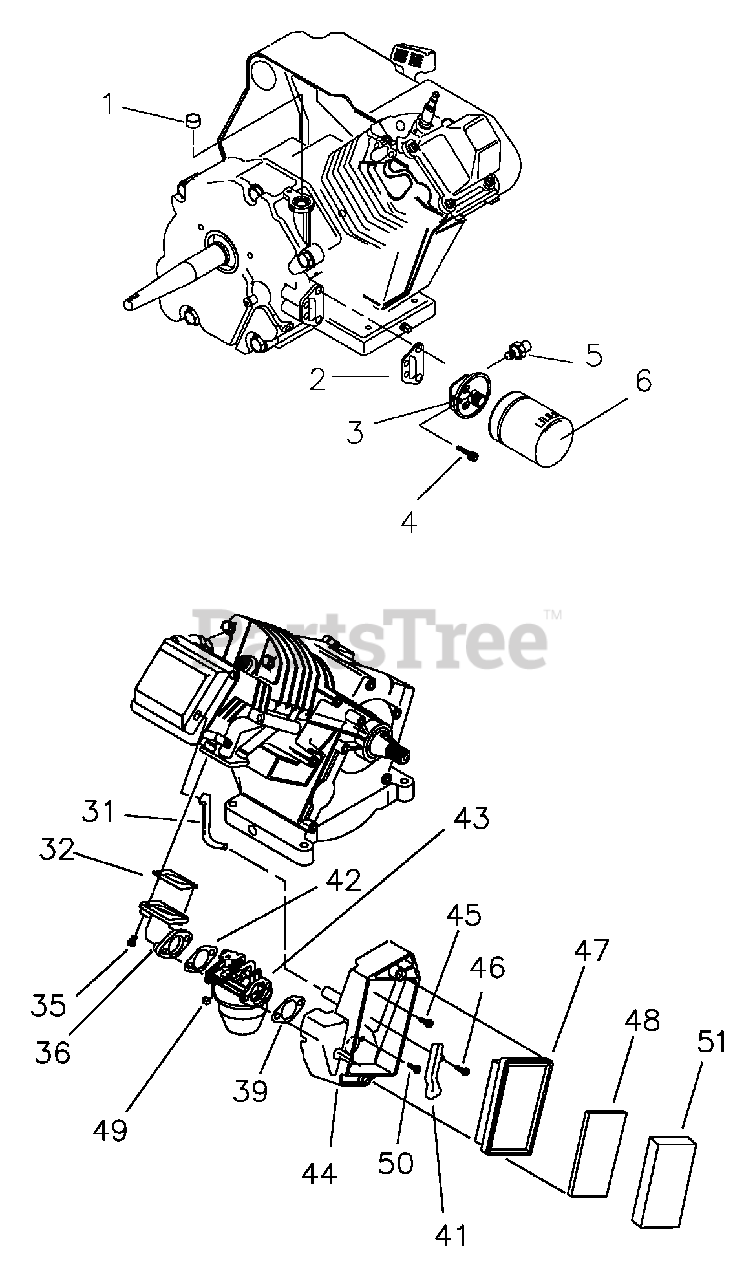

580.327130 (1188-0) - Craftsman 3,500 Watt Portable Generator Carburetor, Air Cleaner, Oil Switch And Oil Filter Parts Diagram

3,500 Watt Portable Generator

Carburetor, Air Cleaner, Oil Switch And Oil Filter Parts Diagram

  • Title

1

Briggs & Stratton 94820

Expansion Plug

$

$

Currently unavailable

2

Briggs & Stratton 91848

Oil Filter Gasket
(Superseded to 7091848YP)

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84982

Oil Filter Adapter

$

$

Currently unavailable

4

Briggs & Stratton 92978

M6 x 20 mm Screw

$

$

Currently unavailable

5

Briggs & Stratton 99236

Oil Pressure Switch

$

$

Not available

6

Briggs & Stratton 70185

Oil Filter
(Superseded to 70185GS)

$14.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 90947

Breather Hose
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 12

0

32

Briggs & Stratton 90051

Manifold Head Gasket

$

$

Not available

35

Briggs & Stratton 80316

M6 x 30 mm Screw

$

$

Currently unavailable

36

Briggs & Stratton 90948

Intake Manifold

$

$

Not available

39

Briggs & Stratton 91846

Air Box Gasket

$

$

Not available

41

Briggs & Stratton 80303

Canal Cover

$

$

Not available

42

Briggs & Stratton 78631

Manifold Gasket

$

$

Not available

43

Briggs & Stratton 97747

Carburetor

$

$

Not available

44

Briggs & Stratton 78607

Air Cleaner Base

$

$

Not available

45

Briggs & Stratton 66476

M6 x 12 mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 59635

#8 x 3/8" Plastite Screw

$

$

Currently unavailable

47

Briggs & Stratton 78601

Air Filter
(Superseded to 78601GS)

$13.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 78602

Pre-cleaner

$

$

Not available

49

Briggs & Stratton 83504

Choke Knob

$

$

Not available

50

Briggs & Stratton 78643

Carb Mount Bolt

$

$

Not available

51

Briggs & Stratton 78608A

Air Box Cover

$

$

Currently unavailable

Briggs & Stratton 78609

Air Box Screws

$

$

Not available
