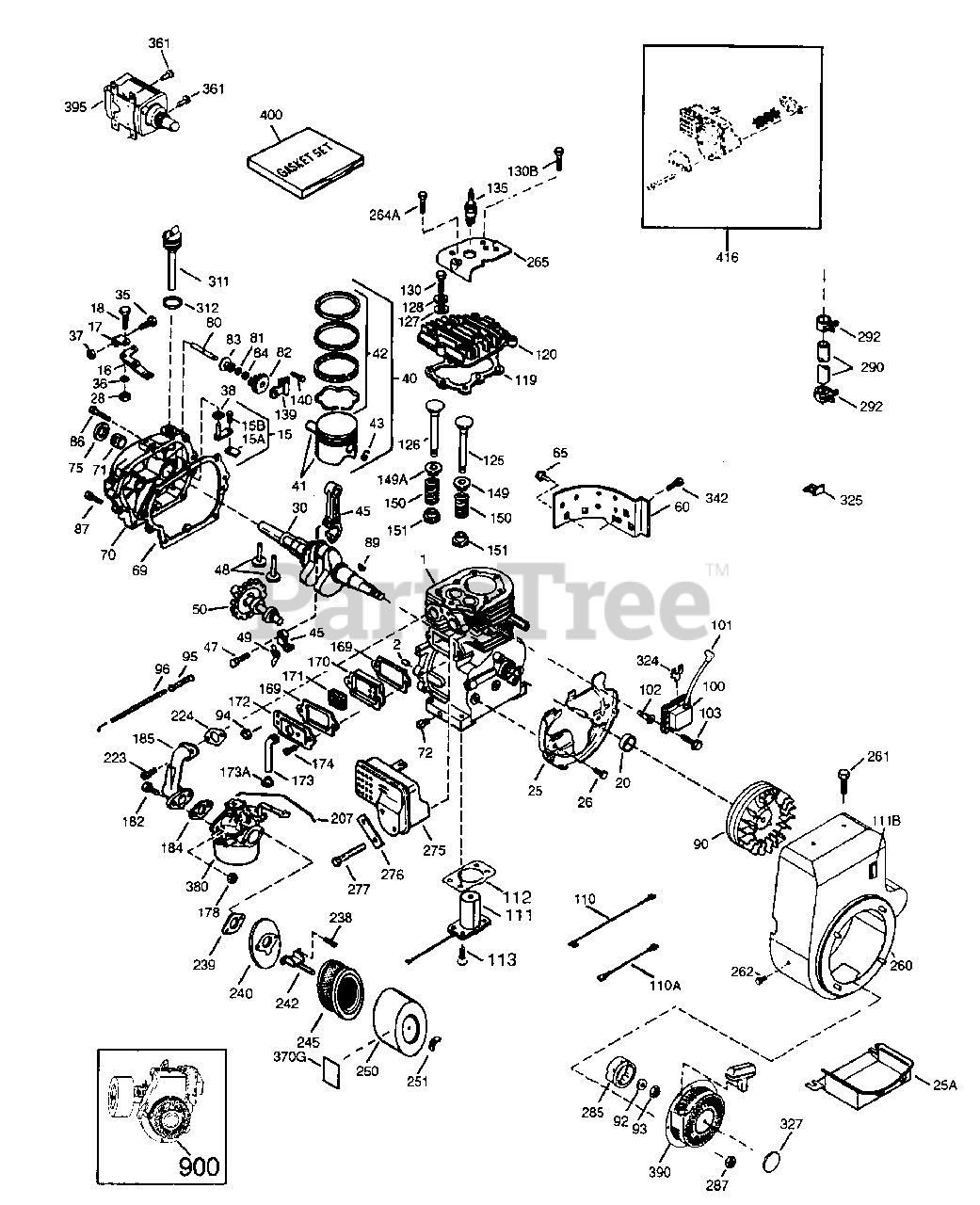

580.327152 (1150-0) - Craftsman 5,000 Watt Portable Generator Tecumseh Engine - 143.981007 Parts Diagram

5,000 Watt Portable Generator

Tecumseh Engine - 143.981007 Parts Diagram

  • Title

1

Briggs & Stratton 35968A

Cylinder

Note: (Incl. 2, 20 & 72)

$

$

Currently unavailable

2

Briggs & Stratton 27652

Dowel Pin
(Superseded to 7027652YP)

$106.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 30699C

Governor Rod

Note: (Incl. 15A & 15B)

$

$

Currently unavailable

15A

Briggs & Stratton 30700

Governor Yoke

$

$

Currently unavailable

15B

Briggs & Stratton 650494

Screw, 6-40 x 5/16"

$

$

Currently unavailable

16

Briggs & Stratton 33454A

Governor Lever Ass'y.

$

$

Currently unavailable

17

Briggs & Stratton 29916

Governor Lever Clamp

$

$

Currently unavailable

18

Briggs & Stratton 651028

Screw, Torx T-15, 8-32 x 3.8"

$

$

Currently unavailable

20

Briggs & Stratton 35319

Oil Seal

$

$

Currently unavailable

25

Briggs & Stratton 35460

Blower Housing Baffle

$

$

Currently unavailable

25A

Briggs & Stratton 36244

Air Baffle

$

$

Currently unavailable

26

Briggs & Stratton 650561

Screw, 1/4-20 x 5/8"

$

$

Currently unavailable

28

Briggs & Stratton 30322

Lock Nut, 8-32

$

$

Currently unavailable

30

Briggs & Stratton 35441A

Camshaft

$

$

Currently unavailable

35

Briggs & Stratton 29826

Screw, 10-32 x 3/4"

$

$

Currently unavailable

36

Briggs & Stratton 29918

Lock Washer

$

$

Currently unavailable

37

Briggs & Stratton 29216

Lock Nut, 10-32
(Superseded to 7029216YP)

$78.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 29642

Retaining Pin

$

$

Currently unavailable

40

Briggs & Stratton 35776A

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Briggs & Stratton 35777A

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

40

Briggs & Stratton 35778A

Piston, Pin & Ring Set (.020" OS)

$

$

Currently unavailable

41

Briggs & Stratton 35773A

Piston & Pin Ass'y (Std.)

Note: (Incl. 43)

$

$

Currently unavailable

41

Briggs & Stratton 35774A

Piston & Pin Ass'y (.010" OS)

Note: (Incl. 43)

$

$

Currently unavailable

41

Briggs & Stratton 35775A

Piston & Pin Ass'y (.020")

Note: (Incl. 43)

$

$

Currently unavailable

42

Briggs & Stratton 35779

Ring Set (Std.)

$

$

Currently unavailable

42

Briggs & Stratton 35780

Ring Set (.010" OS)

$

$

Currently unavailable

42

Briggs & Stratton 35781

Ring Set (.020" OS)

$

$

Currently unavailable

43

Briggs & Stratton 35772

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Briggs & Stratton 36898

Connecting Rod Ass'y.

Note: (Incl. 47 & 49)

$

$

Currently unavailable

47

Briggs & Stratton 651033

Connecting Rod Bolt

$

$

Currently unavailable

48

Briggs & Stratton 34034

Valve Lifter

$

$

Currently unavailable

49

Briggs & Stratton 36896

Oil Dipper

$

$

Currently unavailable

50

Briggs & Stratton 35375

Camshaft (MCR)

$

$

Currently unavailable

60

Briggs & Stratton 33273A

Blower Housing Extension

$

$

Currently unavailable

65

Briggs & Stratton 650128

Screw, 10-24 x 1/2"

$

$

Currently unavailable

69

Briggs & Stratton 35262A

Cylinder Cover Gasket

$

$

Currently unavailable

70

Briggs & Stratton 35376

Cylinder Cover

Note: (Incl. 71, 75 & 80)

$

$

Currently unavailable

71

Briggs & Stratton 35377

Crankshaft Bushing

$

$

Currently unavailable

72

Briggs & Stratton 27642

Oil Pipe Plug

$

$

Not available

75

Briggs & Stratton 35319

Oil Seal

$

$

Currently unavailable

80

Briggs & Stratton 31845

Governor Shaft

$

$

Currently unavailable

81

Briggs & Stratton 30590A

Washer

$

$

Currently unavailable

82

Briggs & Stratton 35378

Governor Gear Ass'y.

Note: (Incl. 81)

$

$

Currently unavailable

83

Briggs & Stratton 30588A

Governor Spool

$

$

Currently unavailable

84

Briggs & Stratton 29193

Retaining Ring
(Superseded to 7029193YP)

$7.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 650833

Screw, 1/4-20 x 1-3/16"

$

$

Currently unavailable

87

Briggs & Stratton 650832

Screw, 1/4-20 x 1-11/16"

$

$

Currently unavailable

89

Briggs & Stratton 32589

Flywheel Key

$

$

Currently unavailable

90

Briggs & Stratton 611091

Flywheel

$

$

Currently unavailable

92

Briggs & Stratton 650880

Lock Washer

$

$

Currently unavailable

93

Briggs & Stratton 650881

Flywheel Nut

$

$

Currently unavailable

94

Briggs & Stratton 651016

Lock Nut, 10-32

$

$

Currently unavailable

95

Briggs & Stratton 30886A

Extension Spring

$

$

Currently unavailable

96

Briggs & Stratton 30845A

R.P.M. Adjusting Bolt

$

$

Currently unavailable

100

Briggs & Stratton 35135

Solid State Ignition

$

$

Currently unavailable

101

Briggs & Stratton 610118

Spark Plug Cover

$

$

Currently unavailable

102

Briggs & Stratton 651024

Solid State Mounting Stud

$

$

Currently unavailable

103

Briggs & Stratton 651007

Screw, Torx T-15, 10-24 x 15/16"

$

$

Currently unavailable

110

Briggs & Stratton 65589

Ground Wire

$

$

Currently unavailable

110A

Briggs & Stratton 36993

Ground Wire

$

$

Currently unavailable

111

Briggs & Stratton 611206

Low Oil Shut-Down Switch

Note: (Incl. 112)

$

$

Currently unavailable

111B

Briggs & Stratton 611224

Rocker On/Off Switch

$

$

Currently unavailable

112

Briggs & Stratton 35967

Low Oil Shutdown Gasket

$

$

Currently unavailable

113

Briggs & Stratton 650950

Screw, Torx T-25, 10-24 x 5/8"

$

$

Currently unavailable

119

Briggs & Stratton 36451

Cylinder Head Gasket

$

$

Currently unavailable

120

Briggs & Stratton 36449

Cylinder Head

$

$

Not available

125

Briggs & Stratton 27878A

Exhaust Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

125

Briggs & Stratton 27880A

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 34035

Intake Valve (Std.)

Note: (Incl. 151)

$

$

Currently unavailable

126

Briggs & Stratton 34036

Intake Valve (1/32" OS)

Note: (Incl. 151)

$

$

Currently unavailable

127

Briggs & Stratton 650691

Washer

$

$

Currently unavailable

128

Briggs & Stratton 650690

Belleville Washer

$

$

Currently unavailable

130

Briggs & Stratton 650694A

Screw, 5/16-18 x 2"

$

$

Currently unavailable

130B

Briggs & Stratton 651031

Screw, 1/4-20 x 9/16"

$

$

Currently unavailable

135

Briggs & Stratton 33636

Resistor Spark Plug (RJ17LM)

$

$

Currently unavailable

139

Briggs & Stratton 33369

Governor Gear Bracket

$

$

Currently unavailable

140

Briggs & Stratton 650836

Screw, 10-24 x 1/2"

$

$

Currently unavailable

149

Briggs & Stratton 27882

Valve Spring Cap

$

$

Currently unavailable

149A

Briggs & Stratton 35862

Valve Spring Cap

$

$

Currently unavailable

150

Briggs & Stratton 27881

Valve Spring

$

$

Currently unavailable

151

Briggs & Stratton 32581

Valve Spring Keeper

$

$

Currently unavailable

169

Briggs & Stratton 27896A

Valve Cover Gasket

$

$

Currently unavailable

170

Briggs & Stratton 28423

Breather Body

$

$

Currently unavailable

171

Briggs & Stratton 28424

Breather Element

$

$

Currently unavailable

172

Briggs & Stratton 28425

Valve Cover
(Superseded to 7035947YP)

$28.99

$

In Stock, only 2 left!

0

173

Briggs & Stratton 36675A

Breather Tube

$

$

Currently unavailable

173A

Briggs & Stratton 32446

Breather Tube Grommet

$

$

Currently unavailable

174

Briggs & Stratton 650128

Screw, 10-24 x 1/2"

$

$

Currently unavailable

178

Briggs & Stratton 29752

Nut & Lock Washer, 1/4-28

$

$

Currently unavailable

182

Briggs & Stratton 30088A

Screw, 1/4-28 x 1"

$

$

Currently unavailable

184

Briggs & Stratton 33263

Carburetor to Intake Pipe Gasket

$

$

Currently unavailable

185

Briggs & Stratton 33877

Intake Pipe

$

$

Currently unavailable

207

Briggs & Stratton 33878

Throttle Link

$

$

Currently unavailable

223

Briggs & Stratton 650378

Screw, Torx T-30, 5/16-18 x 1-1/8"

$

$

Currently unavailable

224

Briggs & Stratton 27915A

Intake Pipe Gasket

$

$

Currently unavailable

238

Briggs & Stratton 28820

Screw, 10-32 x 1/2"
(Superseded to 7045199YP)

$222.99

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 27272A

Air Cleaner Gasket

$

$

Currently unavailable

240

Briggs & Stratton 37104

Air Cleaner Bracket

$

$

Currently unavailable

242

Briggs & Stratton 33267

Air Cleaner Bracket

$

$

Currently unavailable

245

Briggs & Stratton 33268

Air Cleaner Filter

$

$

Currently unavailable

250

Briggs & Stratton 33269A

Air Cleaner Cover

$

$

Currently unavailable

251

Briggs & Stratton 650513

Wing Nut, 1/4-20

$

$

Currently unavailable

260

Briggs & Stratton 36243A

Blower Housing

$

$

Currently unavailable

261

Briggs & Stratton 650788

Screw, 5/16-18 x 3/4"

$

$

Currently unavailable

262

Briggs & Stratton 29747B

Screw, Torx T-40, 5/16-24 x 21/32"

$

$

Currently unavailable

264A

Briggs & Stratton 650802

Screw, 1/4-20 x 5/8"

$

$

Currently unavailable

265

Briggs & Stratton 33272B

Cylinder Head Cover

$

$

Currently unavailable

275

Briggs & Stratton 34185B

Muffler

$

$

Currently unavailable

276

Briggs & Stratton 31588

Locking Plate

$

$

Currently unavailable

277

Briggs & Stratton 650729

Screw, 5/16-18 x 3-3/16

$

$

Currently unavailable

285

Briggs & Stratton 35985B

Starter Cup

$

$

Currently unavailable

287

Briggs & Stratton 29752

Nut & Lock Washer, 1/4-28

$

$

Currently unavailable

290

Briggs & Stratton 30705

Fuel Line

$

$

Currently unavailable

292

Briggs & Stratton 26460

Fuel Line Clamp

$

$

Currently unavailable

311

Briggs & Stratton 35941

Dipstick

Note: (Incl. 312)

$

$

Currently unavailable

312

Briggs & Stratton 29673

"O" Ring

$

$

Not available

324

Briggs & Stratton 33177

Terminal

$

$

Currently unavailable

325

Briggs & Stratton 29443

Wire Clip
(Superseded to 7061017YP)

$

$

Not available

327

Briggs & Stratton 35392

Starter Plug

$

$

Currently unavailable

342

Briggs & Stratton 30063

Screw, Torx T-30, 1/4-20 x 1/2"

$

$

Currently unavailable

361

Briggs & Stratton 650990

Screw, Torx T-30, 1/4-20 x 15/32"

$

$

Currently unavailable

370G

Briggs & Stratton 35274

Oil Instruction Decal

$

$

Currently unavailable

380

Briggs & Stratton 640129

Carburetor

Note: (Incl. 184)

$

$

Currently unavailable

390

Briggs & Stratton 590746

Rewind Starter

$

$

Currently unavailable

395

Briggs & Stratton 36680

Electric Starter Motor (12 Volt)

$

$

Currently unavailable

400

Briggs & Stratton 36454

Gasket Set

Note: (Incl. part #'s 27272A (1), 27896A (2), 27915A (1), 29673 (1), 33263 (1), 33629 (1), 34698A (1), 35262 (1), 35317 (1), 36451 (1)

$

$

Currently unavailable

416

Briggs & Stratton 34479A

Spark Arrestor Kit

Note: (Optional)

$

$

Currently unavailable

900

Rep. Short Block 756282B, Order from 71-999

Note: (NSP)

$

$

Not available
