580.327161 (9450-1) - Craftsman 5,000 Watt Portable Generator 4-Cycle Engine Parts Diagram

5,000 Watt Portable Generator

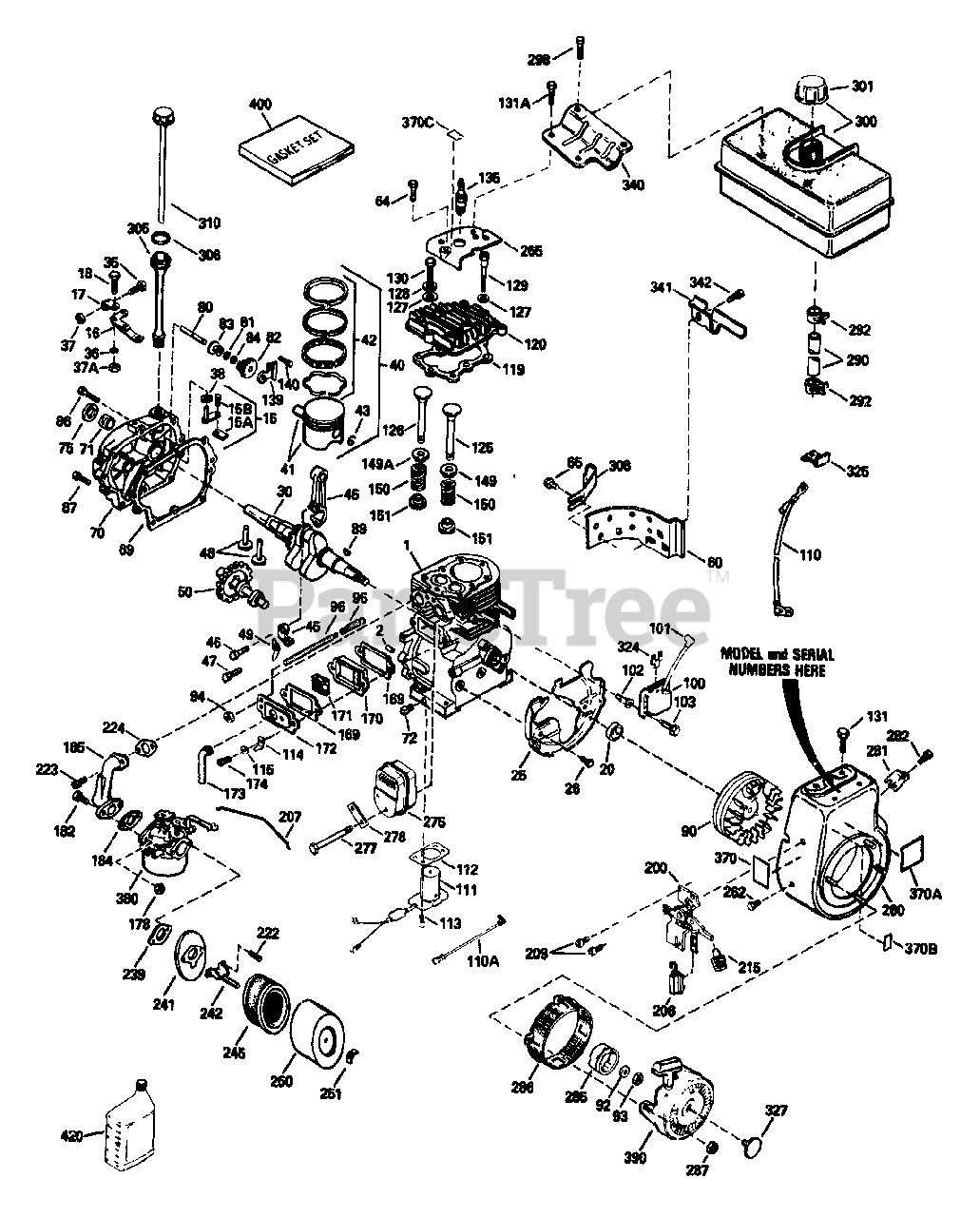

4-Cycle Engine Parts Diagram

  • Title

1

Briggs & Stratton 35968

Cylinder

Note: (Includes 2 & 20)

$

$

Currently unavailable

2

Briggs & Stratton 27652

Dowel Pin
(Superseded to 7027652YP)

$106.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 30699C

Governor Rod Assy.

Note: (Incl. 15A & 15B); Contact Generac for quantity required

$

$

Currently unavailable

15A

Briggs & Stratton 30700

Governor Yoke

$

$

Currently unavailable

15B

Briggs & Stratton 650494

No. 6-40 x 5/16" Screw

$

$

Currently unavailable

16

Briggs & Stratton 33454

Governor Lever

$

$

Currently unavailable

17

Briggs & Stratton 29916

Governor Lever Clamp

$

$

Currently unavailable

18

Briggs & Stratton 650548

No. 8-32 x 5/16" Hex Screw

$

$

Currently unavailable

20

Briggs & Stratton 35319

Oil Seal

$

$

Currently unavailable

25

Briggs & Stratton 35326

Blower Housing Baffler

$

$

Currently unavailable

26

Briggs & Stratton 650561

1/4-20 x 5/8" Hex Screw

$

$

Currently unavailable

30

Briggs & Stratton 35441

Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

35

Briggs & Stratton 29826

No. 10-32 x 3/4" Hex Screw

$

$

Currently unavailable

36

Briggs & Stratton 29918

Lock Washer

$

$

Currently unavailable

37

Briggs & Stratton 29216

No. 10-32 Nut & Lock Washer
(Superseded to 7029216YP)

$78.99

$

Usually ships in 2-12 days

0

37A

Briggs & Stratton 30322

No. 8-32 Lock Nut

$

$

Currently unavailable

38

Briggs & Stratton 29642

Retaining Ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 35776

Piston, Pin & Ring Assy. (STD)

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 35777

Piston, Pin & Ring Assy. (0.01 O.S.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 35778

Piston, Pin & Ring Assy. (0.02 O.S.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 35773

Piston & Pin Assy. (STD.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 35774

Piston & Pin Assy. (0.01 O.S.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 35775

Piston & Pin Assy. (0.02 O.S.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 35779

Piston Ring Set (STD.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 35780

Piston Ring Set (0.01 O.S.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 35781

Piston Ring Set (0.02 O.S.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

43

Briggs & Stratton 35772

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Briggs & Stratton 35681

Connecting Rod Assy.

$

$

Currently unavailable

46

Briggs & Stratton 650908

Connecting Rod Bolt

$

$

Currently unavailable

47

Briggs & Stratton 650882

Connecting Rod Bolt

$

$

Currently unavailable

48

Briggs & Stratton 34034

Valve Lifter

$

$

Currently unavailable

49

Briggs & Stratton 35374

Oil Dipper

$

$

Currently unavailable

50

Briggs & Stratton 35375

Camshaft

$

$

Currently unavailable

60

Briggs & Stratton 33273A

Blower Housing

$

$

Currently unavailable

64

Briggs & Stratton 650802

1/4-20 x 5/8" Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 650128

No. 10-24 x 1/2" Screw

$

$

Currently unavailable

69

Briggs & Stratton 35262

Cylinder Cover Gasket

Note: Included in Gasket Set, P/N 33279G

$

$

Currently unavailable

70

Briggs & Stratton 35376

Cyliner Cover Assy.

$

$

Currently unavailable

71

Briggs & Stratton 35377

Cylinder Cover Bushing

$

$

Currently unavailable

72

Briggs & Stratton 27642

Pipe Plug

$

$

Not available

75

Briggs & Stratton 35319

Oil Seal

$

$

Currently unavailable

80

Briggs & Stratton 31845

Governor Shaft

$

$

Currently unavailable

81

Briggs & Stratton 30590A

Flat Washer

$

$

Currently unavailable

82

Briggs & Stratton 35378

Governor Gear

$

$

Currently unavailable

83

Briggs & Stratton 30588A

Governor Spool

$

$

Currently unavailable

84

Briggs & Stratton 29193

Retaining Ring
(Superseded to 7029193YP)

$7.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 650833

1/4-20 x 1-3/16" Screw

$

$

Currently unavailable

87

Briggs & Stratton 650832

1/4-20 x 1-11/16" Screw

$

$

Currently unavailable

89

Briggs & Stratton 32589

Flywheel Key

$

$

Currently unavailable

90

Briggs & Stratton 611090

Flywheel

$

$

Currently unavailable

92

Briggs & Stratton 650880

Lock Washer

$

$

Currently unavailable

93

Briggs & Stratton 650881

Flywheel Nut

$

$

Currently unavailable

94

Briggs & Stratton 33450

No. 10-32 Lock Nut

$

$

Currently unavailable

95

Briggs & Stratton 30886A

Governor Bolt Spring

$

$

Currently unavailable

96

Briggs & Stratton 30845A

Gov. Spring Adjusting Bolt

$

$

Currently unavailable

100

Briggs & Stratton 35135

Solid State Assembly

$

$

Currently unavailable

101

Briggs & Stratton 610118

Spark Plug Cover

$

$

Currently unavailable

102

Briggs & Stratton 650872

Solid State Mounting Stud

$

$

Currently unavailable

103

Briggs & Stratton 650814

No. 10-24 x 1" Torx Screw

$

$

Currently unavailable

110

Briggs & Stratton 35187

Ground Wire

Note: Contact Generac for quantity required

$

$

Currently unavailable

110A

Briggs & Stratton 35987

Oil Shutdown Wire & Term. Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

111

Briggs & Stratton 611162

Low Oil Shutdown Device

$

$

Currently unavailable

112

Briggs & Stratton 35967

Low Oil Shutdown Gasket

$

$

Currently unavailable

113

Briggs & Stratton 650950

No. 10-24 x 5/8" Screw

$

$

Currently unavailable

114

Briggs & Stratton 33932

Ground Terminal

$

$

Currently unavailable

115

Briggs & Stratton 650518

Lock Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

119

Briggs & Stratton 34923A

Cylinder Head Gasket

Note: Included in Gasket Set, P/N 33279G

$

$

Currently unavailable

120

Briggs & Stratton 34030

Cylinder Head

$

$

Currently unavailable

125

Briggs & Stratton 27878A

Std. Exhaust Valve

$

$

Currently unavailable

125

Briggs & Stratton 27880A

O.S. Exhaust Valve

$

$

Currently unavailable

126

Briggs & Stratton 34035

Std. Intake Valve

$

$

Currently unavailable

126

Briggs & Stratton 34036

O.S. Intake Valve

$

$

Currently unavailable

127

Briggs & Stratton 650691

Flat Washer

$

$

Currently unavailable

128

Briggs & Stratton 650690

Belleville Washer

$

$

Currently unavailable

129

Briggs & Stratton 650727

5/16-18 x 1-3/4" Screw

$

$

Currently unavailable

130

Briggs & Stratton 650694A

5/16-18 x 2" Flange Screw

$

$

Currently unavailable

131

Briggs & Stratton 650788

5/16-18 x 3/4" Screw

$

$

Currently unavailable

131A

Briggs & Stratton 650713

5/16-18 x 5/8" Screw

$

$

Currently unavailable

135

Briggs & Stratton 33636

Spark Plug (RJ-17LM)

$

$

Currently unavailable

139

Briggs & Stratton 33369

Governor Gear Bracket

$

$

Currently unavailable

140

Briggs & Stratton 650836

No. 10-24 x 1/2" Screw

$

$

Currently unavailable

149

Briggs & Stratton 27882

Upper Valve Spring Cap

$

$

Currently unavailable

149A

Briggs & Stratton 35862

Intake Valve Seal Assembly

$

$

Currently unavailable

150

Briggs & Stratton 27881

Valve Spring

$

$

Currently unavailable

151

Briggs & Stratton 32581

Lower Valve Spring Cap

$

$

Currently unavailable

169

Briggs & Stratton 27896A

Breather Gasket

Note: Included in Gasket Set, P/N 33279G

$

$

Currently unavailable

170

Briggs & Stratton 28423

Breather Body

$

$

Currently unavailable

171

Briggs & Stratton 28424

Breather Element

$

$

Currently unavailable

172

Briggs & Stratton 28425

Breather Cover
(Superseded to 7035947YP)

$28.99

$

In Stock, only 2 left!

0

173

Briggs & Stratton 35350

Breather Tube

$

$

Currently unavailable

174

Briggs & Stratton 650128

No. 10-24 x 1/2" Screw

$

$

Currently unavailable

178

Briggs & Stratton 29752

1/4-28 Lock Nut

$

$

Currently unavailable

182

Briggs & Stratton 30088A

1/4-28 x 1" Screw

$

$

Currently unavailable

184

Briggs & Stratton 33263

Carburetor Gasket

Note: Included in Gasket Set, P/N 33279G

$

$

Currently unavailable

185

Briggs & Stratton 33877

Intake Pipe

$

$

Currently unavailable

200

Briggs & Stratton 34677

Control Bracket Assembly

$

$

Currently unavailable

206

Briggs & Stratton 610973

Terminal Assembly

$

$

Currently unavailable

207

Briggs & Stratton 33878

Governor-to-Throttle Link

$

$

Currently unavailable

209

Briggs & Stratton 650821

No. 10-32 x 1/2" Screw

$

$

Currently unavailable

215

Briggs & Stratton 32410

Control Knob

$

$

Currently unavailable

222

Briggs & Stratton 28820

No. 10-32 x 1/2" Screw
(Superseded to 7045199YP)

$222.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 65037~

5/16-18 x 1-1/8" Screw

$

$

Currently unavailable

224

Briggs & Stratton 27915A

Intake Pipe Gasket

Note: Included in Gasket Set, P/N 33279G

$

$

Currently unavailable

239

Briggs & Stratton 27272A

Air Cleaner Gasket

Note: Included in Gasket Set, P/N 33279G

$

$

Currently unavailable

241

Briggs & Stratton 33266

Air Cleaner Bracket

$

$

Currently unavailable

242

Briggs & Stratton 33267

Air Cleaner Bracket

$

$

Currently unavailable

245

Briggs & Stratton 33268

Air Cleaner Element

$

$

Currently unavailable

250

Briggs & Stratton 33269A

Air Cleaner Cover

$

$

Currently unavailable

251

Briggs & Stratton 650513

1/4-20 Wing Nut

$

$

Currently unavailable

260

Briggs & Stratton 36236

Blower Housing

$

$

Currently unavailable

262

Briggs & Stratton 29747B

5/16-24 x 21/32" Screw

$

$

Currently unavailable

265

Briggs & Stratton 33272B

Cylinder Head Cover

$

$

Currently unavailable

275

Briggs & Stratton 35056

Muffler

$

$

Currently unavailable

276

Briggs & Stratton 31588

Lock Plate

$

$

Currently unavailable

277

Briggs & Stratton 792093

5/16-18 x 4-3/16" Screw

$

$

Currently unavailable

281

Briggs & Stratton 33013

Starter Hole Cover

$

$

Currently unavailable

282

Briggs & Stratton 650760

No. 8-32 x 3/8" Screw

$

$

Currently unavailable

285

Briggs & Stratton 35985

Starter Hub

$

$

Currently unavailable

286

Briggs & Stratton 35446

Starter Screen

$

$

Currently unavailable

287

Briggs & Stratton 29752

1/4-28 Nut & Lock Washer

$

$

Currently unavailable

290

Briggs & Stratton 30705

Fuel Line

$

$

Currently unavailable

292

Briggs & Stratton 26460

Fuel Line Clamp

$

$

Currently unavailable

298

Briggs & Stratton 650665

1/4-15 x 7/8" Screw

$

$

Currently unavailable

300

Briggs & Stratton 34156A

Fuel Tank Assembly

$

$

Currently unavailable

301

Briggs & Stratton 35355

Fuel Tank Cap

$

$

Currently unavailable

305

Briggs & Stratton 35554

Oil Filler Tube

$

$

Currently unavailable

306

Briggs & Stratton 35499

"O" Ring

$

$

Currently unavailable

308

Briggs & Stratton 35540

Oil Fill Tube Clip

$

$

Currently unavailable

310

Briggs & Stratton 36205

Oil Dipstick

$

$

Currently unavailable

324

Briggs & Stratton 33177

Terminal Lamination

$

$

Currently unavailable

325

Briggs & Stratton 29443

Wire Clip
(Superseded to 7061017YP)

$

$

Not available

327

Briggs & Stratton 35392

Starter Plug

$

$

Currently unavailable

340

Briggs & Stratton 34155

Fuel Tank Bracket

$

$

Currently unavailable

341

Briggs & Stratton 34154

Fuel Tank Mounting Plate
(Superseded to 34154GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

342

Briggs & Stratton 650561

1/4-20 x 5/8" Screw

$

$

Currently unavailable

370

Briggs & Stratton 34346

Instruction Decal

$

$

Currently unavailable

370A

Briggs & Stratton 34686

Name Decal

$

$

Currently unavailable

370B

Briggs & Stratton 33107

Control Decal

$

$

Currently unavailable

370C

Briggs & Stratton 35274

Instruction Decal

$

$

Currently unavailable

380

Briggs & Stratton 632596

Carburetor

Note: (Incl. No. 184)

$

$

Currently unavailable

390

Briggs & Stratton 590671

Rewind Starter

$56.99

$

Usually ships in 2-12 days

0

400

Briggs & Stratton 33279G

Gasket Set

$

$

Currently unavailable

420

Briggs & Stratton 730225

SAE30 4-cycle Engine Oil (quart)

Note: Contact Generac for quantity required

$

$

Currently unavailable
