580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Cylinder Head Assembly Parts Diagram

10,000 Watt Portable Generator

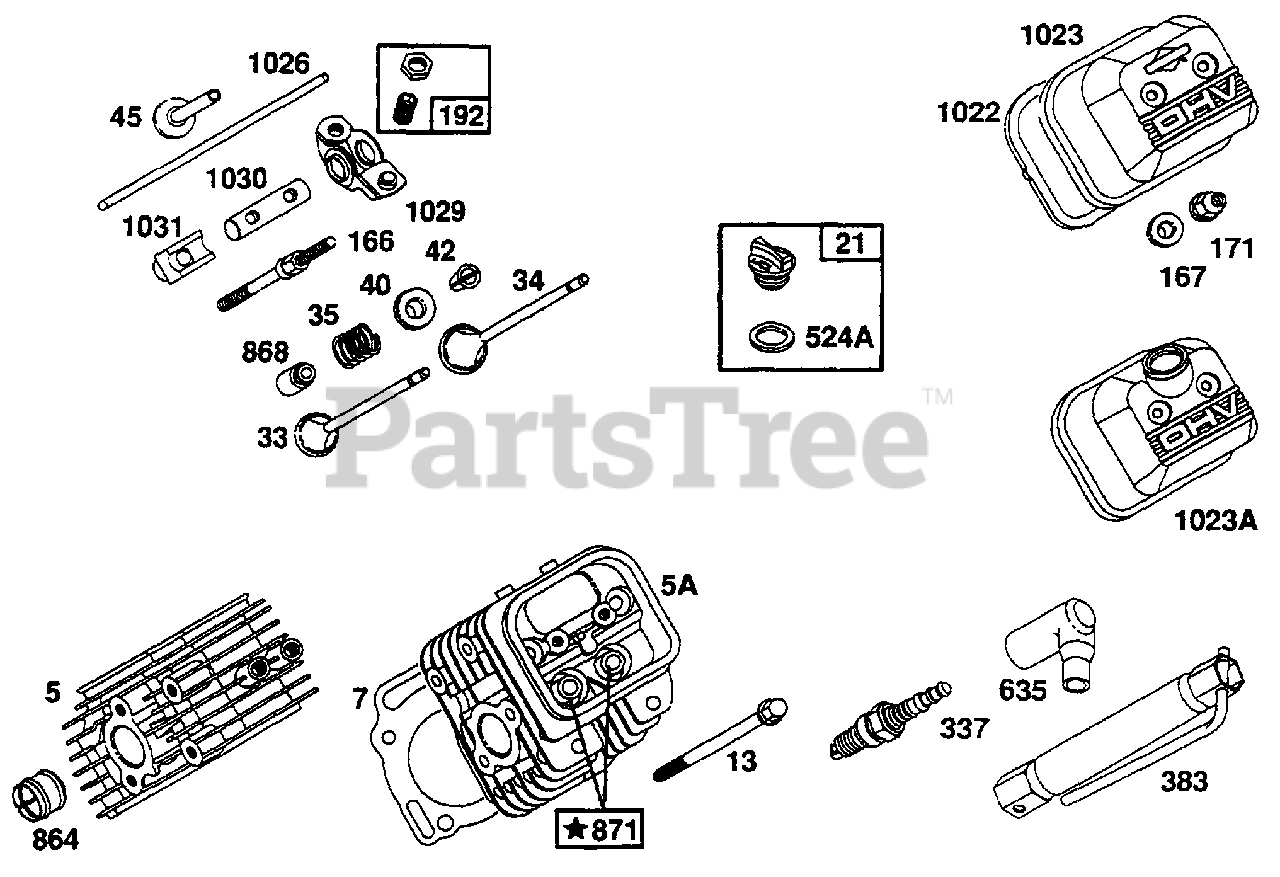

Cylinder Head Assembly Parts Diagram

  • Title

5

Briggs & Stratton 807821

Head-Cylinder
(Superseded to 845486)

Note: (Cyl. #1)

$232.99

$

In Stock, only 1 left!

0

5A

Briggs & Stratton 807822

Head-Cylinder
(Superseded to 809186)

Note: (Cyl. #2)

$220.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 805653

Gasket-Cylinder Head
(Superseded to 805653S)

Note: Included in Gasket Set-Part No. 808248 and Valve Overhaul Kit-Part No. 807668.

$35.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 805097

Screw-Cylinder Head
(Superseded to 692059)

$3.99

$

In Stock, only 4 left!

0

21

Briggs & Stratton 491832

Plug Oil Fill
(Superseded to 809500)

$10.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 805089

Valve-Exhaust
(Superseded to 807681)

$43.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 805090

Valve-intake
(Superseded to 807680)

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 805937

Spring-Valve
(Superseded to 692084)

$6.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 805092

Retainer-Valve
(Superseded to 692058)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 805161

Keeper-Valve
(Superseded to 844788)

$6.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

$7.99

$

In Stock, only 3 left!

0

166

Briggs & Stratton 805343

Stud-Rocker Arm

$

$

Not available

167

Briggs & Stratton 805420

Washer-Valve Cover
(Superseded to 691766)

Note: Included in Gasket Set-Part No. 808248 and Valve Overhaul Kit-Part No. 807668.

$6.49

$

In Stock, Qty 20+

0

171

Briggs & Stratton 6805019

Nut-Nylock

Note: Included in Valve Overhaul Kit-Part No. 807668.

$

$

Currently unavailable

192

Briggs & Stratton 807623

Screw-Valve Adjustment

Note: (Includes: Jam Nut)

$11.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, Qty 5

0

524A

Briggs & Stratton 271983

Seal-Fill Plug
(Superseded to 809500)

$10.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 805529

Boot-Spark Plug
(Superseded to 692076)

$5.49

$

In Stock, Qty 8

0

864

Briggs & Stratton 805083

Adapter-Muffler
(Superseded to 691493)

$12.99

$

In Stock, only 1 left!

0

868

Briggs & Stratton 805094

Seal-Valve
(Superseded to 691963)

$10.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 805084

Bushing-Guide
(Superseded to 692057)

$12.99

$

In Stock, Qty 9

0

1022

Briggs & Stratton 805028

Gasket-Rocker Cover
(Superseded to 806039S)

Note: Included in Gasket Set-Part No. 808248 and Valve Overhaul Kit-Part No. 807668.

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 805100

Cover-Rocker
(Superseded to 691494)

$17.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 808032

Cover-Rocker
(Superseded to 690910)

$45.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 805352

Rod-Push (Steel)
(Superseded to 691836)

$12.99

$

In Stock, Qty 18

0

1026

Briggs & Stratton 805617

Rod-Push (Aluminum)
(Superseded to 691758)

Note: Used on Exhaust Side Only

$11.99

$

In Stock, only 4 left!

0

1029

Briggs & Stratton 808096

Arm-Rocker

$

$

Not available

1030

Briggs & Stratton 805342

Shaft-Rocker Arm
(Superseded to 690693)

$13.99

$

Usually ships in 2-12 days

0

1031

Briggs & Stratton 805341

Support-Rocker Arm

$

$

Not available

Briggs & Stratton 808248

Gasket Set
(Superseded to 847319)

$123.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807668

Valve Overhaul Kit
(Superseded to 808392)

$83.99

$

In Stock, only 2 left!

0
