580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Governor Assembly Parts Diagram

10,000 Watt Portable Generator

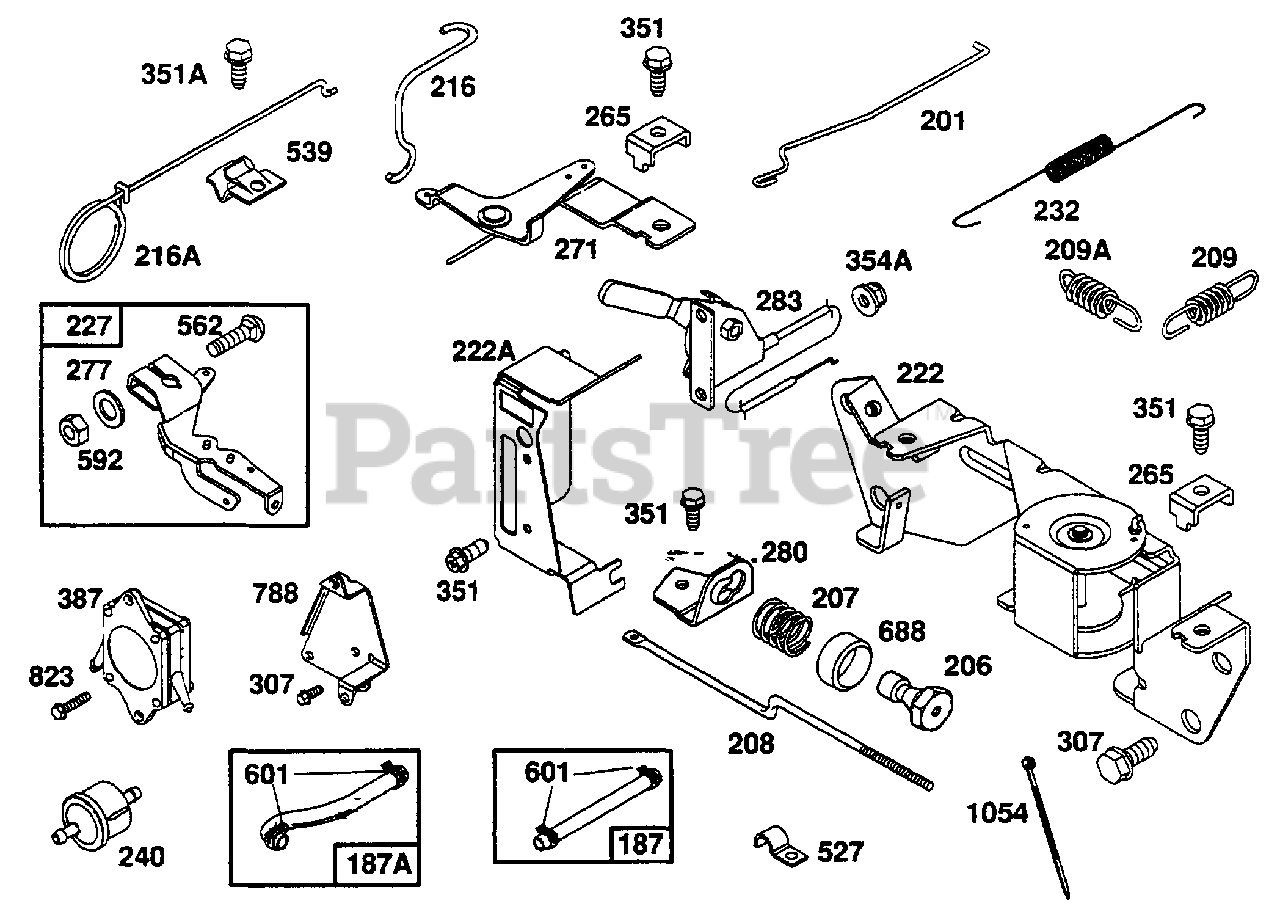

Governor Assembly Parts Diagram

  • Title

187

Briggs & Stratton 393815

Line-Fuel
(Superseded to 791880)

Note: (11" Long)

$

$

Not available

187

Briggs & Stratton 296004

Line-Fuel
(Superseded to 791745)

Note: (23" Long, Cut to Required Length)

$11.99

$

In Stock, Qty 10

0

187A

Briggs & Stratton 398367

Line-Fuel
(Superseded to 791744)

Note: (Cut to Required Length)

$16.99

$

In Stock, only 2 left!

0

201

Briggs & Stratton 806007

Link
(Superseded to 691536)

$10.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 805470

Nut-Speed Control
(Superseded to 808453)

$16.99

$

In Stock, only 2 left!

0

207

Briggs & Stratton 805473

Spring-Control Rod
(Superseded to 691272)

$14.99

$

In Stock, only 1 left!

0

208

Briggs & Stratton 805471

Rod-Control
(Superseded to 808453)

$16.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 805460

Spring-Governor
(Superseded to 692070)

$6.49

$

In Stock, Qty 7

0

209

Briggs & Stratton 805455

Spring-Governor
(Superseded to 691506)

Note: Used on Type No(s). 0042, 0142

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 805456

Spring-Governor
(Superseded to 690709)

Note: Used on Type No(s). 0115, 1115

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 805461

Spring-Governor
(Superseded to 690710)

Note: Used on Type No(s). 0182, 1182

$7.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 805462

Spring-Governor
(Superseded to 692071)

Note: Used on Type No(s). 0064, 1164

$8.49

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 805453

Spring-Governed Idle
(Superseded to 692069)

$6.99

$

In Stock, Qty 14

0

209A

Briggs & Stratton 805450

Spring-Gov. (Secondary)
(Superseded to 692068)

Note: Used on Type No(s). 0042, 0142

$5.49

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 805451

Spring-Gov. (Secondary)
(Superseded to 690707)

Note: Used on Type No(s). 0115, 1115

$7.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 806019

Link
(Superseded to 691542)

$7.49

$

In Stock, Qty 12

0

216A

Briggs & Stratton 805509

Rod-Manual Choke
(Superseded to 692075)

$10.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 807610

Bracket-Control
(Superseded to 808454)

$40.99

$

In Stock, only 2 left!

0

222A

Briggs & Stratton 805627

Bracket-Control
(Superseded to 690742)

$67.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 807528

Lever Assy.-Gov.
(Superseded to 690236)

$29.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 806009

Spring-Link
(Superseded to 691538)

$10.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 493629

Filter-Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

271

Briggs & Stratton 808145

Lever-Control
(Superseded to 690923)

$16.99

$

Usually ships in 2-12 days

0

277

Briggs & Stratton 805018

Washer
(Superseded to 842122)

$5.49

$

Usually ships in 2-12 days

0

280

Briggs & Stratton 805472

Bracket-Rod
(Superseded to 691526)

$10.99

$

Usually ships in 2-12 days

0

283

Briggs & Stratton 807763

Lever Assy.-Control
(Superseded to 692541)

$43.99

$

In Stock, Qty 6

0

307

Briggs & Stratton 805025

Screw-Sem
(Superseded to 692056)

$5.99

$

In Stock, only 4 left!

0

351

Briggs & Stratton 805169

Screw-Hex Head
(Superseded to 841552)

$3.99

$

In Stock, only 2 left!

0

351A

Briggs & Stratton 805762

Screw-Hex Head
(Superseded to 692083)

$3.99

$

In Stock, only 2 left!

0

354A

Briggs & Stratton 805496

Nut-Lock
(Superseded to 690713)

$

$

Not available

387

Briggs & Stratton 491922

Pump-Fuel
(Superseded to 808656)

$30.99

$

In Stock, Qty 20+

0

527

Briggs & Stratton 223167

Clamp-Fuel Pipe
(Superseded to 690423)

$5.49

$

Usually ships in 2-12 days

0

539

Briggs & Stratton 221372

Clip-Control Rod
(Superseded to 691723)

$7.49

$

In Stock, Qty 12

0

562

Briggs & Stratton 805381

Bolt
(Superseded to 690239)

$5.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 805383

Nut-Hex
(Superseded to 690238)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, only 4 left!

0

688

Briggs & Stratton 805485

Cap-Spring
(Superseded to 691509)

$6.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 807685

Bracket-Fuel Pump
(Superseded to 691559)

$25.99

$

In Stock, only 1 left!

0

823

Briggs & Stratton 805317

Screw-Mounting
(Superseded to 807084)

$3.99

$

In Stock, only 2 left!

0

1054

Briggs & Stratton 280275

Tie-Wire

$4.49

$

Usually ships in 2-12 days

0
