580.327280 (9782-0) - Craftsman 5,500 Watt Portable Generator GN-360 Engine & Flywheel Assy - No. 81645 Parts Diagram

5,500 Watt Portable Generator

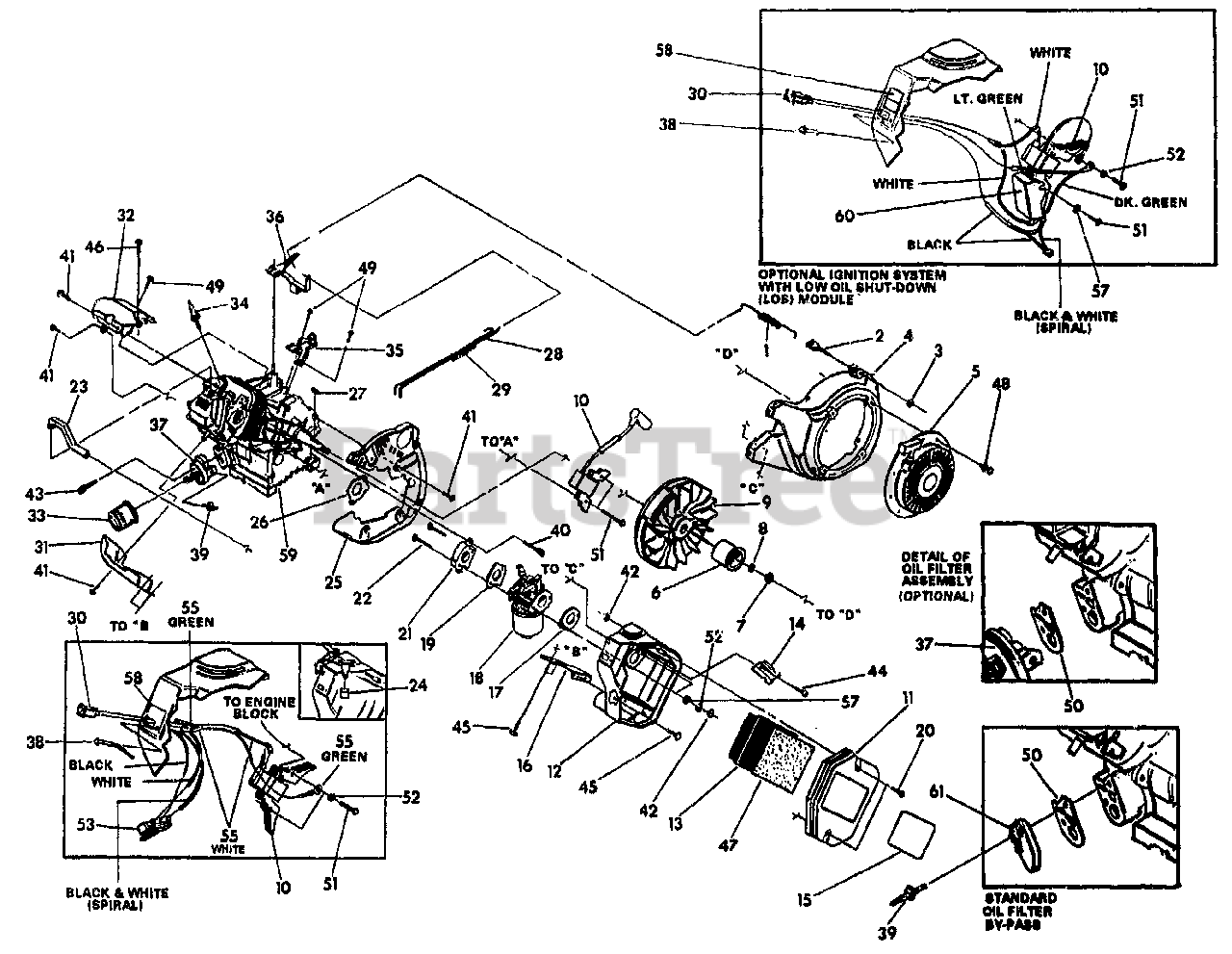

GN-360 Engine & Flywheel Assy - No. 81645 Parts Diagram

  • Title

1

Briggs & Stratton 73100

GOVERNOR SPRING
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 83502

GOVERNOR ADJUST BOLT - M5

$

$

Not available

3

Briggs & Stratton 83503

METAL LOCK NUT - M5-0.8

$

$

Currently unavailable

4

Briggs & Stratton 92437

BLOWER HOUSING ASSEMBLY

$

$

Currently unavailable

5

Briggs & Stratton 81642

RECOIL ASSEMBLY

$

$

Currently unavailable

6

Briggs & Stratton 81641

RECOIL CUP

$

$

Currently unavailable

7

Briggs & Stratton 67890

FLYWHEEL HEX NUT

$

$

Not available

8

Briggs & Stratton 67198N

BEVEL WASHER

$

$

Currently unavailable

9

Briggs & Stratton 77147A

FLYWHEEL ASSEMBLY

$

$

Currently unavailable

10

Briggs & Stratton 84542

IGNITION COIL ASSEMBLY

$

$

Currently unavailable

11

Briggs & Stratton 73104

AIR CLEANER COVER

$

$

Currently unavailable

12

Briggs & Stratton 73108

AIR CLEANER BASE

$

$

Currently unavailable

13

Briggs & Stratton 73111

AIR CLEANER ELEMENT
(Superseded to 73111GS)

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 91204

SPIT BACK PLATE

$

$

Not available

15

Briggs & Stratton 92896

AIR BOX DECAL
(Superseded to 92896GS)

$26.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 90827

AIR BOX BRACKET

$

$

Not available

17

Briggs & Stratton 90970

AIR CLEANER GASKET
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91187

CARBURETOR
(Superseded to 7091187SM)

$3.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 89228

CARBURETOR/MANIFOLD GASKET

$

$

Not available

20

Briggs & Stratton 78609

AIR CLEANER COVER BOLT

$

$

Not available

21

Briggs & Stratton 91028

ADAPTOR "K"
(Superseded to 7091028YP)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 81647

CARBURETOR MOUNTING BOLT

$

$

Not available

23

Briggs & Stratton 72745

BREATHER HOSE
(Superseded to 7072745YP)

$319.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 83504

CHOKE KNOB

$

$

Not available

25

Briggs & Stratton 73116A

BLOWER HOUSING BACKPLATE

$

$

Currently unavailable

26

Briggs & Stratton 91039

INTAKE ADAPTOR GASKET
(Superseded to 7091039YP)

$3.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 82774

WOODRUFF KEY 4 x 190

$

$

Not available

28

Briggs & Stratton 72735

GOVERNOR CONTROL ROD

$

$

Not available

29

Briggs & Stratton 72789

GOVERNOR ANTI-LASH SPRING

$

$

Currently unavailable

30

Briggs & Stratton 78653

ENGINE SHUT-OFF SWITCH
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 88434

BOTTOM WRAPPER

$

$

Currently unavailable

32

Briggs & Stratton 88433

TOP WRAPPER

$

$

Currently unavailable

33

Briggs & Stratton 70185

OIL FILTER
(Superseded to 70185GS)

Note: (OPTIONAL)

$14.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 72347

SPARK PLUG (CHAMPION 12YC)
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 73101

BRACKET, GOVERNOR ADJUST WITH IDLE CONTROL

$

$

Currently unavailable

36

Briggs & Stratton 72734

GOVERNOR LEVER ASSEMBLY

$

$

Not available

37

Briggs & Stratton 86931

OIL FILTER ADAPTOR

$

$

Currently unavailable

38

Briggs & Stratton 82545

LOW OIL INDICATOR LAMP

$

$

Currently unavailable

39

Briggs & Stratton 60108

LOW OIL PRESSURE SWITCH

$

$

Not available

40

Briggs & Stratton 40945

SOCKET HEAD CAPSCREW - M6-1.0 x 20mm
(Superseded to 40945GS)

$3.49

$

In Stock, only 2 left!

0

41

Briggs & Stratton 45756

TAPTITE SCREW, M6-1.0 x 10mm

$

$

Not available

42

Briggs & Stratton 49813

HEX NUT, M6-1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 49821

SOCKET HEAD CAPSCREW - M8-1.25 x 30mm

$

$

Not available

44

Briggs & Stratton 59635

PLASTITE SCREW - #8 x 3/8"

$

$

Currently unavailable

45

Briggs & Stratton 66476

HEX HEAD CAPSCREW, M6-1.0 x 12mm
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 67899

HEX HEAD CAPSCREW, M6-1.0 x 8mm

$

$

Currently unavailable

47

Briggs & Stratton 81646

AIR FILTER PRE-CLEANER

$

$

Not available

48

Briggs & Stratton 81668

HEX HEAD CAPSCREW, M6-1.0 x 10mm

$

$

Not available

49

Briggs & Stratton 83512

TAPTITE SCREW, M8-1.25 x 15mm
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 86999

OIL FILTER ADAPTOR GASKET

$

$

Not available

51

Briggs & Stratton 92079

TAPTITE SCREW, M6-1.0 x 25mm
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22097

M6 LOCKWASHER
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 84329

3-PIN MALE HOUSING

$

$

Currently unavailable

55

Briggs & Stratton 92981

IGNITION WIRE ASSEMBLY

$

$

Currently unavailable

57

Briggs & Stratton 49811

M6 FLAT WASHER
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 93104

LOS ENGINE DECAL

$

$

Currently unavailable

59

Briggs & Stratton 83916

GN-360 ENGINE

$

$

Currently unavailable

60

Briggs & Stratton 86957

LOS MODULE

$

$

Currently unavailable

61

Briggs & Stratton 72709

OIL FILTER PAD COVER
(Superseded to 7072709YP)

$67.99

$

Usually ships in 2-12 days

0
