580.327700 (0647-0) - Craftsman 2,000 Watt Portable Generator 4-Cycle Engine V Parts Diagram

2,000 Watt Portable Generator

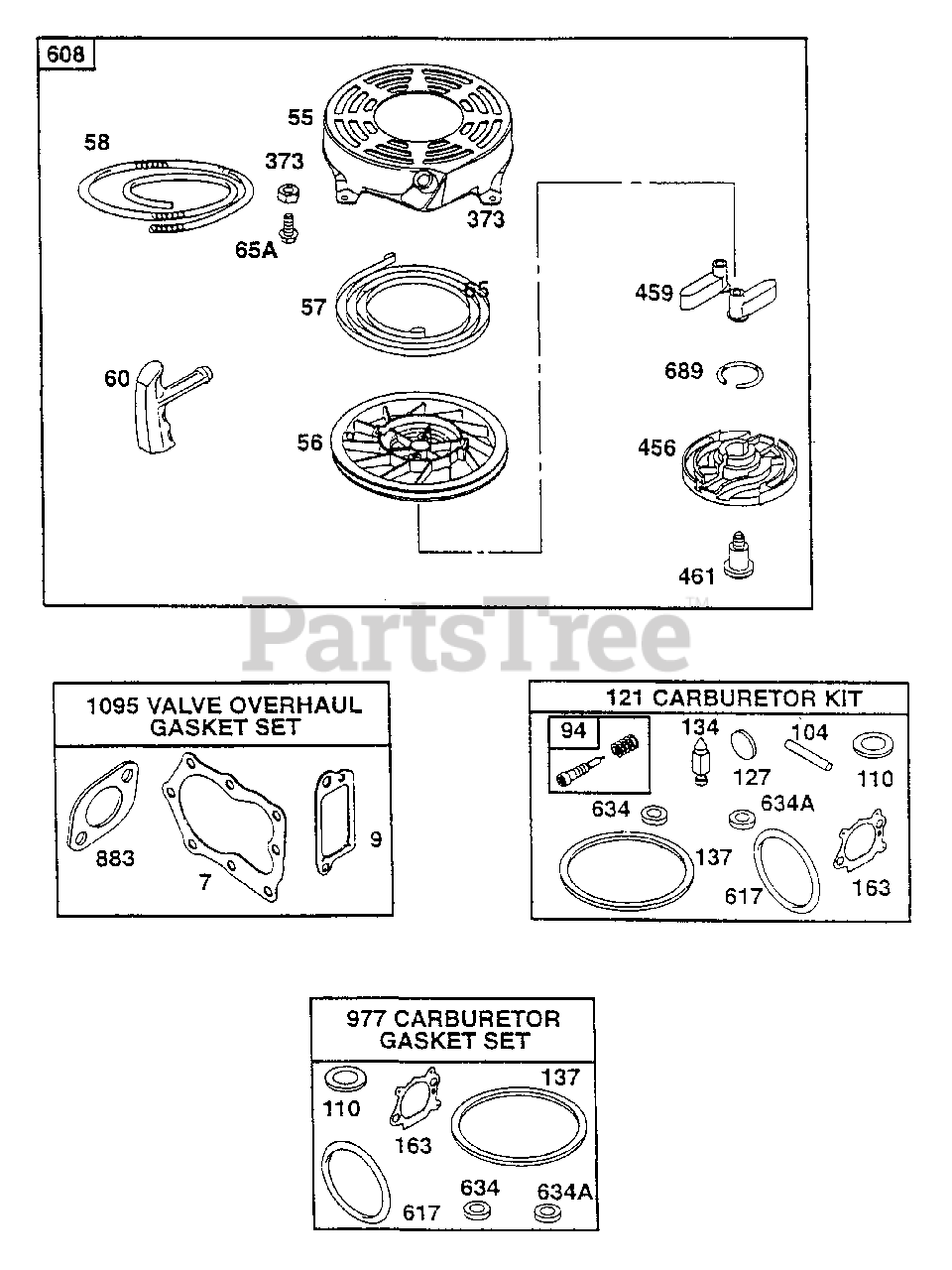

4-Cycle Engine V Parts Diagram

  • Title

7

Briggs & Stratton 272916

Cylinder Head Gasket
(Superseded to 692249)

$8.99

$

In Stock, Qty 12

0

9

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

$5.99

$

In Stock, only 3 left!

0

55

Briggs & Stratton 497440

Rewind Starter Housing
(Superseded to 691421)

$67.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 281504

Starter Pulley
(Superseded to 498144)

$19.99

$

In Stock, Qty 17

0

57

Briggs & Stratton 263074

Rewind Starter Spring
(Superseded to 498144)

$19.99

$

In Stock, Qty 17

0

58

Briggs & Stratton 280399

Starter Rope
(Superseded to 280399S)

Note: Cut to Required Length

$6.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 281434

Starter Rope Grip
(Superseded to 281434S)

$3.99

$

In Stock, only 2 left!

0

65

Briggs & Stratton 94696

Phillips Screw
(Superseded to 690700)

$4.49

$

In Stock, Qty 20+

0

65A

Briggs & Stratton 94904

Hex Screw
(Superseded to 690837)

$3.49

$

In Stock, Qty 15

0

94

Briggs & Stratton 493765

Idle Adjust Valve

$15.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Float Hinge Pin
(Superseded to 797622)

$4.49

$

In Stock, Qty 9

0

110

-----

Bowl Washer

Note: Included in Carb & Gasket Kit

$

$

Not available

127

-----

Welch Plug

Note: Sold in kit only

$

$

Not available

134

Briggs & Stratton 398188

Needle Valve

Note: Includes seat

$6.99

$

In Stock, Qty 20+

0

137

-----

Float Bowl Gasket

Note: Sold in kit only

$

$

Not available

163

Briggs & Stratton 272653

Air Cleaner Gasket
(Superseded to 795629)

$3.49

$

In Stock, Qty 17

0

373

Briggs & Stratton 94908

Hex. Nut
(Superseded to 690800)

$4.49

$

In Stock, Qty 11

0

456

Briggs & Stratton 281503

Spring Retainer
(Superseded to 692299)

$4.99

$

In Stock, Qty 9

0

459

Briggs & Stratton 281505

Rachet Pawl
(Superseded to 281505S)

$3.99

$

In Stock, Qty 20+

0

461

Briggs & Stratton 94943

Shoulder Screw
(Superseded to 691696)

$12.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 497680

Rewind Starter

$52.99

$

In Stock, Qty 15

0

617

Briggs & Stratton 270334

Intake Manifold Seal

$

$

Currently unavailable

634

-----

Choke Shaft Seal

Note: Sold in Kit Only

$

$

Not available

634A

-----

Foam Washer

Note: Sold in Kit Only

$

$

Not available

689

Briggs & Stratton 263073

Friction on Spring
(Superseded to 691855)

$4.99

$

In Stock, Qty 6

0

883

Briggs & Stratton 272253

Exhaust Gasket
(Superseded to 691881)

$9.49

$

In Stock, only 4 left!

0
