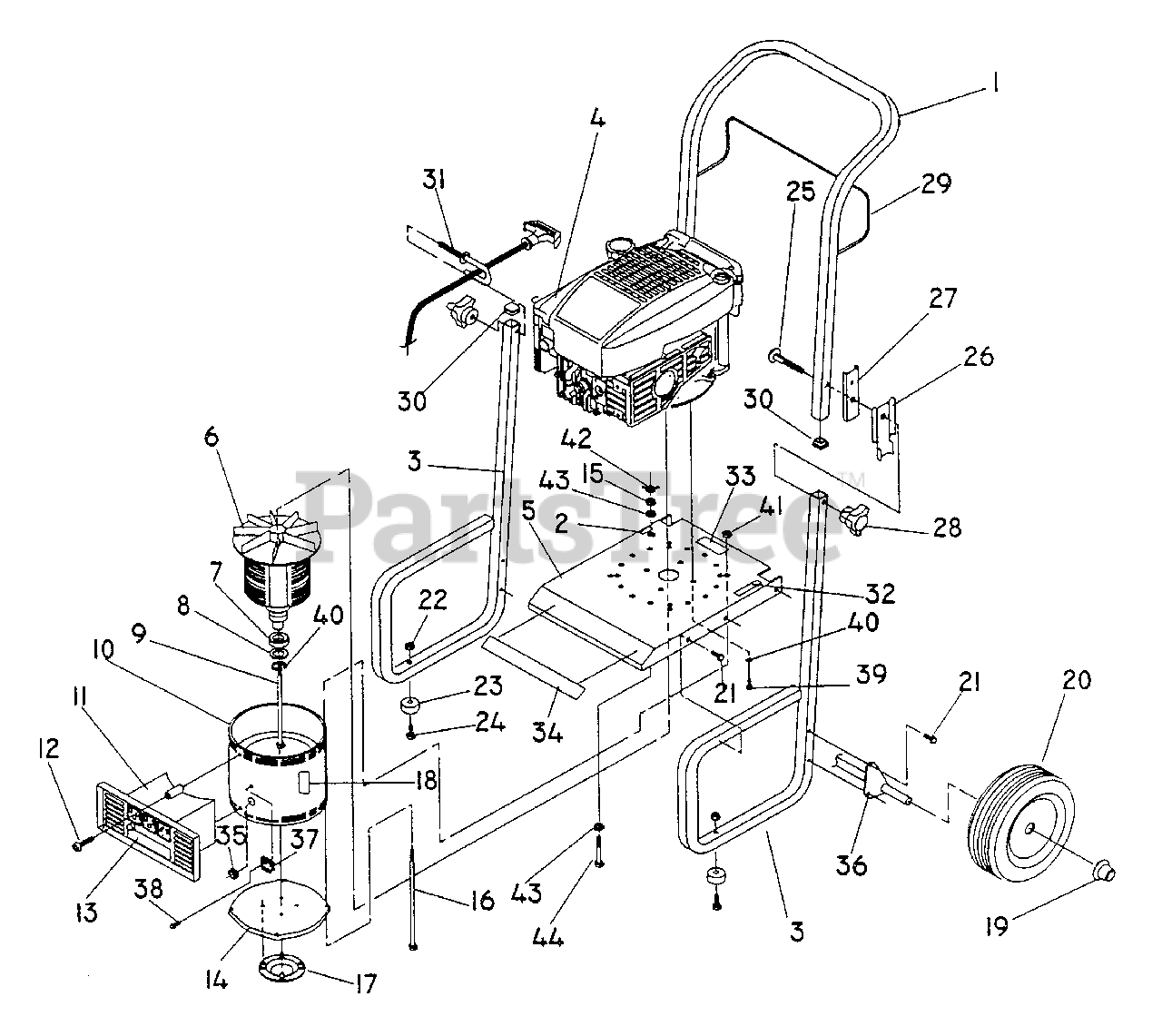

580.327700 (0647-0) - Craftsman 2,000 Watt Portable Generator Main Unit Parts Diagram

2,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 99685

Handle
(Superseded to 99685GS)

$47.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 67210A

Ground Decal
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 99681

Frame
(Superseded to 99681GS)

$40.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 99683

Briggs 5.5 HP - VS Engine

$

$

Currently unavailable

5

Briggs & Stratton 99684

Base Plate

$

$

Not available

6

Briggs & Stratton 99687J

Rotor Assy.

$

$

Not available

7

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

Flat Washer

Note: Special

$

$

Currently unavailable

9

Briggs & Stratton 99849

HHCS, 5/16 - 24 x 5"
(Superseded to 99849GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 99688J

Stator Assy

$

$

Not available

11

Briggs & Stratton 99884

Control Panel Assy.
(Superseded to 99884GS)

$124.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 99896

PPHMS, #10 x 1 - 1/4 Self Drill
(Superseded to 99896GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 99852

Control Panel Decal

$

$

Not available

14

Briggs & Stratton 99686

RBC End Stator Plate
(Superseded to 99686GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 49813

Hex. Nut M6 - 1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66449L

Stator Bolt
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99850

Bearing Cover

$

$

Not available

18

Briggs & Stratton 77026

Data Sheet Decal

Note: Back Side

$

$

Currently unavailable

19

Briggs & Stratton 75402

Pushnut, 1/2" Dia.
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

20

Briggs & Stratton 21206

Diamond Tread Tire
(Superseded to 21206GS)

$21.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 86292

HHCS, #10 - 16 x 3/4" Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 52858

Locking Nut M8 - 1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

23

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

24

Briggs & Stratton 39414

HHCS, M8 - 1.0 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 97912

Carriage Bolt 1/4 - 20 x 2 - 1/4 LG
(Superseded to 97912GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97082

Handle Clip
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 99368

Anti-Scratch Plate - SS
(Superseded to 99368GS)

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97178

Handle Knob
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 21724

Ext. Cord Holder

$

$

Not available

30

Briggs & Stratton 81895

Plug 3/4" Square Cap
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97998

Square Neck Eye Bolt
(Superseded to 97998GS)

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 96409

1 - 800 Number Decal
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93639

Danger Instructions Decal

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 20024

Start Instructions Decal
(Superseded to 20024GS)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 89685

Control Box Grommet
(Superseded to 89685GS)

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 97741

Axle Assy
(Superseded to 97741GS)

$21.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

38

Briggs & Stratton 66849A

Taptite M5 - 0.8 x 20 Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 86307

HHCS, 5/16 - 24 x 3/4"
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 22129

Lock Washer - 5/16
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

41

Briggs & Stratton 77395

Flange Lock Nut M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 87680

Wing Nut M6 - 1.0
(Superseded to 87680GS)

$7.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 26850

Shakeproof Washer, M6 - 1/4

$

$

Not available

44

Briggs & Stratton 40945

SHCS, M6 - 1.0 x 20
(Superseded to 40945GS)

$3.49

$

In Stock, only 2 left!

0
