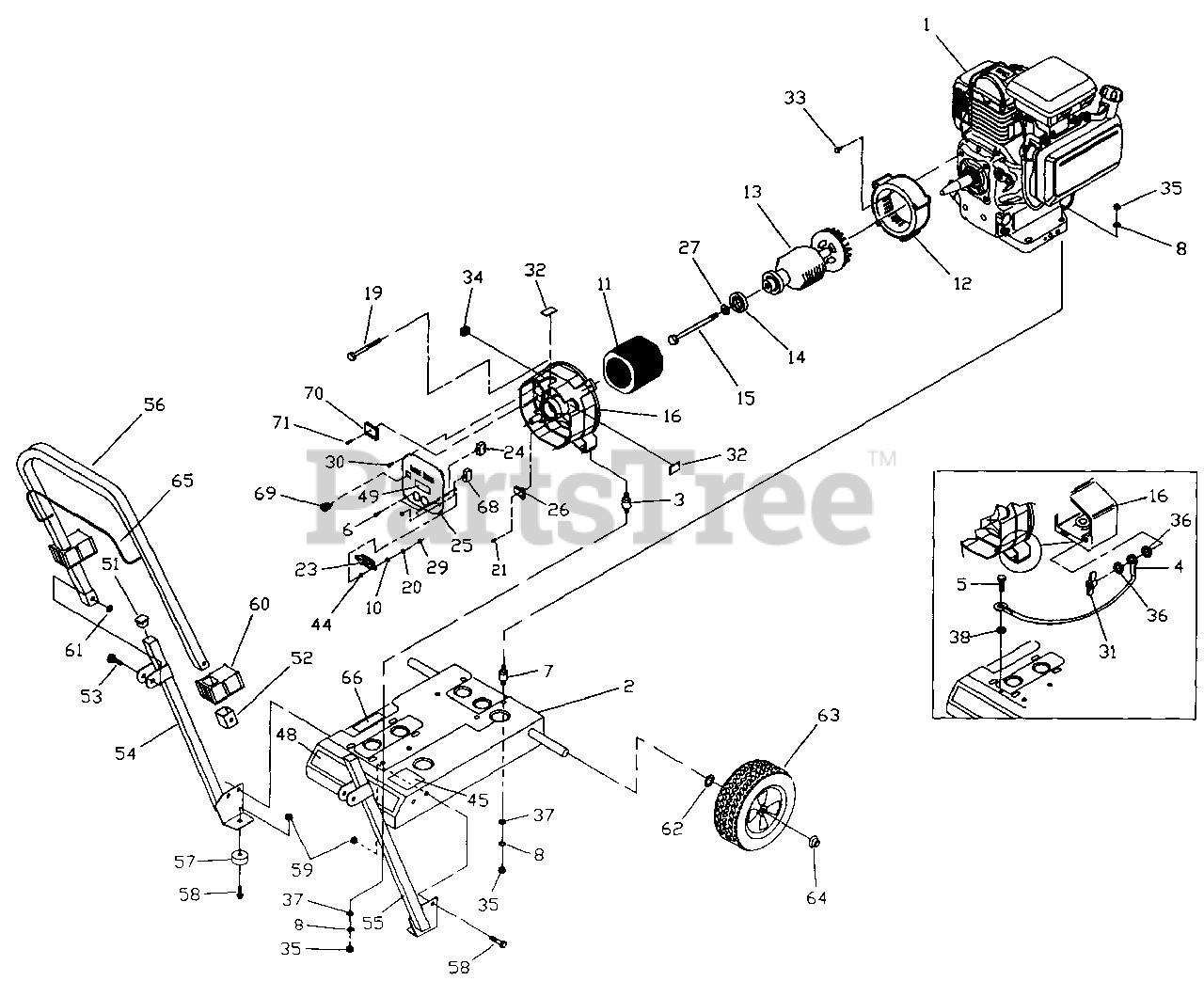

580.327750 (1170-0) - Craftsman 2,500 Watt Portable Generator Main Unit Parts Diagram

2,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 82392

HONDA GC160 5 HP

$

$

Currently unavailable

2

Briggs & Stratton 62406

BASE AND AXLE ASM

$

$

Currently unavailable

3

Briggs & Stratton 85652

VIBRATION MOUNT - ALT.
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

4

14353621

GROUND WIRE

$

$

Not available

5

Briggs & Stratton B2153

SELF DRILLER 12-14 X 7/8
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

SCREW, PAN HD. MACH. M4-0.7 X 10

$

$

Not available

7

Briggs & Stratton 85651

MOUNT, VIBRATION-ENGINE
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

WASHER, FLAT-#8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2413J

STATOR ASSEMBLY
(Superseded to B2413JGS)

$

$

Not available

12

Briggs & Stratton 66365

HOUSING, ENGINE ADAPTOR
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91820J

ROTOR ASSEMBLY
(Superseded to 91820JGS)

$186.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

BOLT, ROTOR-5/16"-24 X 6.25

$

$

Not available

16

Briggs & Stratton 66825B

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 86308D

BOLT, STATOR M6-1.00 X 85MM
(Superseded to 86308DGS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCK WASHER - NO.8

$

$

Not available

21

Briggs & Stratton 66849

SCREW (TAPTITE) M5-0.80 X 16MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 68759

RECEPTACLE 120-VOLTS AC, 20A
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 77247

BREAKER, CIRCUIT-20A
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B2424

PANEL, CONTROL 2.4KW

$

$

Currently unavailable

26

Briggs & Stratton 91825

BRUSH & BRIDGE RECTIFIER

$

$

Not available

27

Briggs & Stratton 67451

FLAT WASHER-(SPECIAL)

$

$

Currently unavailable

29

Briggs & Stratton 51715

NUT, HEX-M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW (TAPTITE)-M5-0.80 X 10 MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

SCREW, M6-1.0 X 16 WING
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

GROMMET RBC
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

CAPSCREW, HEX HD
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67022

GROMMET,BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

M8-1.25 HEX NUT

$

$

Not available

36

Briggs & Stratton 26850

WASHER, SHAKE PROOF #10

$

$

Not available

37

Briggs & Stratton 22145

FLAT WASHER-M8

$

$

Not available

38

Briggs & Stratton 22769

WASHER, SHAKE PROOF #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

44

UNKNOWN

$

$

Not available

45

Briggs & Stratton 93639

DECAL, DANGER-ENGLISH

$2.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2517

DECAL, RECOIL

$

$

Currently unavailable

48

Briggs & Stratton B2419

DECAL, CRAFTSMAN

$

$

Currently unavailable

49

Briggs & Stratton B2415

DECAL, CONTROL PANEL
(Superseded to B2415GS)

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton B2518

DECAL, ENGINE SHROUD
(Superseded to B2518GS)

$4.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 46476

CAPLUG 1" SQUARE
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 62347

END CAP

$

$

Currently unavailable

53

Briggs & Stratton 51767

HHCS, M6-1.0 X 45
(Superseded to 51767GS)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B2395B

FOOT ASM, SUPPORT L.H.
(Superseded to B2395BGS)

$53.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 62395A

FOOT ASM, SUPPORT R.H.

$

$

Currently unavailable

56

UNKNOWN

$

$

Not available

57

Briggs & Stratton 27007

VIBRATION MOUNT, LEG
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

58

Briggs & Stratton 39253

SCREW, HEX HD. CAPSC. M8-1.25 X 20 LONG
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 52858

NUT, FLANGE-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton B1779

COVER, HINGE
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 62857

NUT, LOCKING M6-1.0

$

$

Currently unavailable

62

Briggs & Stratton 49808

WASHER, FLAT-M12
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

63

Briggs & Stratton 81760

WHEEL AND TIRE ASM 10"

$

$

Currently unavailable

64

Briggs & Stratton 75402

PUSH NUT-1/2" DIA.
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

65

Briggs & Stratton 62407

HOLDER, EXTENSION CORD
(Superseded to 7062407YP)

$22.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 96409

DECAL, 1-800 NUMBER
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B2437

DECAL, START INSTRUCTIONS

$

$

Not available

68

77247a

BREAKER, CIRCUIT-10A

$

$

Not available

69

Briggs & Stratton 90418

OUTLET, 12 VDC SNAP
(Superseded to 90418GS)

$

$

Not available

70

Briggs & Stratton 65795

RECTIFIER, BATTERY CHARGE
(Superseded to 65795GS)

$

$

Not available

71

Briggs & Stratton 66849A

TAPTITE, M% - 0.7 x 20
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0
