580.328181 (8747-0) - Craftsman 2,100 Watt Portable Generator Sheet Metal No. 63107 Parts Diagram

2,100 Watt Portable Generator

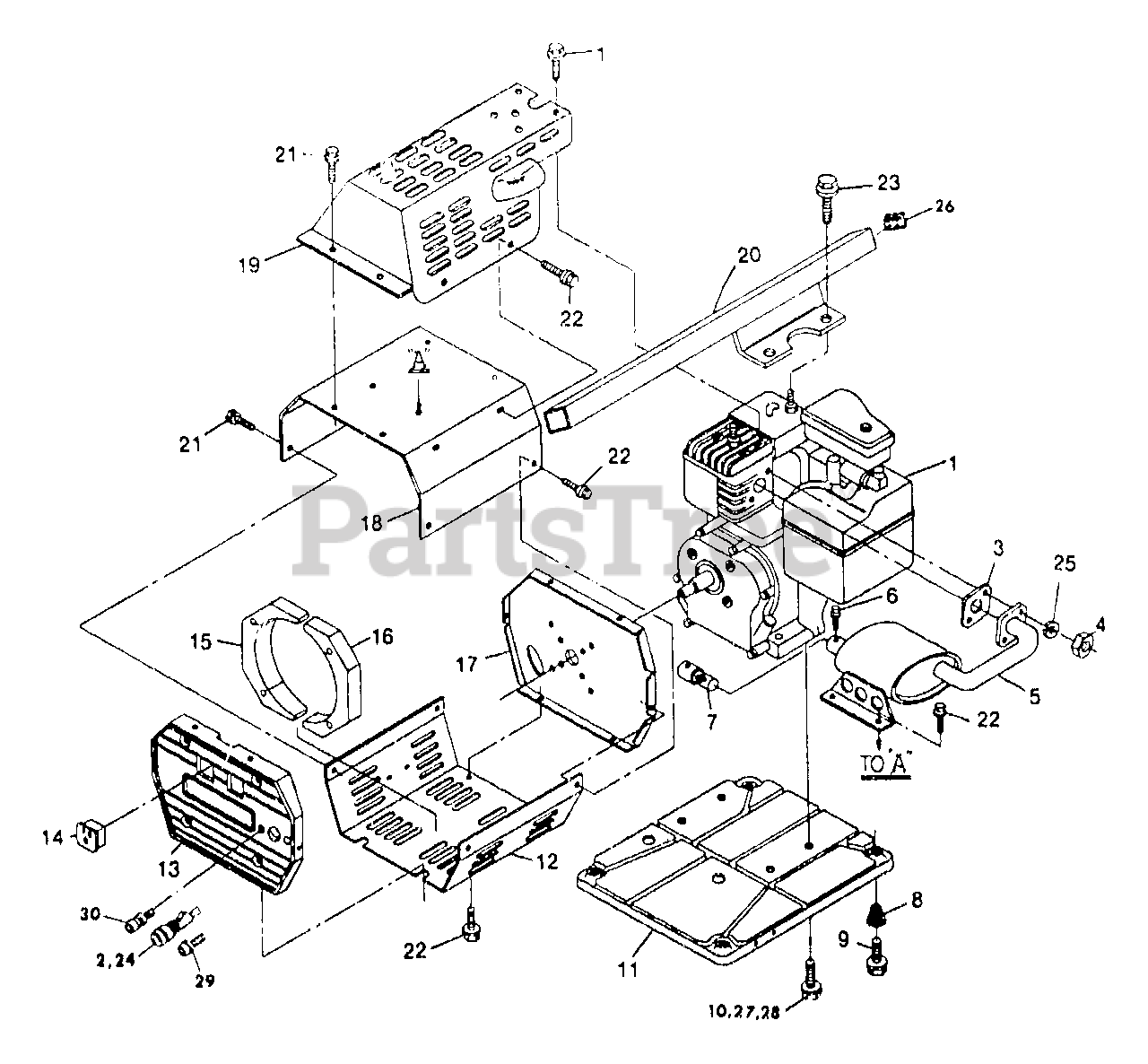

Sheet Metal No. 63107 Parts Diagram

  • Title

1

Briggs & Stratton 62255

ENGINE - Kawasaki 5 HP

$

$

Currently unavailable

2

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

3

Briggs & Stratton 63129

GASKET, Exhaust
(Superseded to 63129GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 45772

NUT, Hex - M10-1.50

$

$

Not available

5

Briggs & Stratton 63102

MUFFLER, Exhaust

Note: (Includes Items 6,7)

$

$

Not available

6

Briggs & Stratton 22774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

7

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

8

Briggs & Stratton 23594

SPRING, Vibration

$

$

Currently unavailable

9

Briggs & Stratton 24910

SCREW (Taptite) - 5/16" - 18 x 1/2"

$

$

Not available

10

Briggs & Stratton 22283

CAPSCREW, Hex Head - 5/16"-18 x 1 1/2"
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 58874

PAN, Base

$

$

Not available

12

Briggs & Stratton 58876A

WRAPPER, Lower Generator

$

$

Currently unavailable

13

Briggs & Stratton 63112A

PANEL, End

Note: Contact Generac for quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 58888

RECEPTACLE - 120 Volts

$

$

Not available

15

Briggs & Stratton 58887B

BAFFLE, Generator - Left

$

$

Currently unavailable

16

Briggs & Stratton 58887A

BAFFLE, Generator - Right

$

$

Currently unavailable

17

Briggs & Stratton 60209A

ADAPTER, Sheet Metal

$

$

Currently unavailable

18

Briggs & Stratton 58875A

WRAPPER, Upper Generator

$

$

Currently unavailable

19

Briggs & Stratton 63103

COVER, Head and Muffler

$

$

Not available

20

Briggs & Stratton 63105

HANDLE, Carrying

$

$

Currently unavailable

21

Briggs & Stratton 59635

SCREW (Plastite) - No. 8 x 3/8"

$

$

Currently unavailable

22

Briggs & Stratton 56892

SCREW (Crimptite) - No. 8 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 51730

CAPSCREW, Hex Head - M10-1.50 x 60 mm
(Superseded to 51730GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

25

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 46476

CAP, Plastic
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 25367

POST, Terminal (Red)
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 25368

POST, Terminal (Black)

$

$

Not available

Briggs & Stratton 63130C

KIT, Decal

Note: Contact Generac for quantity required.

$

$

Currently unavailable

Briggs & Stratton A25383

CABLE, Battery Charging

Note: Contact Generac for quantity required.

$

$

Currently unavailable

Briggs & Stratton 63106

MANUAL, Owner's
(Superseded to 63106GS)

Note: Contact Generac for quantity required.

$14.99

$

Usually ships in 2-12 days

0
