580.328183 (8761-1) - Craftsman 2,100 Watt Portable Generator AC Generator Parts Diagram

2,100 Watt Portable Generator

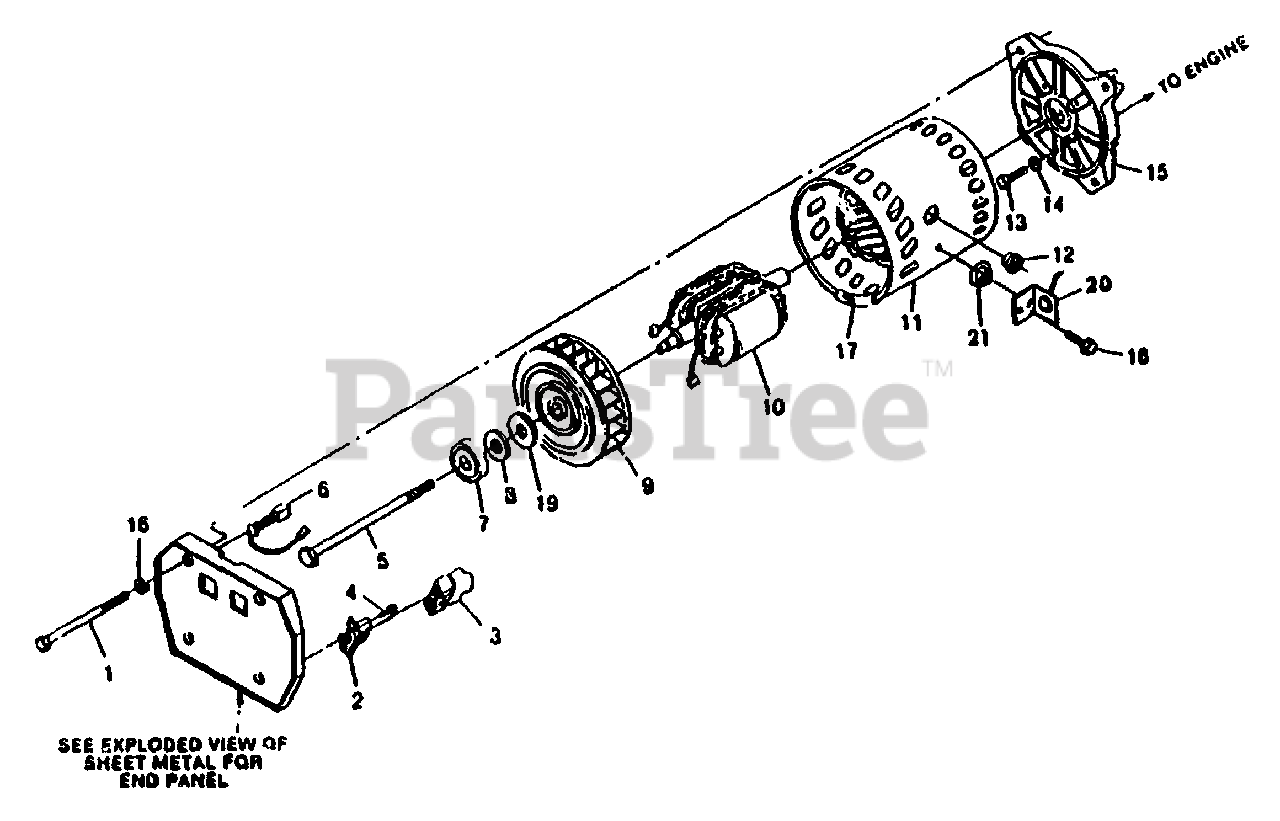

AC Generator Parts Diagram

  • Title

1

Briggs & Stratton 44395E

BOLT, Stator

$

$

Not available

2

Briggs & Stratton 22694

HOUSING, Receptacle - White
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

4

Briggs & Stratton 59636

SCREW - No. 4 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 58885A

BOLT, Rotor

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 59606

ASSEMBLY, Brush and Lug - Red

$

$

Not available

6

Briggs & Stratton 59606A

ASSEMBLY, Brush and Lug - Neutral

$

$

Not available

7

Briggs & Stratton 24049

BEARING, Rotor

$

$

Not available

8

Briggs & Stratton 58886

WASHER, Fan Loading
(Superseded to 58886GS)

$5.99

$

Usually ships in 2-12 days

0

9

FAN, Generator

$

$

Not available

10

Briggs & Stratton 59600

ASSEMBLY, Rotor and Fan

$

$

Currently unavailable

11

Briggs & Stratton 63114

ASSEMBLY, Stator
(Superseded to 63114GS)

$648.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23484D

BUSHING, Snap - 0.87" diameter

$

$

Currently unavailable

13

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

14

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 60220D

HOUSING, Engine Adapter

$

$

Currently unavailable

16

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 61876

TRIM, Rubber - 3 1/2" long

$

$

Currently unavailable

18

Briggs & Stratton 24413

SCREW (Taptite) - No. 10.32 x 1/2"

$

$

Not available

19

Briggs & Stratton 60221

WASHER, Felt
(Superseded to 60221GS)

$6.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 45992

DIODE, Battery Charge
(Superseded to 5045992)

$11.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 23762

WASHER, External Shakeproof - No. 10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0
