580.328190 (8762-0) - Craftsman 3,500 Watt Portable Generator Sheet Metal No. 63125 Parts Diagram

3,500 Watt Portable Generator

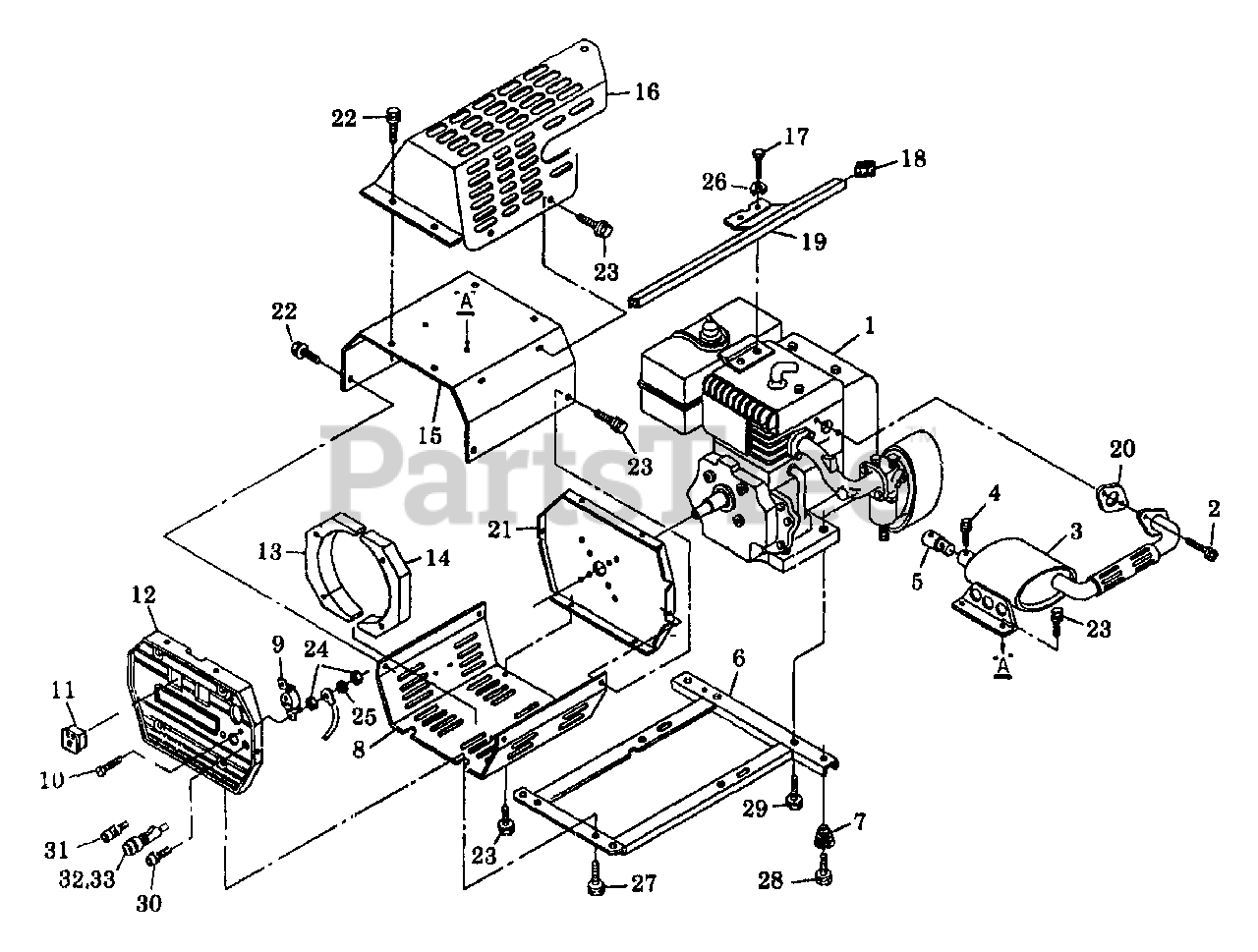

Sheet Metal No. 63125 Parts Diagram

  • Title

1

Briggs & Stratton 58893

ENGINE, Craftsman 8 HP

$

$

Currently unavailable

2

Briggs & Stratton 60706

CAPSCREW, Socket Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

3

Briggs & Stratton 58196

MUFFLER, Exhaust

Note: (Includes Items 4, 5)

$

$

Not available

4

Briggs & Stratton 22774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

6

Briggs & Stratton 58898

BASE, Mounting
(Superseded to 7058898YP)

$262.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

SPRING (without Loop)

$

$

Currently unavailable

8

Briggs & Stratton 58876B

WRAPPER, Lower Generator

$

$

Currently unavailable

9

Briggs & Stratton 58889

RECEPTACLE - 240 Volts, 15 Ampere

$

$

Not available

10

Briggs & Stratton 22389

SCREW, Round Head Machine - No. 6-32 x 3/4"
(Superseded to 5022389)

$20.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 58888

RECEPTACLE - 120 Volts, 15 Ampere

$

$

Not available

12

Briggs & Stratton 63112B

PANEL, End

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

14

Briggs & Stratton 58887A

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

15

Briggs & Stratton 58875B

WRAPPER, Upper Generator

$

$

Currently unavailable

16

Briggs & Stratton 58884

COVER, Muffler and Head

$

$

Currently unavailable

17

Briggs & Stratton 30332

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

18

Briggs & Stratton 46476

CAP PLUG - 1" square
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 58897

HANDLE, Carrying

$

$

Currently unavailable

20

Briggs & Stratton 58894

GASKET, Exhaust
(Superseded to 58894GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 60209

ADAPTER, Sheet Metal

$

$

Currently unavailable

22

Briggs & Stratton 59635

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

23

Briggs & Stratton 56892

SCREW - No. 10-24 x 3/8"
(Superseded to 56892GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22188

NUT, Hex - No. 6-32

$

$

Currently unavailable

25

Briggs & Stratton 23364

WASHER, Lock - No. 6
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 59634

SCREW - 1/4" x 1"

$

$

Not available

28

Briggs & Stratton 24910

SCREW - 5/16" x 1/2"

$

$

Not available

29

Briggs & Stratton 59637

SCREW - 3/8"-16 x 3/4"

$

$

Not available

30

Briggs & Stratton 25367

POST, Terminal - Red
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25368

POST, Terminal - Black

$

$

Not available

32

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

33

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

Briggs & Stratton 63130D

KIT, Decal

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 58890

PLUG, Connector

$

$

Not available

Briggs & Stratton 63123

MANUAL, Owner's

$

$

Not available

Briggs & Stratton A25383

CABLE, Battery Charging

$

$

Currently unavailable
