580.328192 (8762-2) - Craftsman 3,500 Watt Portable Generator 4-Cycle Engine Model No. 143.766012 Parts Diagram

3,500 Watt Portable Generator

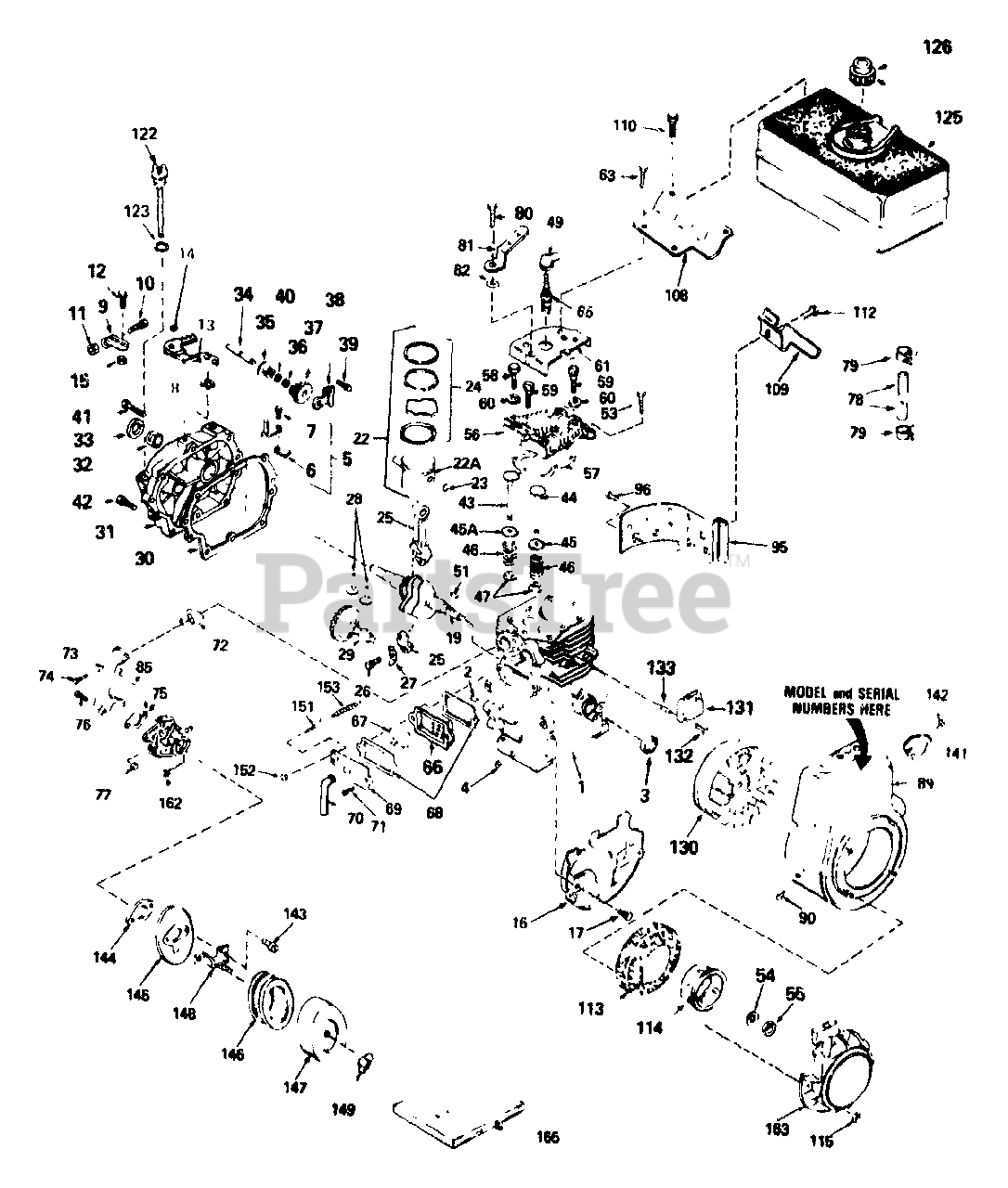

4-Cycle Engine Model No. 143.766012 Parts Diagram

  • Title

1

Briggs & Stratton 35385

Cylinder Assy.

Note: (Incl. Nos. 2, 3, & 4). Contact Generac for Quantity Required.

$

$

Currently unavailable

2

Briggs & Stratton 27652

Pin, Dowel
(Superseded to 7027652YP)

Note: Contact Generac for Quantity Required.

$106.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 35319

Seal, Oil

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

4

Briggs & Stratton 27642

Plug, Oil drain

Note: Contact Generac for Quantity Required.

$

$

Not available

5

Briggs & Stratton 30699C

Rod Assy., Governor

Note: (Incl. Nos. 6 & 7). Contact Generac for Quantity Required.

$

$

Currently unavailable

6

Briggs & Stratton 30700

Yoke, Governor

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

7

Briggs & Stratton 650494

Screw, Fil. hd. Sems, 6 40 x 5 16

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

8

Briggs & Stratton 29642

Ring, Retaining

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

9

Briggs & Stratton 29916

Clamp, Governor lever

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

10

Briggs & Stratton 29826

Screw, Hex washer hd., 10 32 x 3 4

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

11

Briggs & Stratton 29216

Locknut, Hex "Keps" 10 32
(Superseded to 7029216YP)

Note: Contact Generac for Quantity Required.

$78.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 650548

Screw, Hex washer hd., 8 32 x 5 16

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

13

Briggs & Stratton 33454

Governor Lever Assy.

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

14

Briggs & Stratton 29918

Lockwasher, No 8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

15

Briggs & Stratton 30322

Locknut, Hex "Keps" 8 32

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

16

Briggs & Stratton 35326

Baffle, Blower housing

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

17

Briggs & Stratton 650561

Screw, Hex washer hd Durlok, 1 4 20 x 5 8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

19

Briggs & Stratton 35425

Crankshaft Assy.

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

22

Briggs & Stratton 34552

Piston, Pin & Ring Assy. (Std)

Note: (Incl Nos 22A, 23 & 24). Contact Generac for Quantity Required.

$

$

Currently unavailable

22

Briggs & Stratton 34553

Piston, Pin & Ring Assy. (010 over size)

Note: (Incl. Nos. 22A 23 & 24). Contact Generac for Quantity Required.

$

$

Currently unavailable

22

Briggs & Stratton 34554

Piston, Pin & Ring Assy. (020 over size)

Note: (Incl. Nos. 22A, 23 & 24). Contact Generac for Quantity Required.

$

$

Currently unavailable

22A

Briggs & Stratton 34329A

Piston & Pin Assy. (Std.)

Note: (Incl. No. 23). Contact Generac for Quantity Required.

$

$

Currently unavailable

22A

Briggs & Stratton 34330A

Piston & Pin Assy. (.010 oversize)

Note: (Incl. No. 23). Contact Generac for Quantity Required.

$

$

Currently unavailable

22A

Briggs & Stratton 34331A

Piston & Pin Assy. (.020 oversize)

Note: (Incl. No. 23). Contact Generac for Quantity Required.

$

$

Currently unavailable

23

Briggs & Stratton 27888

Ring, Piston Pin retaining
(Superseded to 7027888YP)

Note: Contact Generac for Quantity Required.

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 34332

Ring Set, Piston (Std.)

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

24

Briggs & Stratton 34333

Ring Set, Piston (.010 oversize)

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

24

Briggs & Stratton 34334

Ring Set, Piston (.020 oversize)

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

25

Briggs & Stratton 35373

Rod Assy., Connecting

Note: (Incl. Nos. 26 & 27). Contact Generac for Quantity Required.

$

$

Currently unavailable

26

Briggs & Stratton 650882

Bolt, Connecting Rod

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

27

Briggs & Stratton 35374

Dipper Oil

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

28

Briggs & Stratton 34034

Lifter Valve

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

29

Briggs & Stratton 35375

Camshaft (Mech. Compression Release)

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

30

Briggs & Stratton 35262

Gasket, Cylinder cover

Note: Included in Gasket Set P/N 33279D. Contact Generac for Quantity Required.

$

$

Currently unavailable

31

Briggs & Stratton 35376

Cover, Cylinder

Note: (Incl. Nos. 32, 33, & 34). Contact Generac for Quantity Required.

$

$

Currently unavailable

32

Briggs & Stratton 35377

Bushing Crankshaft

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

33

Briggs & Stratton 35319

Seal Oil

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

34

Briggs & Stratton 31845

Shaft, Mechanical governor

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

35

Briggs & Stratton 30588A

Spool, Governor

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

36

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Contact Generac for Quantity Required.

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 35378

Gear Assy., Governor

Note: (Incl. No. 40). Contact Generac for Quantity Required.

$

$

Currently unavailable

38

Briggs & Stratton 33369

Bracket governor gear

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

39

Briggs & Stratton 650836

Screw, Hex Washer hd. thread forming, 10 24 x 1/2

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

40

Briggs & Stratton 30590A

Washer, Flat

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

41

Briggs & Stratton 650833

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-3/16

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

42

Briggs & Stratton 650832

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-11/16

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

43

Briggs & Stratton 34035

Valve, lntake (Std.)

Note: (Incl. No. 47). Contact Generac for Quantity Required.

$

$

Currently unavailable

43

Briggs & Stratton 34036

Valve, lntake (1/32" oversize)

Note: (Incl. No. 47). Contact Generac for Quantity Required.

$

$

Currently unavailable

44

Briggs & Stratton 27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 47). Contact Generac for Quantity Required.

$

$

Currently unavailable

44

Briggs & Stratton 27880A

Valve Exhaust (1/32" oversize)

Note: (Incl. No. 47). Contact Generac for Quantity Required.

$

$

Currently unavailable

45

Briggs & Stratton 27882

Cap, Upper valve spring (Exhaust)

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

45A

Briggs & Stratton 34689

Seal Assy., Intake valve

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

46

Briggs & Stratton 27881

Spring, Valve

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

47

Briggs & Stratton 32581

Cap, Lower valve spring

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

49

Briggs & Stratton 27276

Cover, Spark plug

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

51

Briggs & Stratton 32589

Key, Flywheel

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

53

Briggs & Stratton 650788

Screw, Hex hd spinlock thr'd forming, 5/16 18 x 3/4

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

54

Briggs & Stratton 650880

Washer, Lock

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

55

Briggs & Stratton 650881

Nut, Flywheel

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

56

Briggs & Stratton 34030

Head, Cylinder

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

57

Briggs & Stratton 34041

Gasket, Cylinder head

Note: Included in Gasket Set P/N 33279D. Contact Generac for Quantity Required.

$

$

Currently unavailable

58

Briggs & Stratton 6021A

Screw, Hex flange hd., 5/16 18 x 1 1/2

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

59

Briggs & Stratton 650727

Screw, Special hex hd. tapped. 5/16 18 x 1 3/4

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

60

Briggs & Stratton 650691

Washer, Flat

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

61

Briggs & Stratton 33272A

Cover, Cylinder head

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

63

Briggs & Stratton 650713

Screw, Hex hd., 5/16 18 x 5/8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

65

Briggs & Stratton 33636

Plug, Spark (Champion 13 or equivalent) Except for Canada

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

65

Briggs & Stratton 34251

Resistor Spark Plug

Note: (Canadian Regulations Require RJ 1/1 M resistor spark plug). Contact Generac for Quantity Required.

$

$

Currently unavailable

66

Briggs & Stratton 28423

Body, Breather

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

67

Briggs & Stratton 28424

Element, Breather

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

68

Briggs & Stratton 27896

Gasket, Breather cover

Note: Included in Gasket Set P/N 33279D. Contact Generac for Quantity Required.

$

$

Currently unavailable

69

Briggs & Stratton 28425

Cover, Valve spring
(Superseded to 7035947YP)

Note: Contact Generac for Quantity Required.

$28.99

$

In Stock, only 2 left!

0

70

Briggs & Stratton 27627

Tube, Breather

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

71

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

72

Briggs & Stratton 27915

Gasket, Intake
(Superseded to 7027915YP)

Note: Included in Gasket Set P/N 33279D. Contact Generac for Quantity Required.

$137.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 34707

Pipe, Intake

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

74

Briggs & Stratton 650378

Screw. Fil. hd. Sems, 5/16 18 x 1-1/8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

75

Briggs & Stratton 33263

Gasket, Carburetor

Note: Included in Gasket Set P/N 33279D. Contact Generac for Quantity Required.

$

$

Currently unavailable

76

Briggs & Stratton 30088A

Screw. Fil. hd. Sems, 1/4-28 x 1

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

77

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

78

Briggs & Stratton 30705

Line, Fuel

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

79

Briggs & Stratton 26460

Clamp, Fuel line

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

80

Briggs & Stratton 650738

Screw, Hex washer hd. spinlock thread forming, 1/4 20 x 5/8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

81

Briggs & Stratton 30747

Clip, Spark plug shorting
(Superseded to 5030747)

Note: Contact Generac for Quantity Required.

$193.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 650890

Washer, Lock

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

85

Briggs & Stratton 33878

Link (Governor lever-to-throttle

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

89

Briggs & Stratton 33375C

Housing, Blower

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

90

Briggs & Stratton 29747B

Screw, Phil. Hex hd. Sems, 5 16/24 21/32

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

95

Briggs & Stratton 33273A

Extension, Blower housing

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

96

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10 24 x 1/2

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

108

Briggs & Stratton 34154

Plate, Fuel tank mtg.
(Superseded to 34154GS)

Note: Contact Generac for Quantity Required.

$1.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 34155

Bracket, Fuel tank mtg.

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

110

Briggs & Stratton 650665

Screw, Hex washer hd. thread cutting, 1/4-15 x 7/8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

112

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok 1/4-20 x 5/8

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

113

Briggs & Stratton 35194

Screen, Starter

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

114

Briggs & Stratton 35287

Cup, Starter

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

115

Briggs & Stratton 29759

Nut & Lockwasher 1/4-28

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

122

Briggs & Stratton 33463

Dipstick, Oil

Note: Contact Generac for Quantity Required. Includes item 123 Dipstick, Oil P/N 33463)

$

$

Currently unavailable

123

Briggs & Stratton 29673

Gasket, Dipstick

Note: Contact Generac for Quantity Required. Included in Gasket Set P/N 33279D

$

$

Not available

125

Briggs & Stratton 34456

Tank Assy., Fuel

Note: Contact Generac for Quantity Required. Includes No. 126

$

$

Currently unavailable

126

Briggs & Stratton 33032

Cap, Fuel filler

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

130

Briggs & Stratton 611090

Flywheel

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

131

Briggs & Stratton 35135

Solid State Assy.

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

132

Briggs & Stratton 650814

Screw, Hex hd. Sems, 10-24 x 1

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

133

Briggs & Stratton 650872

Stud, Solid State mounting

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

141

Briggs & Stratton 33013

Cover, Starter bubble

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

142

Briggs & Stratton 650760

Screw, Pan hd. taptite, 8-32 x 7/16

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

143

Briggs & Stratton 28820

Screw, Fil. hd. Sems, 10-32 x 1/2
(Superseded to 7045199YP)

Note: Contact Generac for Quantity Required.

$222.99

$

Usually ships in 2-12 days

0

144

Briggs & Stratton 27272

Gasket, Air cleaner

Note: Included in Gasket Set P/N 33279D. Contact Generac for Quantity Required.

$

$

Currently unavailable

145

Briggs & Stratton 33266

Bracket, Air cleaner

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

146

Briggs & Stratton 33268

Element, Air cleaner

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

147

Briggs & Stratton 33269A

Cover, Air cleaner

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

148

Briggs & Stratton 33267

Bracket, Air cleaner

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

149

Briggs & Stratton 650513

Nut, Wing, 1/4-20

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

151

Briggs & Stratton 30845A

Bolt, Gov. spring adjusting

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

152

Briggs & Stratton 33450

Nut, Lock, 10-32

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

153

Briggs & Stratton 30886A

Spring, Extension

Note: Contact Generac for Quantity Required.

$

$

Currently unavailable

162

Briggs & Stratton 632351

Carburetor

Note: Contact Generac for Quantity Required. Includes item No. 75

$

$

Currently unavailable

163

Briggs & Stratton 590479

Starter, Rewind

Note: Contact Generac for Quantity Required.

$10.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 33279D

Gasket Set

Note: (Incl. Item Nos. 30, 57, 68, 72, 75, 123, & 144). Contact Generac for Quantity Required.

$

$

Currently unavailable
