580.328241 (8648-1) - Craftsman 3,750 Watt Portable Generator Auxiliary Fuel Tank Parts Diagram

3,750 Watt Portable Generator

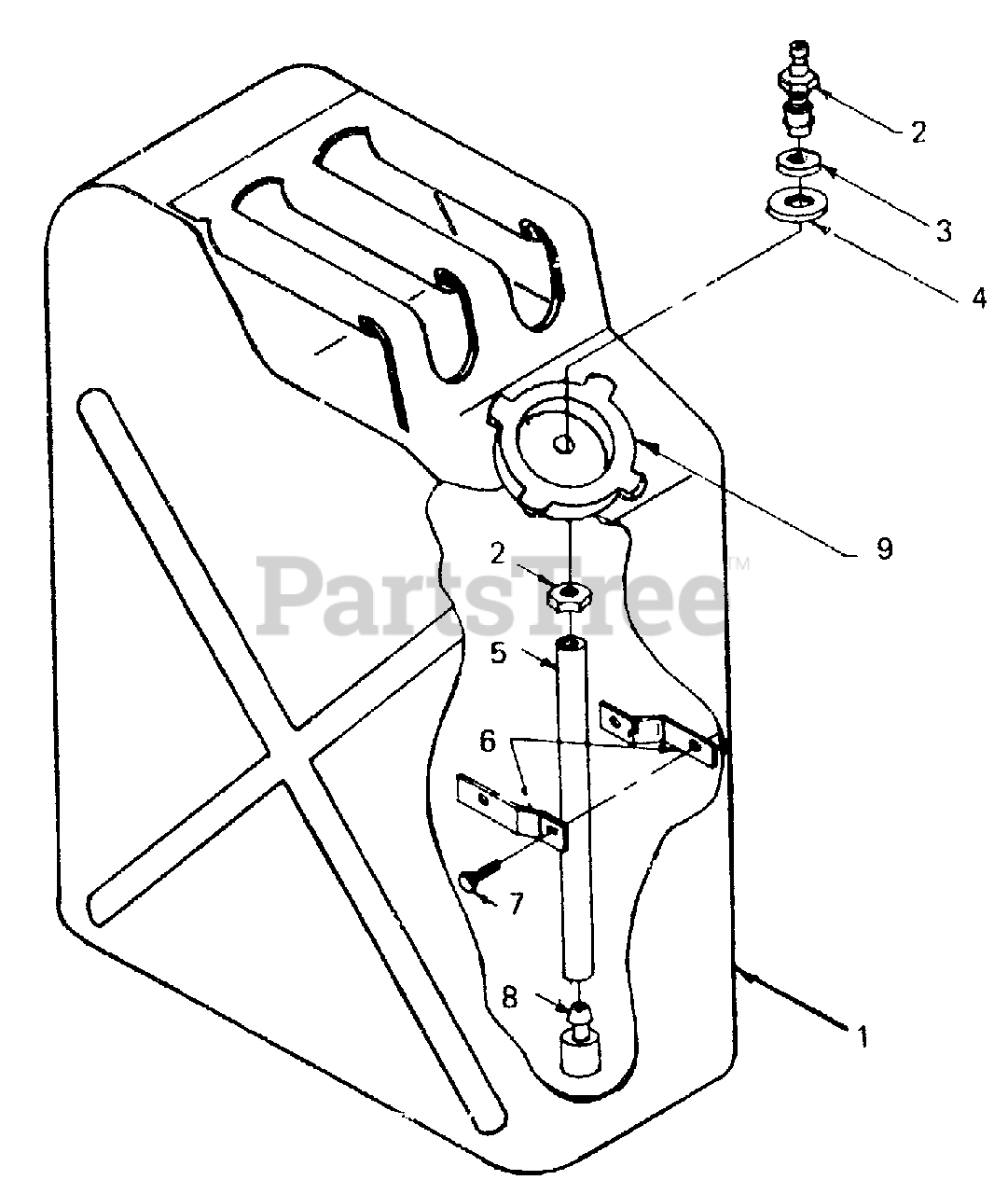

Auxiliary Fuel Tank Parts Diagram

  • Title
1

Briggs & Stratton 43413

5 Gallon Fuel Tank

Note: (Without Fittings)

$

$

Currently unavailable

1

Briggs & Stratton 50543

5 Gallon Fuel Tank

Note: (Complete with Fittings) Includes Items 2 thru 8)

$

$

Currently unavailable

2

Briggs & Stratton 50541

Quick Disconnect, Male

$

$

Currently unavailable

3

Briggs & Stratton 43441

Washer, 3/8 SAE

$

$

Currently unavailable

4

Briggs & Stratton 43442

Washer, Gasket
(Superseded to 5043442B)

$79.99

$

Usually ships in 2-12 days

0

$

$

Not available

6

Briggs & Stratton 50540

Retainer, Fuel Line

$

$

Currently unavailable

7

Briggs & Stratton 46852

Screw, No. 10-32 Taptight

$

$

Not available

8

$

$

Currently unavailable

9

$

$

Currently unavailable
