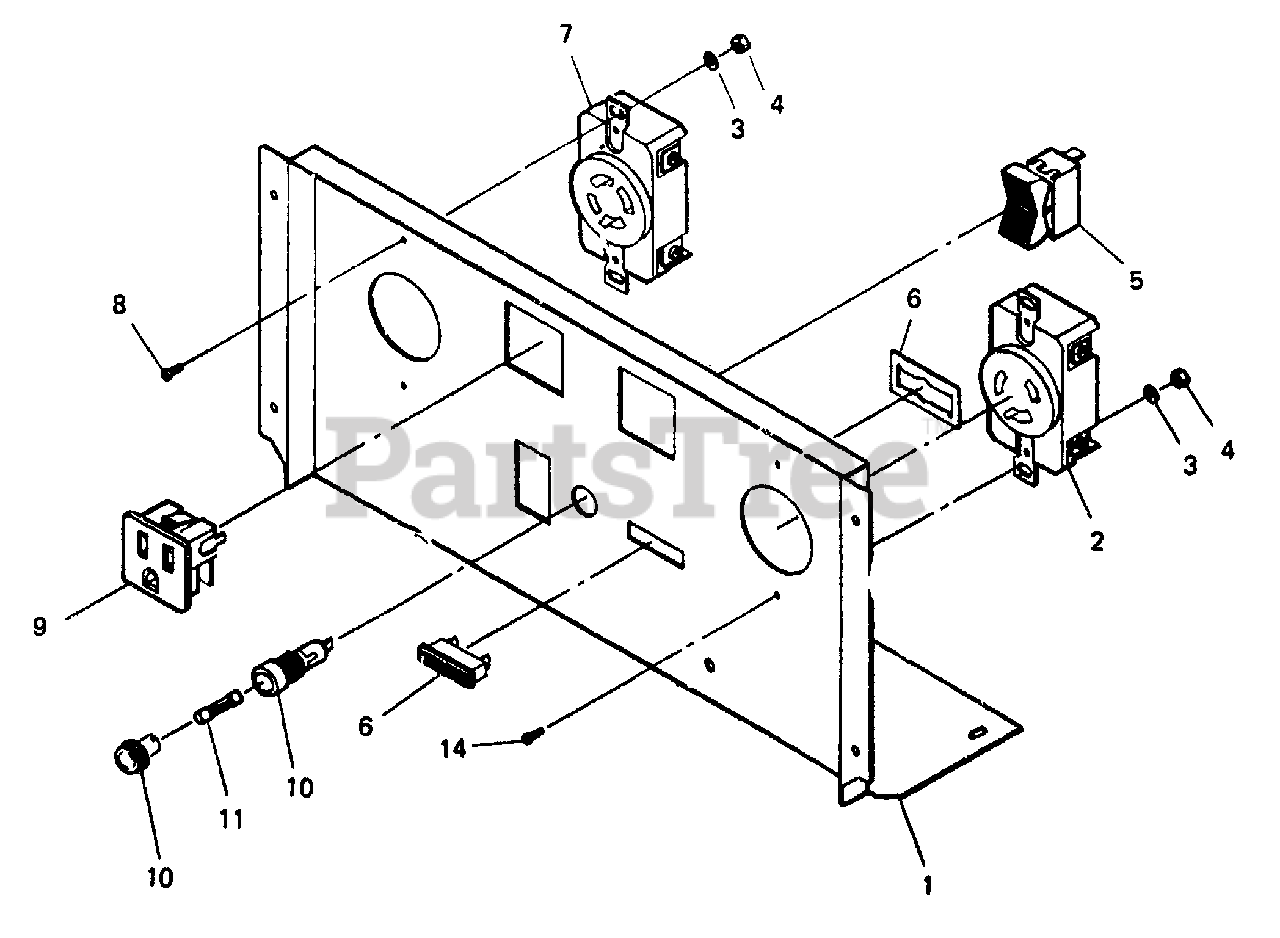

580.328250 (8649-0) - Craftsman 5,000 Watt Portable Generator Panel Parts Diagram

5,000 Watt Portable Generator

Panel Parts Diagram

  • Title

1

Briggs & Stratton 47482

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 37807

Receptacle 120V 3-Pr 30A

$

$

Currently unavailable

3

Briggs & Stratton 22152

No. 10 Lockwasher
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22158

No. 10-32 Hex, Nut
(Superseded to 5022158)

$26.99

$

In Stock, Qty 6

0

5

Briggs & Stratton 33868

Switch PSDT
(Superseded to 33868GS)

$

$

Not available

6

Briggs & Stratton 27767

Pilot Light and Bracket

$

$

Not available

7

Briggs & Stratton 43482

Receptacle 240V 4-Pr 30A
(Superseded to 100522GS)

$36.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 36933

No. 10-32 x .37 Phillips Pan Head Machine Screw

$

$

Not available

9

Briggs & Stratton 22693

Receptacle 120V 15A
(Superseded to 7022693YP)

$71.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22669

Fuse Holder

$

$

Currently unavailable

11

Briggs & Stratton 22668

Fuse AGC 20A

$

$

Currently unavailable

Briggs & Stratton 37806

Connector Plug - 120V, 30 Amp
(Superseded to 100523GS)

$

$

Not available

Briggs & Stratton 43483

Connector Plug 240V, 20 Amp
(Superseded to 100522GS)

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 38804

Battery Cable, Red

$

$

Currently unavailable

Briggs & Stratton 38805

Battery Cable, Black

$

$

Currently unavailable

14

UNKNOWN

$

$

Not available
