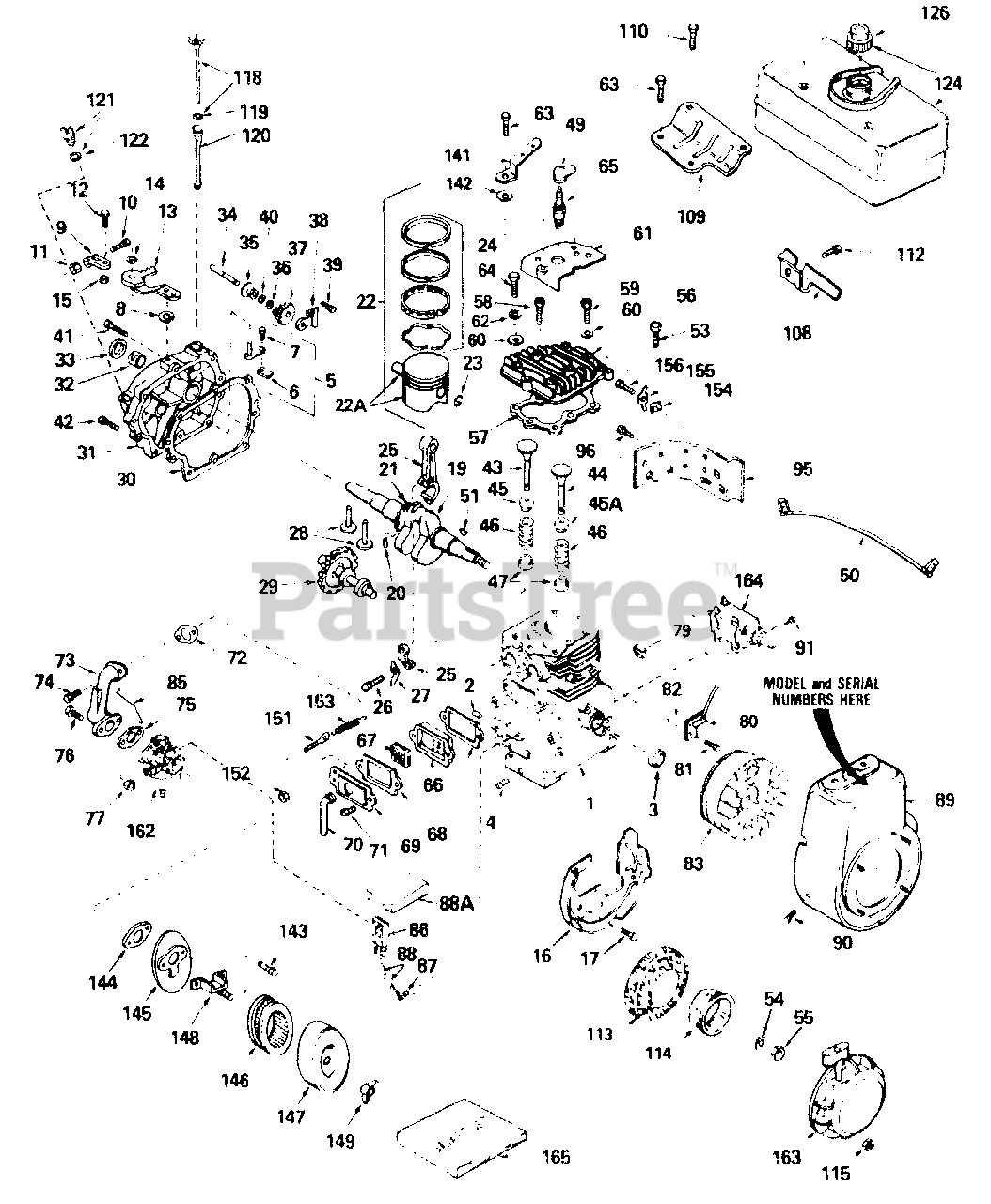

Craftsman 4-Cycle Engine 143.756112 Parts Diagram

  • Title

1

Briggs & Stratton 34922A

Cylinder Assy.

Note: (Incl. Nos. 2, 3 & 4) Before ordering call Generac for quantity required.

$

$

Currently unavailable

2

Briggs & Stratton 27652

Pin, Dowel
(Superseded to 7027652YP)

Note: Before ordering call Generac for quantity required.

$106.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 32630

Seal, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

4

Briggs & Stratton 27642

Plug, Oil drain

Note: Before ordering call Generac for quantity required.

$

$

Not available

5

Briggs & Stratton 30699C

Rod Assy., Governor

Note: (Incl. Nos. 6 & 7) Before ordering call Generac for quantity required.

$

$

Currently unavailable

6

Briggs & Stratton 30700

Yoke, Governor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 650494

Screw, Fil. hd. Sems, 6-40 x 5/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 29642

Ring, Retaining

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

9

Briggs & Stratton 29916

Clamp, Governor lever

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

10

Briggs & Stratton 29826

Screw, Hex washer hd., 10-32 x 3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

11

Briggs & Stratton 29216

Locknut, Hex "Keps", 10-32
(Superseded to 7029216YP)

Note: Before ordering call Generac for quantity required.

$78.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 650548

Screw, Hex washer hd., 8-32 x 5/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

13

Briggs & Stratton 33454

Governor Lever Assy.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 29918

Lockwasher, No. 8 E.T.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

15

Briggs & Stratton 30322

Locknut, Hex "Keps", 8-32

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

16

Briggs & Stratton 29536

Baffle, Blower housing
(Superseded to 7029536YP)

Note: Before ordering call Generac for quantity required.

$279.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

19

Briggs & Stratton 35207

Crankshaft Assy.

Note: (Incl. Nos. 20 & 21) Before ordering call Generac for quantity required.

$

$

Currently unavailable

20

Briggs & Stratton 29783

Pin, Crankshaft gear
(Superseded to 7029783YP)

Note: Before ordering call Generac for quantity required.

$6.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 33245

Gear, Crankshaft

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

22

Briggs & Stratton 34860

Piston, Pin & Ring Assy. (Std.)

Note: (Incl. Nos. 22A, 23 & 24) Before ordering call Generac for quantity required.

$

$

Currently unavailable

22

Briggs & Stratton 34861

Piston, Pin & Ring Assy. (.010 oversize)

Note: (Incl. Nos. 22A, 23 & 24) Before ordering call Generac for quantity required.

$

$

Currently unavailable

22

Briggs & Stratton 34862

Piston, Pin & Ring Assy. (.020 oversize)

Note: (Incl. Nos. 22A, 23 & 24) Before ordering call Generac for quantity required.

$

$

Currently unavailable

22A

Briggs & Stratton 34863

Piston & Pin Assy. (Std.)

Note: (Incl. No. 23) Before ordering call Generac for quantity required.

$

$

Currently unavailable

22A

Briggs & Stratton 34864

Piston & Pin Assy. (.010 oversize)

Note: (Incl. No. 23) Before ordering call Generac for quantity required.

$

$

Currently unavailable

22A

Briggs & Stratton 34865

Piston & Pin Assy. (.020 oversize)

Note: (Incl. No. 23) Before ordering call Generac for quantity required.

$

$

Currently unavailable

23

Briggs & Stratton 27888

Ring, Piston pin retaining
(Superseded to 7027888YP)

Note: Before ordering call Generac for quantity required.

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 34866

Ring Set, Piston (Std.)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

24

Briggs & Stratton 34867

Ring Set, Piston (.010 oversize)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

24

Briggs & Stratton 34868

Ring Set, Piston (.020 oversize)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

25

Briggs & Stratton 32591C

Rod Assy., Connecting

Note: (Incl. Nos. 26 & 27) Before ordering call Generac for quantity required.

$

$

Currently unavailable

26

Briggs & Stratton 650662B

Screw, Connecting rod

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

27

Briggs & Stratton 34242

Dipper, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

28

Briggs & Stratton 34034

Lifter, Valve

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

29

Briggs & Stratton 34143

Camshaft

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

30

Briggs & Stratton 33253A

Gasket, Cylinder cover

Note: (Incl. 8 of No. 41) Before ordering call Generac for quantity required.

$

$

Currently unavailable

31

Briggs & Stratton 33367B

Cover, Cylinder

Note: (Incl. Nos. 32, 33, 34, 121 & 122) Before ordering call Generac for quantity required.

$

$

Currently unavailable

32

Briggs & Stratton 33368

Bushing, Crankshaft

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

33

Briggs & Stratton 31950

Seal, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

34

Briggs & Stratton 31845

Shaft, Mechanical governor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

35

Briggs & Stratton 30588A

Spool, Governor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

36

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Before ordering call Generac for quantity required.

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 30591

Gear Assy., Governor

Note: (Incl. No. 40) Before ordering call Generac for quantity required.

$

$

Currently unavailable

38

Briggs & Stratton 33369

Bracket, Governor gear

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

39

Briggs & Stratton 650836

Screw, Hex washer hd. thread forming, 10-24 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

40

Briggs & Stratton 30590A

Washer, Flat

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

41

Briggs & Stratton 650833

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-3/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

42

Briggs & Stratton 650832

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-11/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

43

Briggs & Stratton 34035

Valve, Intake (Std.)

Note: (Incl. No. 47) Before ordering call Generac for quantity required.

$

$

Currently unavailable

43

Briggs & Stratton 34036

Valve, Intake (1/32" oversize)

Note: (Incl. No. 47) Before ordering call Generac for quantity required.

$

$

Currently unavailable

44

Briggs & Stratton 27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 47) Before ordering call Generac for quantity required.

$

$

Currently unavailable

44

Briggs & Stratton 27880A

Valve, Exhaust (1/32" oversize)

Note: (Incl. No. 47) Before ordering call Generac for quantity required.

$

$

Currently unavailable

45

Briggs & Stratton 34689

Seal Assy., Intake valve

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

45A

Briggs & Stratton 27882

Cap, Upper valve spring (Exhaust)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

46

Briggs & Stratton 27881

Spring, Valve

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

47

Briggs & Stratton 32581

Cap, Lower valve spring

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

49

Briggs & Stratton 27276

Cover, Spark plug

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

50

Briggs & Stratton 35183

Wire, Ground

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

51

Briggs & Stratton 32589

Key, Flywheel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

53

Briggs & Stratton 650788

Screw, Hex hd. spinlock thr'd forming, 5/16-18 x 3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

54

Briggs & Stratton 650815

Washer, Belleville

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

55

Briggs & Stratton 8116

Nut, Flywheel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

56

Briggs & Stratton 34030

Head, Cylinder

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

57

Briggs & Stratton 34923

Gasket, Cylinder head

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

58

Briggs & Stratton 6021A

Screw, Hex flange hd., 5/16-18 x 1-1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

59

Briggs & Stratton 650727

Screw, Special Hex hd. tapped, 5/16-18 x 1-3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

60

Briggs & Stratton 650691

Washer, Flat

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

61

Briggs & Stratton 33272A

Cover, Cylinder head

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

62

Briggs & Stratton 650690

Washer, Belleville

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

63

Briggs & Stratton 650713

Screw, Hex hd., 5/16-18 x 5/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

64

Briggs & Stratton 650694A

Screw, Hex flange hd., 5/16-18 x 2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

65

Briggs & Stratton 33636

Plug, Spark

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

65

Briggs & Stratton 34251

Resistor Spark Plug

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

66

Briggs & Stratton 28423

Body, Breather

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

67

Briggs & Stratton 28424

Element, Breather

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

68

Briggs & Stratton 27896

Gasket, Breather cover

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

69

Briggs & Stratton 28425

Cover, Valve spring
(Superseded to 7035947YP)

Note: Before ordering call Generac for quantity required.

$28.99

$

In Stock, only 2 left!

0

70

Briggs & Stratton 27627

Tube Breather

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

71

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

72

Briggs & Stratton 27915

Gasket, Intake
(Superseded to 7027915YP)

Note: Before ordering call Generac for quantity required.

$137.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 34707

Pipe, Intake

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

74

Briggs & Stratton 650378

Screw, Fil. hd. Sems, 5/16- 18 x 1-1/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

75

Briggs & Stratton 33263

Gasket, Carburetor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

76

Briggs & Stratton 30088A

Screw, fil. hd Sems, 1/4-28 x 1

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

77

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

79

Briggs & Stratton 34246

Clip, Wire

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

80

Briggs & Stratton 35135

Lamination Assy. (Solid State)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

81

Briggs & Stratton 650814

Screw, Hex hd. Sems, 10-24 x 1

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

82

Briggs & Stratton 650872

Stud, Lamination mounting

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

83

Briggs & Stratton 611091

Flywheel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

85

Briggs & Stratton 33878

Link, Governor lever-to-throttle

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

86

Briggs & Stratton 33715

Pump, Fuel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

87

Briggs & Stratton 33713

Fitting, Fuel line elbow

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

88

Briggs & Stratton 29774

Line, Fuel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

88A

Briggs & Stratton 33010

Repair Kit, Fuel pump

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

89

Briggs & Stratton 33375C

Housing, Blower

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

90

Briggs & Stratton 29747B

Screw, Phil. Hex hd. Sems, 5/16-24 x 9/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

91

Briggs & Stratton 30688

Screw, Hex hd., Sems, 1/4-20 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

95

Briggs & Stratton 33273A

Extension, Blower housing

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

96

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

108

Briggs & Stratton 34155

Bracket, fuel tank mtg.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

109

Briggs & Stratton 34154

Plate, Fuel tank mtg.
(Superseded to 34154GS)

Note: Before ordering call Generac for quantity required.

$1.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 650665

Screw, Hex washer hd. thread cutting, 1/4- 15 x 7/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

112

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

113

Briggs & Stratton 35194

Screen, Starter cup

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

114

Briggs & Stratton 32125

Cup, Starter

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

115

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

118

Briggs & Stratton 34122A

Dipstick, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

119

Briggs & Stratton 33590

"O" Ring

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

120

Briggs & Stratton 33951A

Tube, Oil filler

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

121

Briggs & Stratton 27625

Plug, Oil filler

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

122

Briggs & Stratton 29673

Gasket, Oil filler

Note: Before ordering call Generac for quantity required.

$

$

Not available

124

Briggs & Stratton 34156

Tank Assy., Fuel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

126

Briggs & Stratton 33032

Cap, Fuel filler

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

141

Briggs & Stratton 30747

Clip, Spark plug shorting
(Superseded to 5030747)

Note: Before ordering call Generac for quantity required.

$193.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 16645

Lockwasher, 5/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

143

Briggs & Stratton 28820

Screw, Fil hd. Sems, 10-32 x 1/2
(Superseded to 7045199YP)

Note: Before ordering call Generac for quantity required.

$222.99

$

Usually ships in 2-12 days

0

144

Briggs & Stratton 27272

Gasket, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

145

Briggs & Stratton 33266

Bracket, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

146

Briggs & Stratton 33268

Element, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

147

Briggs & Stratton 33269A

Cover, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

148

Briggs & Stratton 33267

Bracket, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

149

Briggs & Stratton 650513

Nut, Wing, 1/4-20

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

151

Briggs & Stratton 30845A

Bolt, Governor spring adjusting

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

152

Briggs & Stratton 33450

Nut, Lock, 10-32

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

153

Briggs & Stratton 30886A

Spring, Governor bolt

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

154

Briggs & Stratton 28545

Grommet, Plastic

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

155

Briggs & Stratton 33356

Tab, Ground terminal

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

156

Briggs & Stratton 650643

Screw, Pan hd. selftap, 8-18 x 3 8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

162

Briggs & Stratton 632255

Carburetor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

163

Briggs & Stratton 590479

Starter, Rewind

Note: Before ordering call Generac for quantity required.

$10.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 33605

Motor, Starter (12 Volt)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

165

Briggs & Stratton 33279D

Gasket Set

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable
