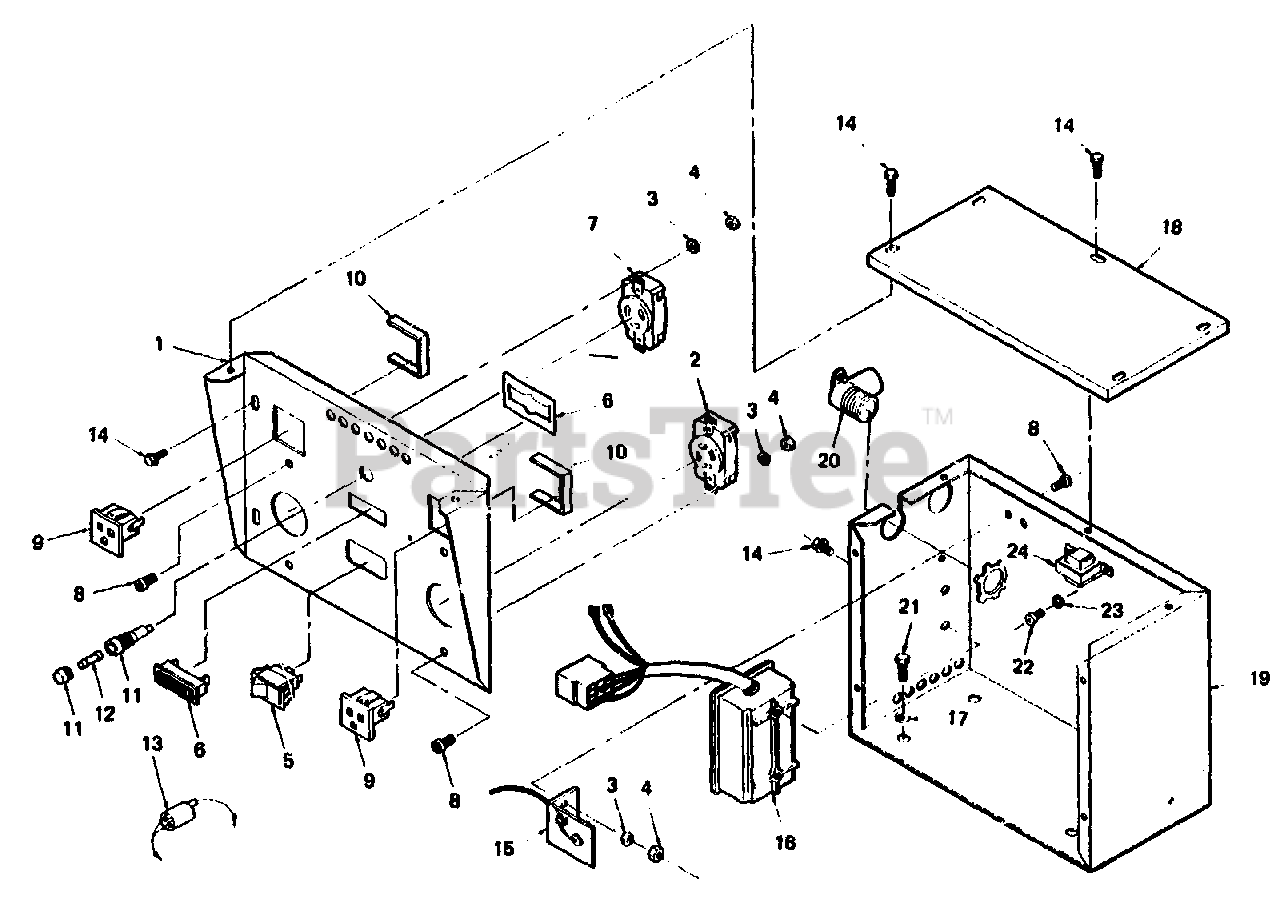

580.328260 (8650-0) - Craftsman 7,500 Watt Portable Generator Control Panel Parts Diagram

7,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 50548

Panel - Silkscreened

$

$

Currently unavailable

2

Briggs & Stratton 43437

Outlet - 240V. 30A.

$

$

Not available

3

Briggs & Stratton 22152

Lockwasher - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22158

Hex. Nut - No. 10 - 32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 33868

Switch - Rocker SPDT
(Superseded to 33868GS)

$25.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 27767

Light and Bracket - Pilot

$

$

Not available

7

Briggs & Stratton 37807

Outlet - 120V. 30A.

$

$

Currently unavailable

8

Briggs & Stratton 36701

PHMS - No. 10 - 32 x .50 Lg.

$

$

Currently unavailable

9

Briggs & Stratton 22693

Outlet - PGB 15A.
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 27272

Retainer - Outlet

$

$

Currently unavailable

11

Briggs & Stratton 22669

Holder - Fuse

$

$

Currently unavailable

12

Briggs & Stratton 22668

Fuse - 30A.

$

$

Currently unavailable

13

Briggs & Stratton 45673

Assembly - Resistor

$

$

Currently unavailable

14

Briggs & Stratton 38045

Screw - 10 - 32 x .37 Lg. WHIZ

$

$

Currently unavailable

15

Briggs & Stratton 45992

Diode Assembly - Battery Charge
(Superseded to 5045992)

$11.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 42541

Assembly - V/F Regulator

$

$

Currently unavailable

17

Briggs & Stratton 22127

Washer - 1/4 Lock

$

$

Not available

18

Briggs & Stratton 50910

Top - Panel Shroud

$

$

Currently unavailable

19

Briggs & Stratton 49062

Shroud - Panel

$

$

Currently unavailable

20

Briggs & Stratton 25615

Connector - 90" x 3/8

$2.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22507

HHCS - 1/4 - 20 x .50 LG.

$

$

Not available

22

Briggs & Stratton 36901

Screw - No. 6 - 32 x .37 LG. PPHMS

$

$

Currently unavailable

23

Briggs & Stratton 22155

Lockwasher - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 47228

Transformer

$

$

Currently unavailable

Briggs & Stratton 37806

Plug, Connector - 120 Volt, 30 Amp.
(Superseded to 100523GS)

Note: Before ordering call Generac for quantity required.

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

Plug, Connector - 240 Volt, 30 Amp.
(Superseded to 43438GS)

Note: Before ordering call Generac for quantity required.

$26.99

$

Usually ships in 2-12 days

0
