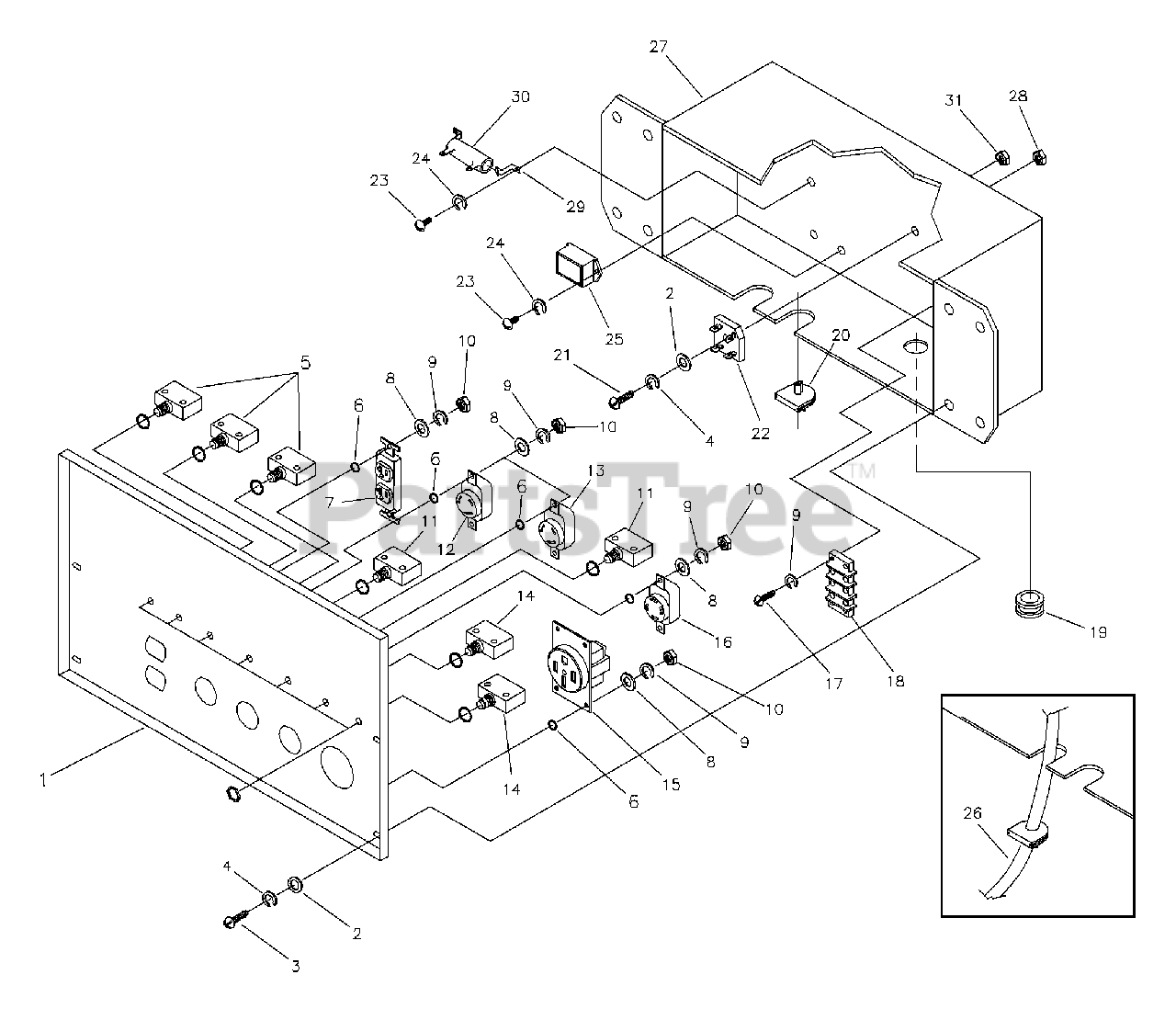

580.328301 (1335-1) - Craftsman 10,000 Watt Portable Generator Control Panel Parts Diagram

10,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton BB4504GS

PANEL, Control

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 91526GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 75207GS

BREAKER, Circuit, 20 A
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 23365GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68759GS

OUTLET, 120 V, 20 A, Duplex

$24.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 38150GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22264GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 51715GS

NUT

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30 A
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 74190GS

OUTLET, 120 V, 20 A Twistlock

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68868GS

OUTLET, 120 V, 30 A Twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B4445GS

BREAKER, Circuit, 45 A

$161.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4262GS

OUTLET, 120/250 V, 50 A

$142.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43437GS

OUTLET, 120/240 V, 30 A, Twistlock

$17.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 80077GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 92953GS

BLOCK, 50 A, 3 - Terminal

$17.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 90576GS

GROMMET, Rubber

$9.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84135GS

GROMMET, Rubber

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75477GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B4894GS

RECTIFIER, Battery Charge

$

$

Not available

23

Briggs & Stratton 43181GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 43182GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 77314GS

RELAY, Thermal

$76.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B4737GS

ASSY, Wire Harness

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B95906GS

BOX, Control Panel

$168.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 51716GS

NUT

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4893GS

STAND OFF

$

$

Not available

30

Briggs & Stratton B4892GS

RESISTOR, 2ohm 25 watt
(Superseded to B4893GS)

$

$

Not available

31

Briggs & Stratton 51714GS

NUT

$3.49

$

Usually ships in 2-12 days

0
