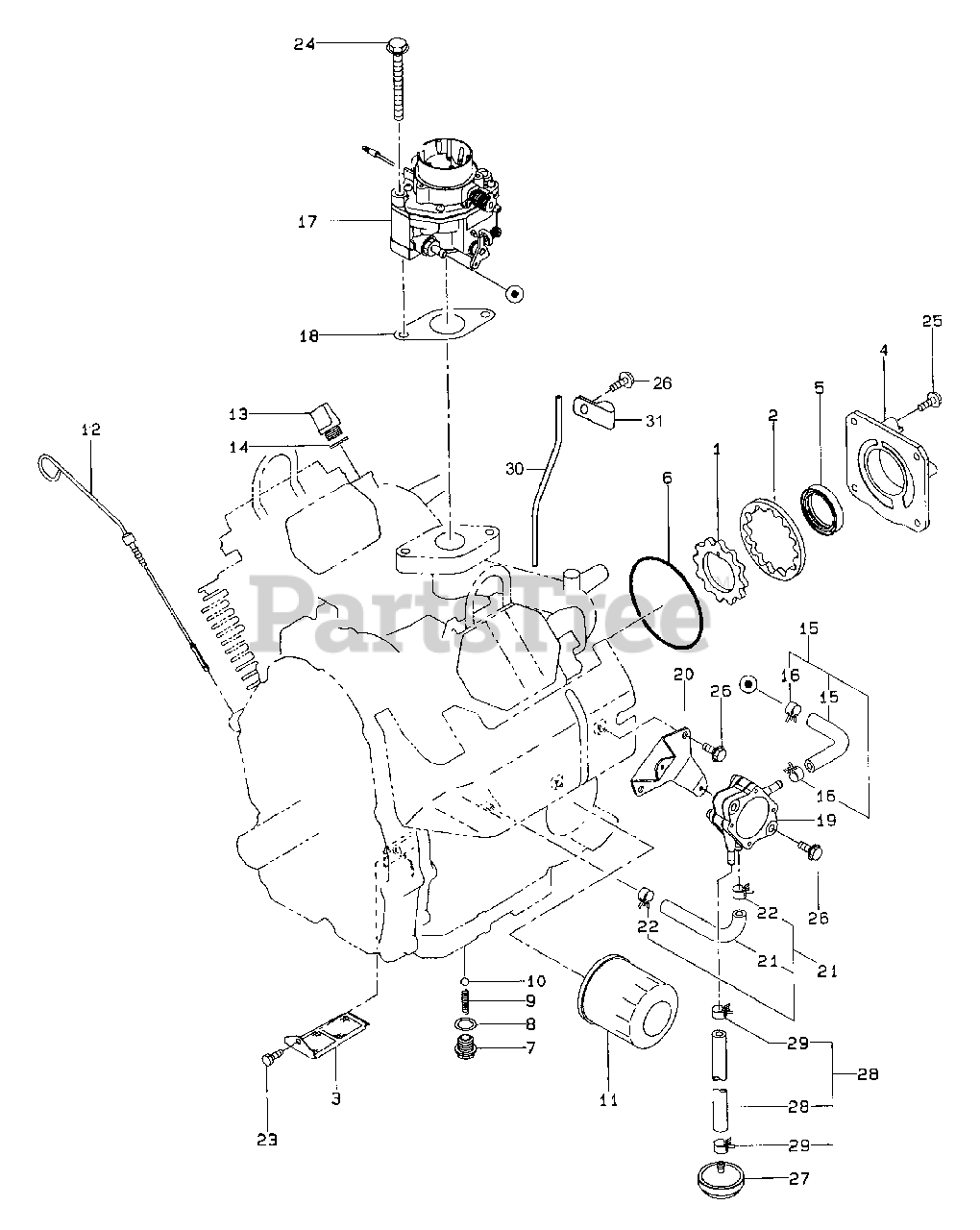

580.328301 (1335-1) - Craftsman 10,000 Watt Portable Generator Fuel Pump Assembly Parts Diagram

10,000 Watt Portable Generator

Fuel Pump Assembly Parts Diagram

  • Title

1

Briggs & Stratton 2636390103

INNER ROTOR

$

$

Currently unavailable

2

Briggs & Stratton 2636390203

OUTER ROTOR

$

$

Currently unavailable

3

Briggs & Stratton 2636430102

OIL PUMP FILTER UNIT

$

$

Currently unavailable

4

Briggs & Stratton 2636400101

OIL PUMP COVER, compl.

Note: (Includes item 5)

$

$

Currently unavailable

5

0440350090

OIL SEAL

$

$

Not available

6

Briggs & Stratton X240890020

O-RING

$

$

Currently unavailable

7

Briggs & Stratton 2636500113

PLUG, oil relief

$

$

Currently unavailable

8

Briggs & Stratton 0037014000

GASKET, aluminum

$

$

Currently unavailable

9

Briggs & Stratton 2486560103

SPRING, relief valve

$

$

Currently unavailable

10

Briggs & Stratton 0069030800

STEEL BALL

$

$

Currently unavailable

11

26165902A0

OIL FILTER

$

$

Not available

12

Briggs & Stratton 26363602A1

OIL GAUGE, compl.

$

$

Currently unavailable

13

Briggs & Stratton 2636360203

OIL FILL CAP

$

$

Currently unavailable

14

Briggs & Stratton 0213160010

GASKET

$

$

Currently unavailable

15

Briggs & Stratton 2636260101

FUEL PIPE, compl.

Note: (Includes items 15 and 16)

$

$

Currently unavailable

15

Briggs & Stratton 2636800103

RUBBER PIPE

$

$

Currently unavailable

16

Briggs & Stratton 2636850103

HOSE CLAMP

$

$

Currently unavailable

17

Briggs & Stratton 2636250100

CARBURETOR ASSY

$

$

Currently unavailable

18

Briggs & Stratton 2636620103

GASKET, carburetor

$

$

Currently unavailable

19

Briggs & Stratton 2486220100

FUEL PUMP ASSY

$

$

Currently unavailable

20

Briggs & Stratton 2636500202

BRACKET, fuel pump

$

$

Currently unavailable

21

Briggs & Stratton 2636265001

PULSE PIPE, compl.

Note: (Includes items 21 and 22)

$

$

Currently unavailable

21

Briggs & Stratton 2636805103

RUBBER PIPE

$

$

Currently unavailable

22

Briggs & Stratton 2636850103

HOSE CLAMP

$

$

Currently unavailable

23

Briggs & Stratton X116050020

BOLT

$

$

Currently unavailable

24

Briggs & Stratton 0110080110

FLANGE BOLT

$

$

Currently unavailable

25

0110060140

FLANGE BOLT

$

$

Not available

26

0110060020

FLANGE BOLT

$

$

Not available

27

Briggs & Stratton 26365011A0

FUEL FILTER ASSY

$

$

Currently unavailable

28

Briggs & Stratton 26362611A1

FUEL PIPE COMPL.

Note: (Includes items 28 and 29)

$

$

Currently unavailable

28

Briggs & Stratton 2636800203

RUBBER PIPE

$

$

Currently unavailable

29

Briggs & Stratton 2636850103

HOSE CLAMP

$

$

Currently unavailable

30

Briggs & Stratton 16067402A3

VINYL PIPE

$

$

Currently unavailable

31

2067550101

CLAMP CP

$

$

Not available
