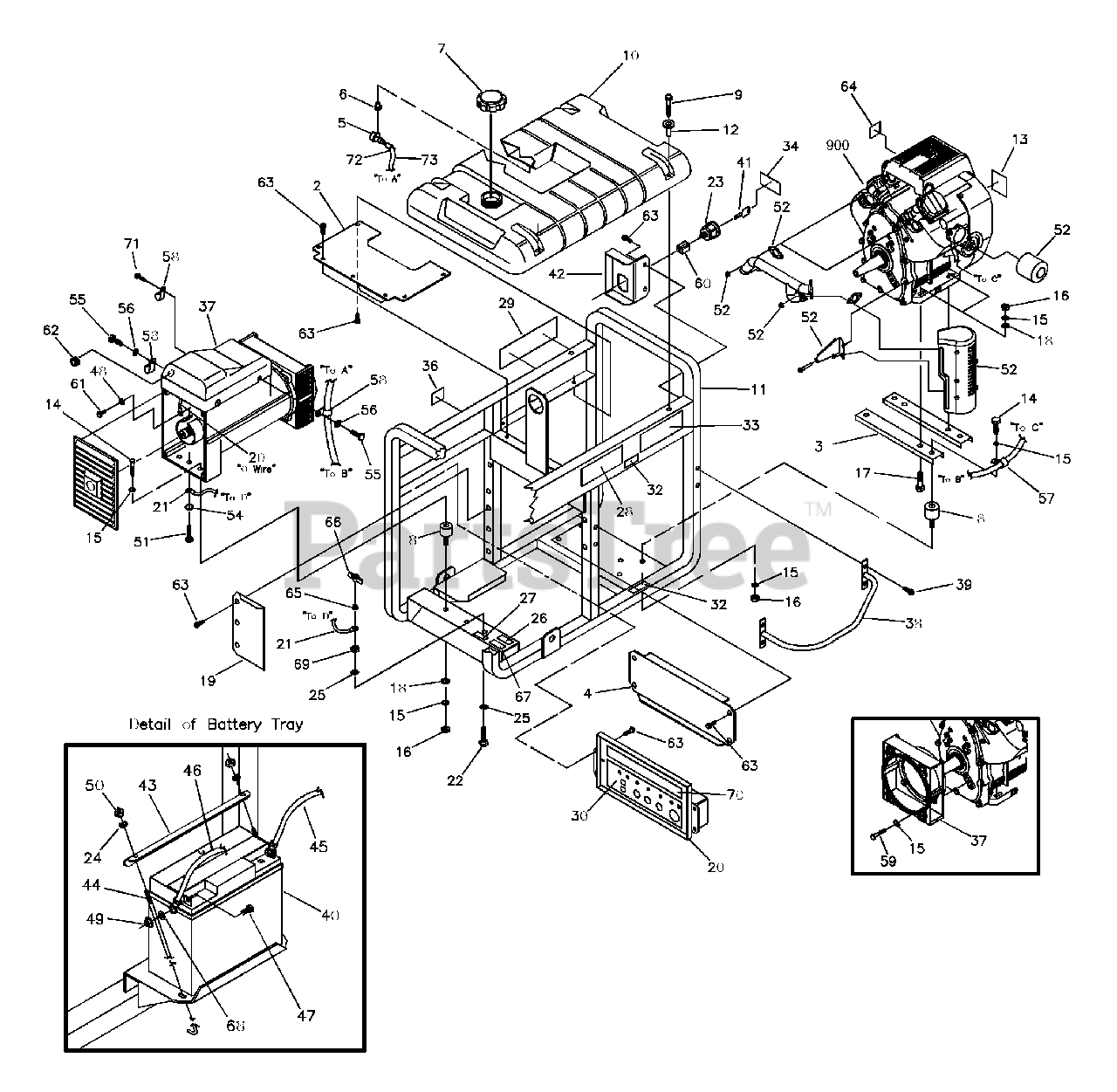

580.328301 (1335-1) - Craftsman 10,000 Watt Portable Generator Main Unit Parts Diagram

10,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton BB4509GS

SHIELD, Heat

$27.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton BB4811GS

SHIELD, Heat

$50.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270GS

VALVE, Fuel Shut-Off
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299GS

BUSHING, Fuel Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton B4325GS

CAP, Fuel Tank

$93.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38353GS

MOUNTS, Vibration

$39.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

10

Briggs & Stratton B1997GS

ASSY, Tank, Fuel

Note: (Includes Items 5 & 6)

$

$

Not available

11

Briggs & Stratton BB4426GS

CRADLE

$

$

Not available

12

Briggs & Stratton 83465GS

GROMMET, Fuel Tank Mounting

$3.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 186963GS

DECAL, Engine Shroud

$20.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22241GS

NUT

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22746GS

SCREW
(Superseded to 704289)

$4.99

$

In Stock, Qty 16

0

18

Briggs & Stratton 22131GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton BB5228GS

SHIELD, Heat

$13.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4425GS

ASSY, Control Panel

Note: (See "Control Panel" illustration and parts list.)

$857.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 1955362GS1

ASSY, Wire, Ground

$

$

Currently unavailable

22

Briggs & Stratton 45757GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B4502GS

SWITCH, Key Ingnition

$18.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22145GS

WASHER

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 96409GS

DECAL, 1-800

$8.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton B4647GS

DECAL, Side Panel

$

$

Currently unavailable

30

Briggs & Stratton 186947GS

DECAL, Control Panel

$50.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B4826GS

DECAL, Start Instructions

$7.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B4824GS

DECAL, Start - Run - Stop

$4.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 73054GS

DECAL, Fuel Shut-Off

$8.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B4268GS

ALTERNATOR

$2472.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton BB4481GS

GUARD, Muffler

$29.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 20441GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4489GS

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 4 left!

0

41

Briggs & Stratton B4627GS

KEY, Ignition Switch

$6.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton BB4682GS

BRACKET, Ignition Switch

$10.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B96925GS

BRACKET, Battery Tie Down

$10.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 96924GS

J-BOLT

$7.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 19353621GS

CABLE, Battery Positive

$19.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 19453621GS

CABLE, Battery Negative

$23.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 52618GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 52856GS

NUT, Lock

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 49820GS

NUT, Nylok

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 39253GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

52

NSP

SUPPLIED WITH ENGINE

$

$

Not available

54

Briggs & Stratton 27482GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 47411GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

57

Briggs & Stratton B4948GS

CLAMP, Hose

$1.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 55934GGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 22511GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B4803GS

CONNECTOR, 5-way

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 52618GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B4794GS

GROMMET, Generator Cover

$4.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton B4988GS

DECAL, Oil Fill

$1.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 52857GS

NUT, Lock

$3.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 87680GS

SCREW, Wing

$7.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B4901GS

DECAL, 1-800-4-My Home

$8.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton B4648GS

DECAL, Control Panel

$

$

Not available

71

Briggs & Stratton 76040GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 48031CGS

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, only 4 left!

0

73

Briggs & Stratton 30340GS

HOSE
(Superseded to 499742)

$77.99

$

In Stock, Qty 16

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton BB3061GS

SAE 30 Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B3518GS

Oil bottle spout

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806GS

125 Volt 30 Amp plug
(Superseded to 100523GS)

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

240 Volt 30 Amp plug

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93568GS

125 Volt 20 Amp plug

Note: Not Illustrated

$27.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 186942GS

Owner's manual

Note: Not Illustrated

$16.99

$

Usually ships in 2-12 days

0
