580.328310 (030203-0) - Craftsman 10,000 Watt Portable Generator Main Unit (194785) Parts Diagram

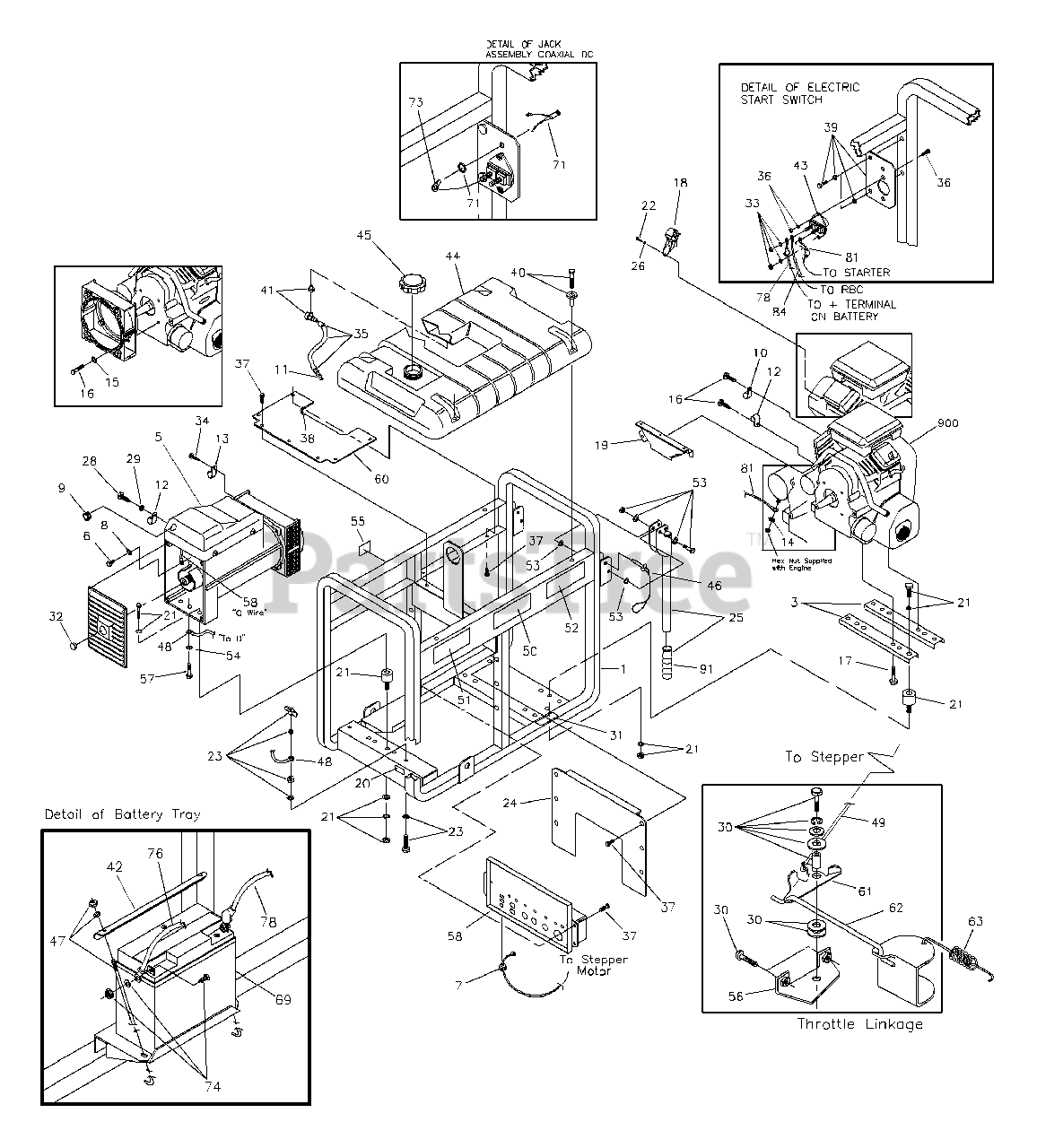

10,000 Watt Portable Generator

Main Unit (194785) Parts Diagram

  • Title

1

Briggs & Stratton M189487GS

CRADLE

$713.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton M77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

-----

HHCS, M5 - 0.8 x 12

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 62265GS

GROMMET, Rubber

$8.49

$

Usually ships in 2-12 days

0

8

-----

WASHER, M5 Lock

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton B4794GS

GROMMET, Generator Cover

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 96832GS

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192280GS

BARB, Hose

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 55934GGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 55934TGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

14

-----

WASHER, M6 Shakeproof

Note: (Purchase locally)

$

$

Not available

15

-----

WASHER, 3/8" Lock

Note: (Purchase locally)

$

$

Not available

16

-----

HHCS, 3/8 x 1-1/4"

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 75246GS

SELF TAPPING, 3/8"-16 x 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 96867GS

ASSY, Stepper Motor

$261.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SHIELD, Heat

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194526GS

KIT, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

-----

HHCS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

23

Briggs & Stratton 194533GS

KIT, Grounding Hardware

$

$

Not available

24

Briggs & Stratton JB5567GS

SHIELD, Heat

$74.99

$

Usually ships in 2-12 days

0

26

-----

WASHER, Lock M8

Note: (Purchase locally)

$

$

Not available

28

-----

CAPSCREW, M6 - 1.0 X 16 Lg.

Note: (Purchase locally)

$

$

Not available

29

-----

WASHER, Flat M6

Note: (Purchase locally)

$

$

Not available

30

Briggs & Stratton 194543GS

KIT, Throttle Linkage Hardware

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 187049GS

PLUG, Dome

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194441GS

KIT, Hardware Contact Starter

$2.49

$

Usually ships in 2-12 days

0

34

-----

SCREW, M5-0.8 x 16 Lg Phillips

Note: (Purchase locally)

$

$

Not available

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 194440GS

KIT, Starter Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

37

-----

SCREW, #12 Self Driller

Note: (Purchase locally)

$

$

Not available

38

Briggs & Stratton A5850GS

U-CHANNEL, .09" Groove x 4"

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 194439GS

KIT, Mounting Plate

$11.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194401GS

KIT, Hardware Tank, Fuel

Note: (Includes Qty 4)

$8.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel Shut-Off

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton M96925GS

BRACKET, Battery Tie Down

$

$

Not available

43

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B1997GS

TANK, Fuel

Note: (Includes Item 41)

$

$

Not available

45

Briggs & Stratton B4325GS

CAP, Fuel Tank

$93.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 193986GS

KIT, J-Bolt with Hardware

$16.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 19553621GS

ASSY, Wire, Ground

$7.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

LINKAGE, Stepper Motor to Bell Crank

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Hardware Fold Down Handle

$10.99

$

Usually ships in 2-12 days

0

54

-----

WASHER, 5/16" Shakeproof

Note: (Purchase locally)

$

$

Not available

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-Off

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 95349GS

PLATE, Adjust

$7.49

$

Usually ships in 2-12 days

0

57

-----

HHCS, M8 - 1.25 x 20 Lg.

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 186076GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

60

Briggs & Stratton JB4509AGS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

BRACKET, Bell Crank

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

LINKAGE, Bell Crank to Throttle

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

SPRING

$58.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

71

Briggs & Stratton 192531GS

ASSY, Jack, DC

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 19753621GS

CABLE, Battery Negative

$14.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302DGS

CABLE, Battery Positive

$18.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 189302AGS

ASSY, Wire, #16

$22.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 186102GS

WIRE, Harness

$57.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton B193200GS

ASSY, Handle

Note: (Includes Item 91)

$39.99

$

In Stock, Qty 6

0

91

Briggs & Stratton 198669GS

GRIP

$8.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (350445-1401-E1)

$

$

Not available

Briggs & Stratton 692099

MUFFLER

Note: Not Illustrated

$184.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690898

CLAMP, Muffler

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 691513

BRACKET, Muffler

Note: Not Illustrated

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 392390

SPARK ARRESTOR
(Superseded to 794945)

Note: Not Illustrated

$53.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690661

SCREW, Set

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 692056

BOLT

Note: Not Illustrated

$5.99

$

In Stock, Qty 6

0

Briggs & Stratton 692359

SCREW, SEMS M6 x 12

Note: Not Illustrated

$99.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194591GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061GS

OIL BOTTLE
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B3518GS

CAP, Funnel, Oil Bottle

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A, 4 Prong

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93568GS

PLUG, 125V, 20A

Note: Not Illustrated

$27.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 120V/30A, 3 Prong

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 492932S

OIL FILTER

Note: Not Illustrated

$12.99

$

In Stock, Qty 20+

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199384GS

DECAL, Family, CA EVP

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194800GS

KIT, Decals, Service

Note: Not Illustrated

$62.99

$

Usually ships in 2-12 days

0
