580.328310 (8844-0) - Craftsman 750 Watt Portable Generator Generator Parts Diagram

750 Watt Portable Generator

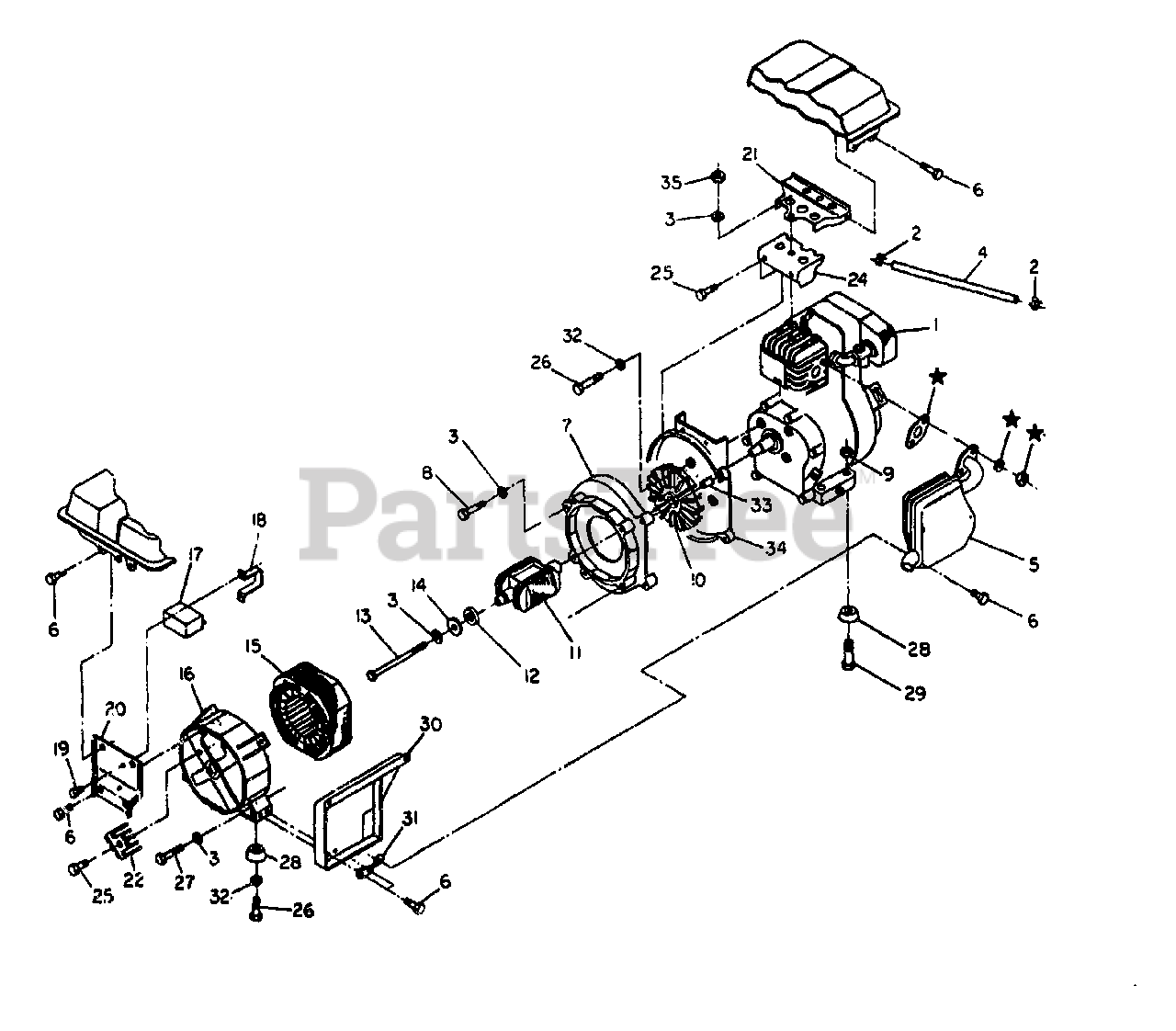

Generator Parts Diagram

  • Title

1

Briggs & Stratton 65186

ENGINE- 1.6 H.P. (Kawasaki FA-76)

$

$

Currently unavailable

2

Briggs & Stratton 66836

CLAMP, Fuel Line

$

$

Currently unavailable

3

Briggs & Stratton 22097

WASHER, Lock- M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66866

HOSE, Fuel

$

$

Currently unavailable

5

Briggs & Stratton 65778

MUFFLER, Exhaust- Spark Arrestor
(Superseded to 65778GS)

$379.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66886

SCREW, Hex Head Machine- M6-1.00 x 12mm With Lock Washer

$

$

Currently unavailable

7

Briggs & Stratton 67105

ADAPTER, Cooling Fan

$

$

Currently unavailable

8

Briggs & Stratton 51753

CAPSCREW, Hex Head- M6-1.00 x 40mm
(Superseded to 51753GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66834

NUT, Flanged Lock- M8-1.25

$

$

Currently unavailable

10

Briggs & Stratton 64685

FAN, Cooling

$

$

Currently unavailable

11

Briggs & Stratton 65771

ASSEMBLY, Rotor

$

$

Currently unavailable

12

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65792

BOLT, Rotor- M6-1.00 x 150mm

$

$

Currently unavailable

14

Briggs & Stratton 65793

WASHER, Flat- Special M6

$

$

Currently unavailable

15

Briggs & Stratton 65794

ASSEMBLY, Stator

$

$

Currently unavailable

16

Briggs & Stratton 66373

CARRIER, Rear Bearing

$

$

Currently unavailable

17

Briggs & Stratton 66800

CAPACITOR, Excitation

$

$

Currently unavailable

18

Briggs & Stratton 66385

BRACKET, Capacitor Support

$

$

Currently unavailable

19

Briggs & Stratton 65768

SCREW, with Lock Washer M5-0.80 x 6mm

$

$

Currently unavailable

20

Briggs & Stratton 66383

BRACKET, Generator End

$

$

Currently unavailable

21

Briggs & Stratton 65790

BRACKET, Engine End

$

$

Currently unavailable

22

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

24

Briggs & Stratton 66867

DUCT, Air

$

$

Currently unavailable

25

Briggs & Stratton 66849

SCREW (Taptite) - M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 66889

CAPSCREW- M8-1.25 x 20mm

$

$

Currently unavailable

27

Briggs & Stratton 66449G

BOLT, Stator- M6-1.00 x 75mm

$

$

Currently unavailable

28

Briggs & Stratton 65773

MOUNT, Vibration

$

$

Currently unavailable

29

Briggs & Stratton 42909

CAPSCREW- M8-1.25 x 30mm
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66870

BOX, Muffler Air

$

$

Currently unavailable

31

Briggs & Stratton 66869

BRACKET, Muffler Support

$

$

Currently unavailable

32

Briggs & Stratton 22129

WASHER, Lock- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 67106

DOWEL, Adapter Casting

$

$

Currently unavailable

34

Briggs & Stratton 67118

CASTING, Adapter

$

$

Not available

35

Briggs & Stratton 49813

NUT, Hex- M6-1.00
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0
