580.328321 (8964-0) - Craftsman 1,400 Watt Portable Generator Rewind Starter No. 590642 Parts Diagram

1,400 Watt Portable Generator

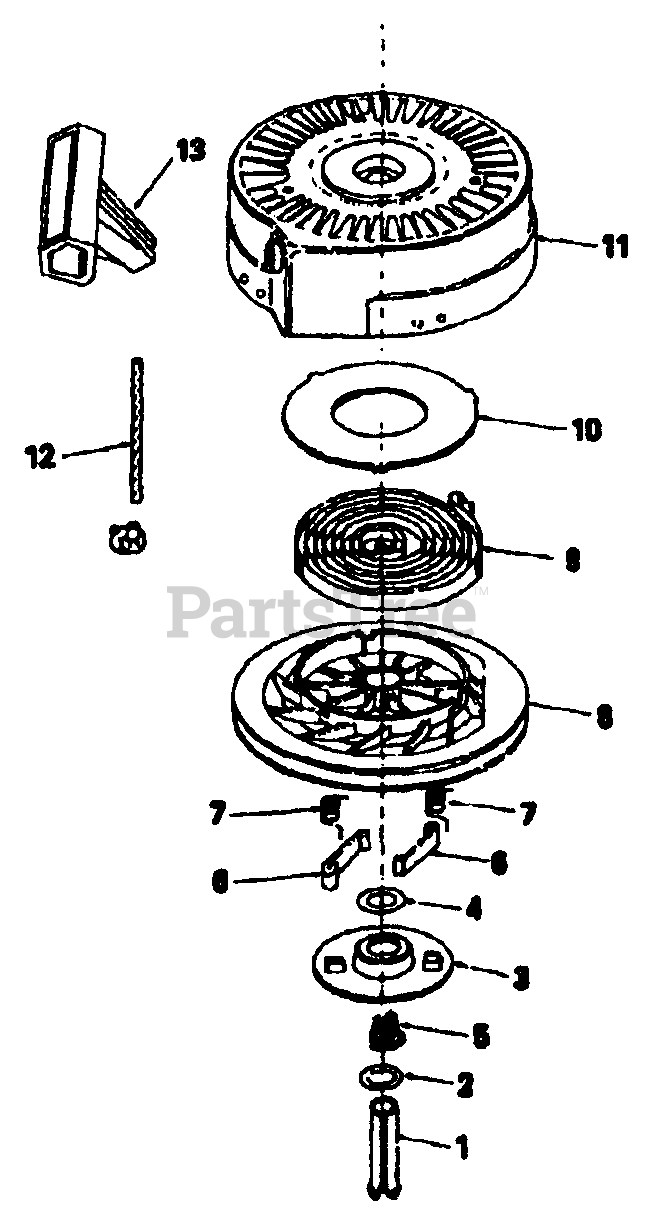

Rewind Starter No. 590642 Parts Diagram

  • Title

Briggs & Stratton 590642

Starter, Rewind

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 590599A

Pin, Spring

Note: (Incl. No. 4) - Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 590600

Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 590615

Retainer

Note: Contact Generac for quantity required

$11.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 590601

Washer

Note: Contact Generac for quantity required

$18.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 590598

Spring, Brake

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 590616

Dog, Starter

Note: Contact Generac for quantity required

$160.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 590617

Spring, Dog

Note: Contact Generac for quantity required

$160.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 590618

Pulley

Note: Contact Generac for quantity required

$157.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 590619

Spring, Rewind

Note: Contact Generac for quantity required

$160.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 590620

Cover, Spring

Note: Contact Generac for quantity required

$157.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 590643

Housing Assy., Starter

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 590535

Rope, Starter (Length 62" & 9/64" dia.)

Note: Contact Generac for quantity required

$14.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 590452

Handle, Starter

Note: Contact Generac for quantity required

$16.99

$

Usually ships in 2-12 days

0
