580.328330 (8846-0) - Craftsman 2,400 Watt Portable Generator 2400 Watt AC Generator Parts Diagram

2,400 Watt Portable Generator

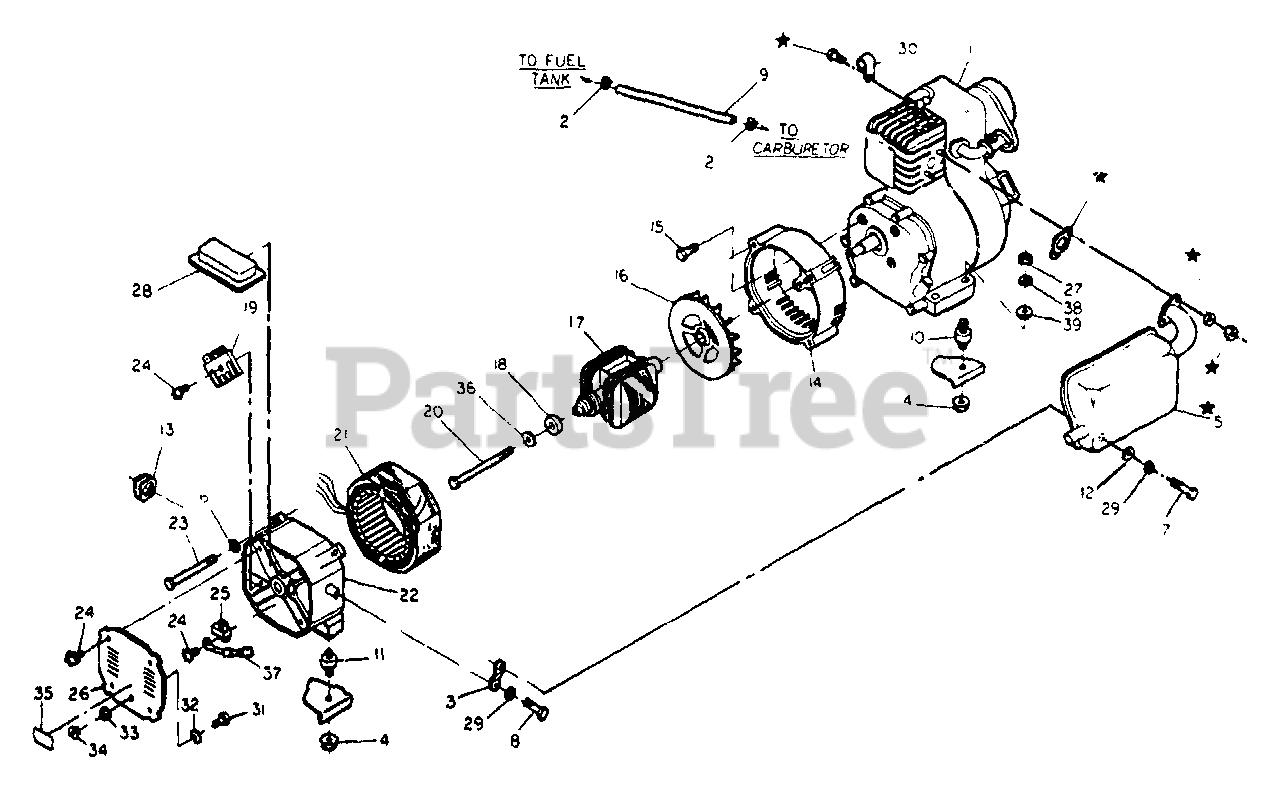

2400 Watt AC Generator Parts Diagram

  • Title

1

Briggs & Stratton 65188

ENGINE-5 HP Kawasaki

$

$

Currently unavailable

2

Briggs & Stratton 66836

CLAMP, Fuel Line

$

$

Currently unavailable

3

Briggs & Stratton 66462

BRACKET, Muffler Support

$

$

Not available

4

Briggs & Stratton 66849B

SCREW, (Taptite)- M5-0.80 x 8mm
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66432

MUFFLER, Spark Arrest
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097

LOCKWASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 52243

CAPSCREW, Hex Head-M10-1.50 x 60mm

$

$

Not available

8

Briggs & Stratton 51755

CAPSCREW, Hex Head-M10-1.50 x 16mm

$

$

Currently unavailable

9

Briggs & Stratton 66837A

HOSE, Fuel- 470mm long

$

$

Currently unavailable

9

Briggs & Stratton 66837B

HOSE, Fuel- 90mm long

$

$

Currently unavailable

10

Briggs & Stratton 66443A

MOUNT, Vibration - Engine

$

$

Currently unavailable

11

Briggs & Stratton 70629

SCREW, Pan Head - M8-1.25 x 40mm

$

$

Currently unavailable

12

Briggs & Stratton 49813

NUT, Hex - M6-1.00
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 39253

CAPSCREW, Hex Head - M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

17

Briggs & Stratton 65785

ROTOR ASSY

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Rotor
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 66448B

BOLT, Rotor - M8-1.25 x 190mm

$

$

Currently unavailable

21

Briggs & Stratton 66454

STATOR ASSY
(Superseded to 66454GS)

$

$

Not available

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449B

BOLT, Stator - M6-1.00 x 90mm

$

$

Currently unavailable

24

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

BRUSH ASSY
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 45771

NUT, Hex - M8-1.25

$

$

Not available

28

Briggs & Stratton 66850

BOARD, Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

LOCKWASHER-M10

$

$

Not available

30

Briggs & Stratton 66894

CLAMP, Fuel Line Support
(Superseded to 695002)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 52619

SCREW, Machine - M5-0.80 x 20mm
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67444

WASHER, Serrated - M6

$

$

Currently unavailable

33

Briggs & Stratton 51716

NUT, Hex- M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67435

NUT, Wing- M5-0.80

$

$

Currently unavailable

35

Briggs & Stratton 67210

DECAL-Ground
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

FLATWASHER Special- M8

$

$

Currently unavailable

37

Briggs & Stratton 67462

DIODE ASY - FIELD BOOST
(Superseded to 67462GS)

$22.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22129

LOCKWASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49810

FLATWASHER-M8
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 49226

LOCKWASHER-M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 66849A

SCREW (Taptite) - M5-0.80 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 23897

FLATWASHER - M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

SCREW, Pan Head - M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0
