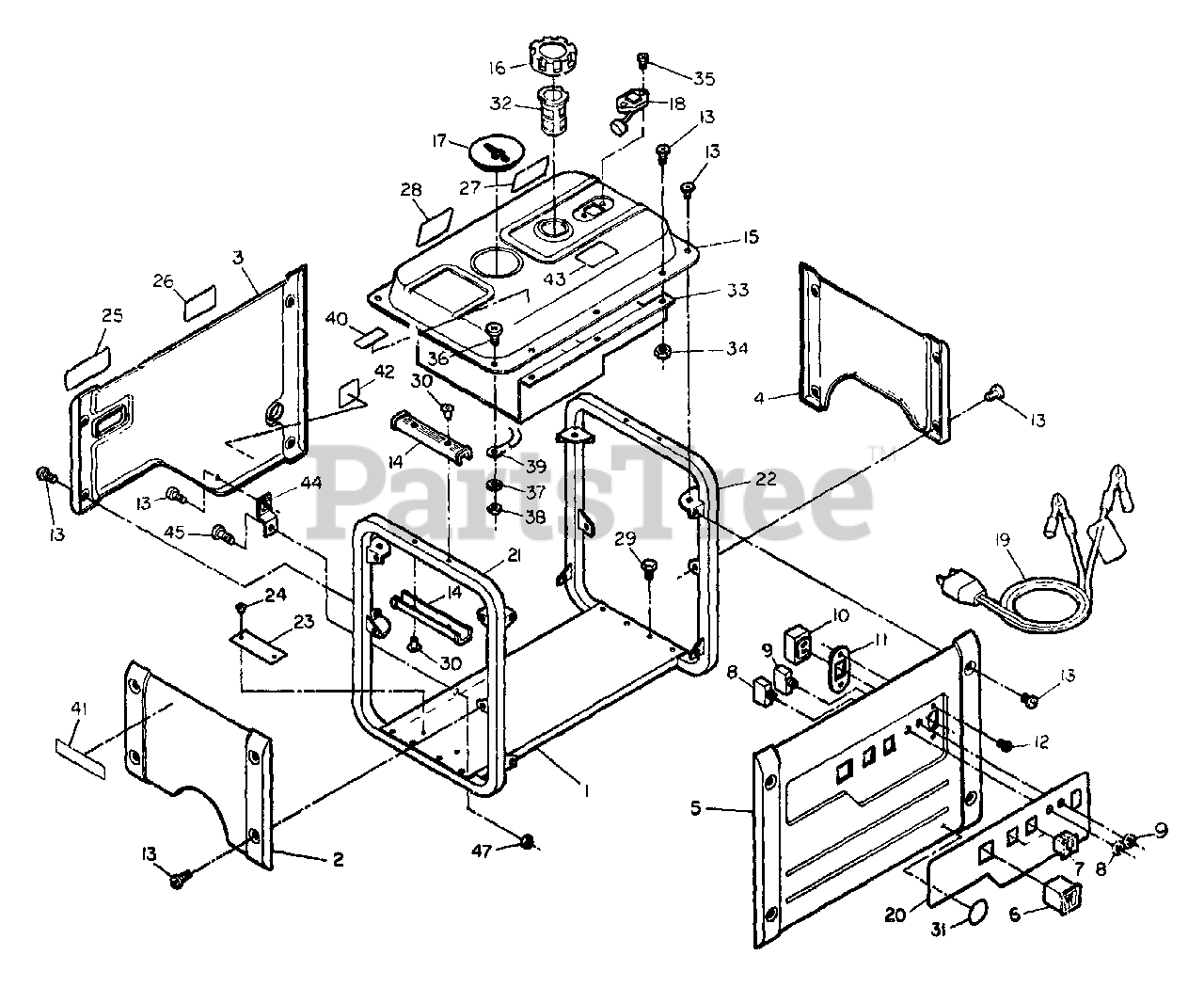

580.328330 (8846-0) - Craftsman 2,400 Watt Portable Generator Cradle & Enclosure Parts Diagram

2,400 Watt Portable Generator

Cradle & Enclosure Parts Diagram

  • Title

1

Briggs & Stratton 66394

BASE, Engine Cradle

$

$

Currently unavailable

2

Briggs & Stratton 66456

PANEL, Engine End

$

$

Currently unavailable

3

Briggs & Stratton 66457

PANEL, Muffler

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66453

PANEL, Generator End

$

$

Currently unavailable

5

Briggs & Stratton 66455

PANEL, Receptacle

$

$

Currently unavailable

6

Briggs & Stratton 66817

SWITCH, Engine-Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 66818

RECEPTACLE- 120 volts a-c
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66819

BREAKER, Circuit - 20 amps

$

$

Currently unavailable

9

Briggs & Stratton 66820

BREAKER, Circuit- 10 d-c amps

$

$

Not available

10

Briggs & Stratton 66821

RECEPTACLE, Battery Charge
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66822

RETAINER, Battery Charge Receptacle
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66828

SCREW, Machine- M3-0.50 x 8mm

$20.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66827

SCREW, Machine- M5-0.80 x 12mm

Note: (Includes Lockwasher)

$

$

Not available

14

Briggs & Stratton 66450

COVER, Carrying Handle

$

$

Not available

15

Briggs & Stratton 69661

TANK, Fuel- 2.34 U.S. Gallons

$

$

Not available

16

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

17

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

GAUGE, Fuel Level

$

$

Not available

19

Briggs & Stratton 67587

CABLE, Battery Charge

$

$

Currently unavailable

20

Briggs & Stratton 65788

DECAL- Receptacle Panel

$

$

Currently unavailable

21

Briggs & Stratton 66392

CRADLE, Engine End

$

$

Currently unavailable

22

Briggs & Stratton 66393

CRADLE, Generator End

$

$

Currently unavailable

23

Briggs & Stratton 66397D

PLATE, Data

$

$

Currently unavailable

24

Briggs & Stratton 66829

RIVET- 3mm

$

$

Currently unavailable

25

Briggs & Stratton 66823

DECAL, Choke

$

$

Currently unavailable

26

Briggs & Stratton 66824

DECAL- Caution-Hot

$

$

Currently unavailable

27

Briggs & Stratton 66398C

DECAL- Starting Data

$

$

Currently unavailable

28

Briggs & Stratton 67103

DECAL- Warranty

$

$

Currently unavailable

29

Briggs & Stratton 67459

SCREW (Crimptite)

$

$

Currently unavailable

30

Briggs & Stratton 66831

RIVET, Black Anodized- 4mm

$

$

Not available

31

Briggs & Stratton 66864

DECAL- U.S.D.A.

$

$

Not available

32

Briggs & Stratton 70630

FILTER, Fuel

$

$

Currently unavailable

33

Briggs & Stratton 66880

SHIELD, Fuel Tank Heat

$

$

Currently unavailable

34

Briggs & Stratton 66839

NUT, Hex Lock - M5-0.80

$

$

Currently unavailable

35

Briggs & Stratton 52749

SCREW, Machine- M5-0.80 x 12mm

$

$

Currently unavailable

36

Briggs & Stratton 52619

SCREW, Machine- M5-0.80 x 20mm
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 67444

WASHER, Serrated- M5

$

$

Currently unavailable

38

Briggs & Stratton 51716

NUT, Hex - M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 6639521

WIRE, Ground (Green)

$

$

Currently unavailable

40

DECAL- Unleaded Fuel

Note: Contact Generac for quantity required. These parts are supplied with engine.

$

$

Not available

41

DECAL- Air Cleaner

Note: Contact Generac for quantity required. These parts are supplied with engine.

$

$

Not available

42

DECAL- Lubrication

Note: Contact Generac for quantity required. These parts are supplied with engine.

$

$

Not available

43

Briggs & Stratton 69674

DECAL- Fuel Caution

$

$

Currently unavailable

44

Briggs & Stratton 69632

BRACKET, Cover Support

$

$

Currently unavailable

45

Briggs & Stratton 66890

SCREW- M6-1.00 x 12mm
(Superseded to 66890GS)

Note: (Includes Lockwasher)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 48813

NUT, Hex - M6-1.00

$

$

Currently unavailable

Briggs & Stratton 66832A

MANUAL, Owners
(Superseded to 66832AGS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0
