580.328331 (8965-0) - Craftsman 2,400 Watt Portable Generator Generator Parts Diagram

2,400 Watt Portable Generator

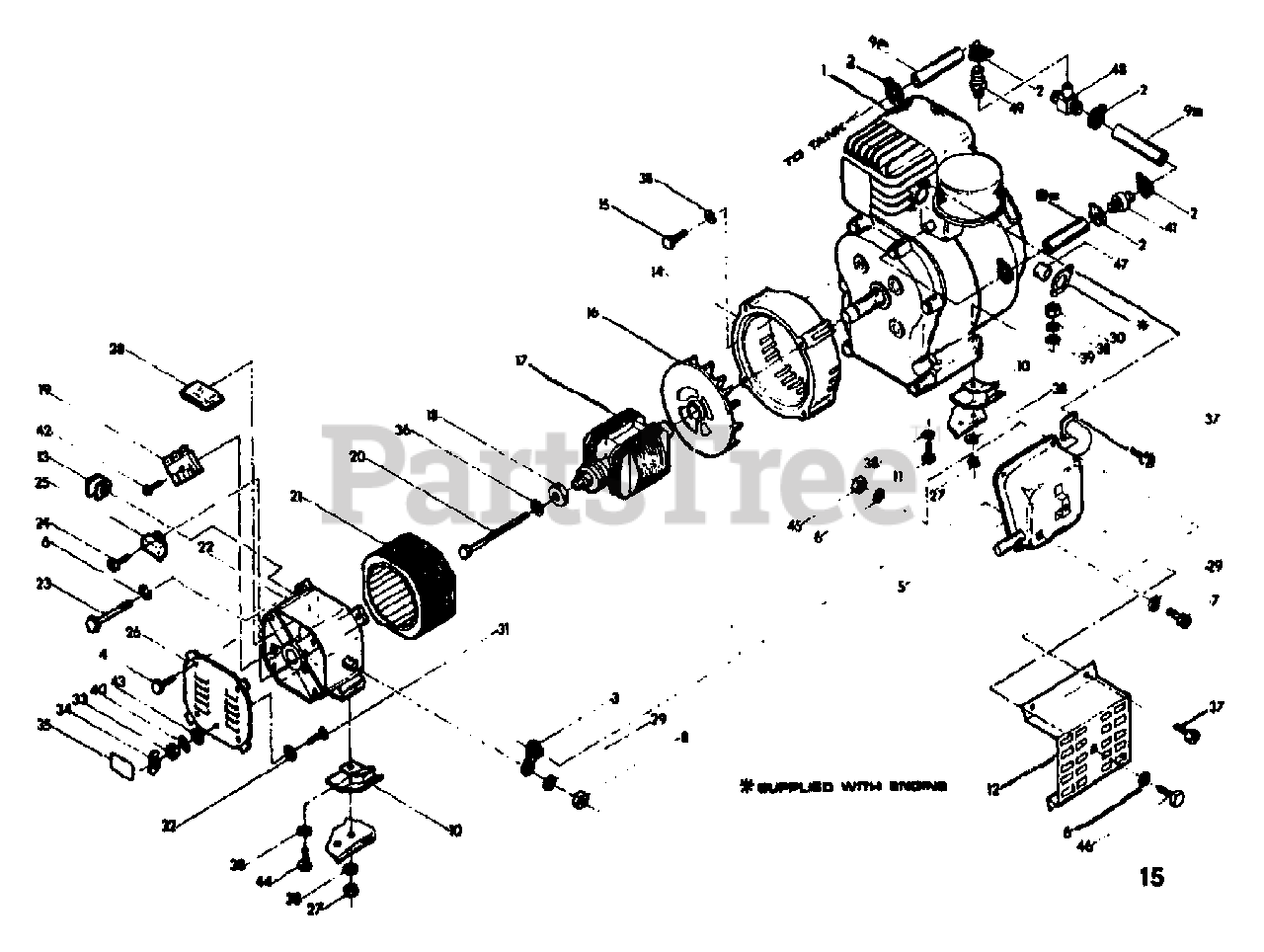

Generator Parts Diagram

  • Title

1

Briggs & Stratton 72271

ENGINE- B & S 5 HP

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 48031C

CLAMP, Fuel Line

Note: Contact Generac for quantity required

$

$

Not available

3

Briggs & Stratton 73020

BRACKET, Muffler Support

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 66849B

SCREW- M5-0.80 x 8mm
(Superseded to 66849BGS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72083

MUFFLER, Exhaust

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 22097

WASHER, Lock- 1/4"
(Superseded to 5022097)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73032

CAPSCREW, Socket Head 3/8"-16 x 1/2"

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 51755

CAPSCREW, Hex Head M10-1.50 x 16mm

Note: Contact Generac for quantity required

$

$

Currently unavailable

9A

Briggs & Stratton 47662F

HOSE, Fuel- 20" long

Note: Contact Generac for quantity required

$

$

Currently unavailable

9B

Briggs & Stratton 47662AN

HOSE, Fuel- 17" long

Note: Contact Generac for quantity required

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE, Fuel- 3" long

Note: Contact Generac for quantity required

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

Note: Contact Generac for quantity required

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 71752

SCREW - 5/16"-18 x 1-3/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 72292

SHIELD, Muffler Heat
(Superseded to 72292GS)

Note: Contact Generac for quantity required

$21.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365F

HOUSING, Engine Adapter
(Superseded to 66365FGS)

Note: Contact Generac for quantity required

$79.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22336

CAPSCREW- 5/16"-18 x 3/4"

Note: Contact Generac for quantity required

$

$

Not available

16

Briggs & Stratton 66389

FAN, Cooling

Note: Contact Generac for quantity required

$

$

Not available

17

Briggs & Stratton 72064

ROTOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

Note: Contact Generac for quantity required

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

Note: Contact Generac for quantity required

$

$

Not available

20

Briggs & Stratton 36180

BOLT, Rotor
(Superseded to 36180GS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 72061

STATOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 66449B

BOLT, Stator

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 66849

SCREW- M5-0.80 x 16mm
(Superseded to 66849GS)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

Note: Contact Generac for quantity required

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 45771

NUT, Hex - M8-1.25

Note: Contact Generac for quantity required

$

$

Not available

28

Briggs & Stratton 66850

RECTIFIER, Bridge
(Superseded to 66850GS)

Note: Contact Generac for quantity required

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

WASHER, Lock- M10

Note: Contact Generac for quantity required

$

$

Not available

30

Briggs & Stratton 22241

NUT, He. - 3/8"-16

Note: Contact Generac for quantity required

$

$

Not available

31

Briggs & Stratton 52619

SCREW- M5-0.80 x 20mm
(Superseded to 52619GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67444

WASHER- M5

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 51716

NUT, Hex - M5-0.80
(Superseded to 51716GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67435

NUT, Hex - M5-0.80

Note: Contact Generac for quantity required

$

$

Currently unavailable

35

Briggs & Stratton 67210

DECAL- Ground
(Superseded to 67210GS)

Note: Contact Generac for quantity required

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

WASHER, Flat- M8

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 39974

CAPSCREW, Socket Head

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 22129

WASHER, Lock- M8
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49810

WASHER, Flat- M8
(Superseded to 7049810YP)

Note: Contact Generac for quantity required

$128.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 49226

WASHER, Lock- M5
(Superseded to 49226GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 66849A

SCREW- M5-0.80 x 20mm
(Superseded to 66849AGS)

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 23897

WASHER, Flat- M5
(Superseded to 23897GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

SCREW- M8-1.25 x 20mm
(Superseded to 70644GS)

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

Note: Contact Generac for quantity required

$

$

Not available

46

Briggs & Stratton 43146

CAPSCREW- M6-1.00 x 10mm
(Superseded to 43146GS)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 60211

LINER, Port

Note: Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 71384

VALVE, Fuel Shutoff

Note: Contact Generac for quantity required

$

$

Not available

49

Briggs & Stratton 28414

FITTING, Barbed- 1/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 73053

MANUAL, Owners
(Superseded to 73053GS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0
