580.328331 (8965-1) - Craftsman 2,400 Watt Portable Generator Briggs And Stratton 4-Cycle Engine III (10/95) Parts Diagram

2,400 Watt Portable Generator

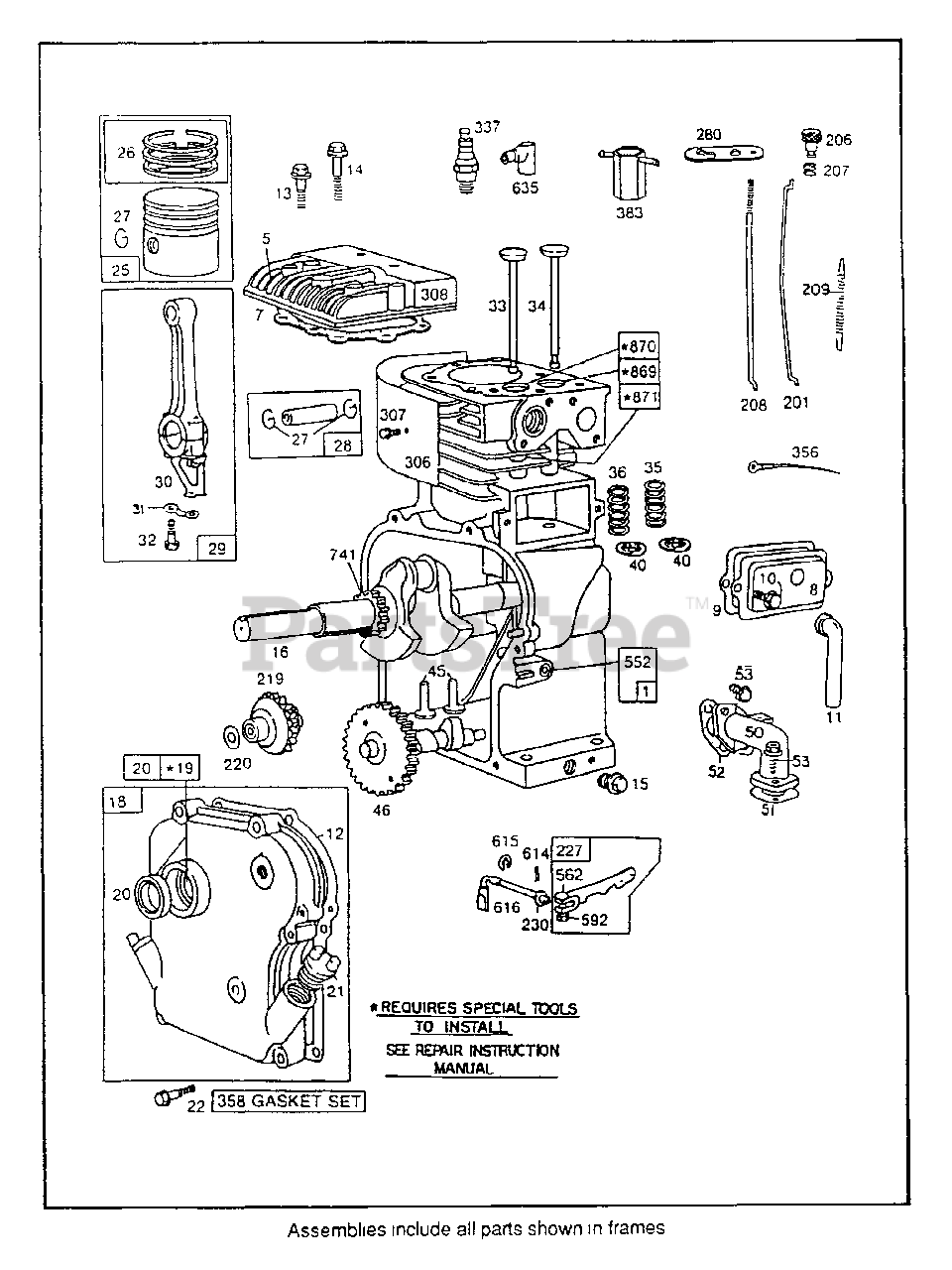

Briggs And Stratton 4-Cycle Engine III (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 211542

Head - Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 270383

Gasket - Cylinder Head
(Superseded to 272157S)

$6.49

$

In Stock, Qty 13

0

8

Briggs & Stratton 294178

Breather - Valve Chamber
(Superseded to 791779)

$15.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 27549

Gasket - Valve Cover
(Superseded to 27549S)

$3.99

$

In Stock, only 3 left!

0

10

Briggs & Stratton 93394

Screw - Breather Mounting
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 271489

Grommet - Breather Tube

$8.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270080

Gasket - Crankcase 0.015" thick (Standard)
(Superseded to 692213)

$3.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270125

Gasket - Crankcase 0.005" thick

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270126

Gasket - Crankcase 0.009" thick

$8.49

$

In Stock, only 4 left!

0

13

Briggs & Stratton 93368

Screw - Cylinder Head (2-3/32" long)
(Superseded to 691640)

$3.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton 93369

Screw - Cylinder Head (2-15/32" long)
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug - Pipe, 1/4" Std Square Head
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 397104

Crankshaft
(Superseded to 494035)

$178.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 230978

Crankshaft Gear Pin
(Superseded to 499047)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 392778

Cover Assembly - Crankcase
(Superseded to 694377)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing - Crankcase Cover

$

$

Not available

20

Briggs & Stratton 392741

Oil Seal and Spacer
(Superseded to 692019)

$9.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug - Oil Filler
(Superseded to 281658S)

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 93032

Screw - Crankcase Cover Mounting Sem
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298904

Piston - Standard
(Superseded to 793214)

$

$

Not available

25

Briggs & Stratton 298905

Piston - 0.010" OS

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston - 0.020" OS

$95.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298907

Piston - 0.030" OS

$

$

Not available

26

Briggs & Stratton 298982

Ring Set - Piston (Standard)

$48.99

$

In Stock, Qty 11

0

26

Briggs & Stratton 298983

Ring Set - Piston (0.010" OS)

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298984

Ring Set - Piston (0.020" OS)

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set - Piston (0.030" OS)

$23.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299742

Chrome Piston Ring Set Standard Size
(Superseded to 298982)

$48.99

$

In Stock, Qty 11

0

27

Briggs & Stratton 26026

Lock - Piston Pin
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin - Piston (Standard)

$8.99

$

In Stock, only 4 left!

0

28

Briggs & Stratton 298908

Pin - Piston (0.005" OS)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299430

Rod - Connecting

$40.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 390459

Connecting Rod 0.020" undersize Crankpin Bore

$

$

Not available

30

Briggs & Stratton 221890

Dipper - Connecting Rod
(Superseded to 691759)

$8.49

$

In Stock, only 1 left!

0

31

Briggs & Stratton 221876

Lock - Conn. Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw - Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve - Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve - Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring - Intake Valve
(Superseded to 690520)

$5.49

$

In Stock, Qty 9

0

36

Briggs & Stratton 26478

Spring - Exhaust Valve
(Superseded to 692180)

$6.49

$

In Stock, Qty 5

0

40

Briggs & Stratton 93312

Retainer - Intake Valve Spring
(Superseded to 692194)

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 260642

Tappet - Valve
(Superseded to 690509)

$5.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212733

Gear - Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 212358

Elbow - Intake

$

$

Not available

51

Briggs & Stratton 68987

Gasket - Carburetor Mounting

$5.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 27355

Gasket - Carburetor Mounting
(Superseded to 27355S)

$3.99

$

In Stock, Qty 15

0

53

Briggs & Stratton 93357

Screw - Carb & Intake Elbow Mtg.
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

201

Briggs & Stratton 261589

Link - Governor

$3.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260585

Spring - Governor Link
(Superseded to 691784)

$11.99

$

In Stock, only 4 left!

0

206

Briggs & Stratton 231266

Nut - Control Rod
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring - Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 261985

Rod - Control

$12.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261126

Spring - Governor
(Superseded to 796261)

$6.49

$

In Stock, only 4 left!

0

219

Briggs & Stratton 391737

Gear - Governor

$38.99

$

In Stock, only 4 left!

0

220

Briggs & Stratton 221551

Washer - Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 393920

Lever - Governor
(Superseded to 692357)

$14.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer - Gov. Lever
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

280

Briggs & Stratton 223236

Strap

$6.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 221511

Shield - Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93490

Screw - Cylinder Shield
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

308

Briggs & Stratton 221512

Cover - Cylinder Head
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 293918

Plug - Spark (Resistor)
(Superseded to 796112S)

$4.49

$

In Stock, Qty 17

0

356

Briggs & Stratton 398874

Wire - Ground
(Superseded to 491391)

$6.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 39745

Gasket Set

$

$

Currently unavailable

383

Briggs & Stratton 89838

Wrench - Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

552

Briggs & Stratton 231079

Bushing - Gov. Crank
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt - Gov. Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut - Hex (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

614

Briggs & Stratton 93306

Cotter - Hair Pin
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer - E Ring

$5.99

$

In Stock, only 4 left!

0

616

Briggs & Stratton 231077

Crank - Governor
(Superseded to 692016)

$

$

Not available

635

Briggs & Stratton 66538

Elbow - Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 15

0

741

Briggs & Stratton 261696

Gear - Timing

$52.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211787

Seat - Intake Valve (Standard)
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211436

Seat - Exhaust Valve (Cobalite)
(Superseded to 691856)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Guide - Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Guide - Intake Valve

$14.99

$

In Stock, only 3 left!

0
