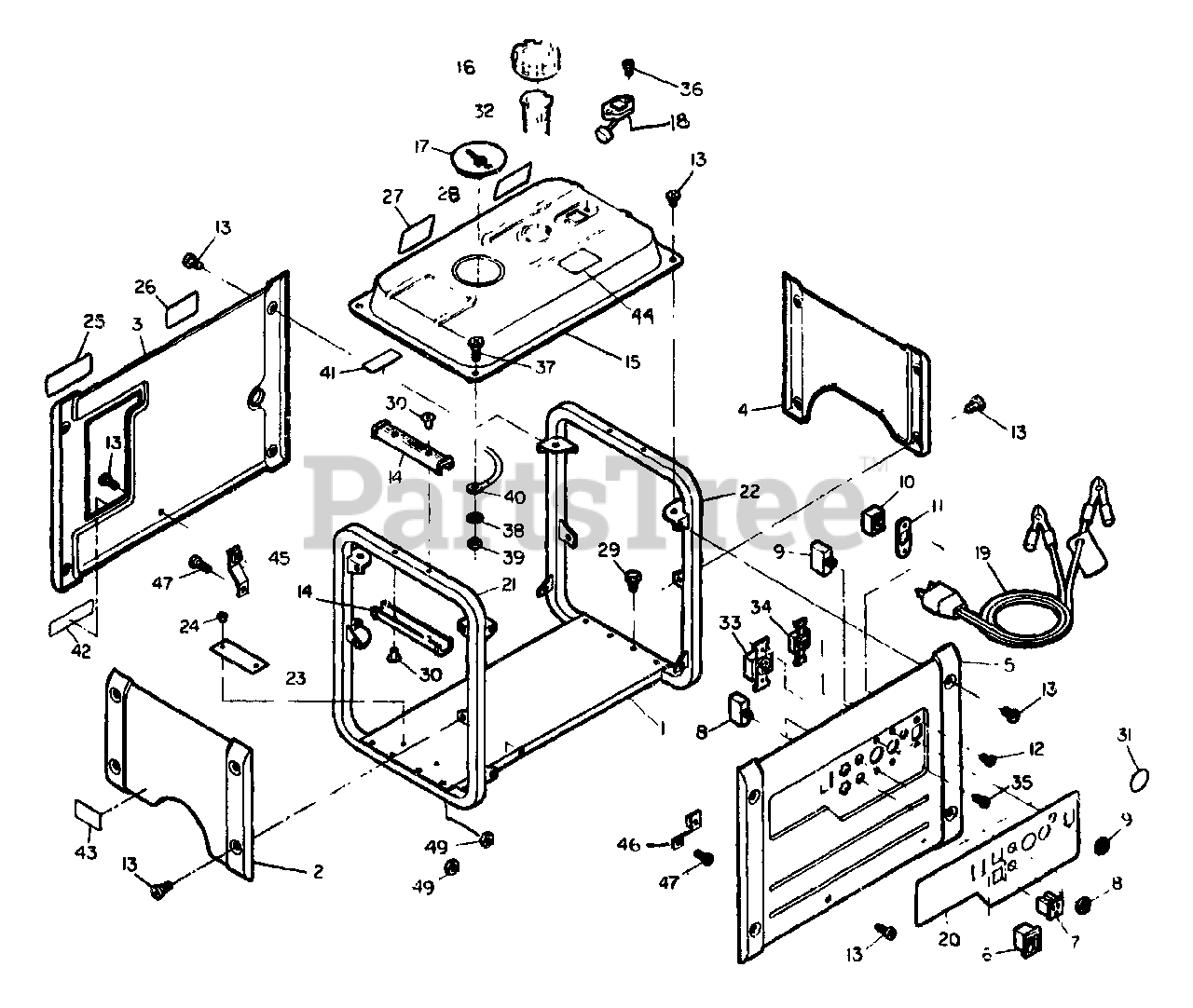

580.328340 (8847-0) - Craftsman 3,600 Watt Portable Generator Cradle Parts Diagram

3,600 Watt Portable Generator

Cradle Parts Diagram

  • Title
1

Briggs & Stratton 67100

BASE, Engine Cradle

$

$

Currently unavailable

2

Briggs & Stratton 67203

PANEL, Engine End

$

$

Currently unavailable

3

Briggs & Stratton 67202

PANEL, Muffler

$

$

Currently unavailable

4

Briggs & Stratton 67204

PANEL, Generator End

$

$

Currently unavailable

5

Briggs & Stratton 67201

PANEL, Receptacle and Control

$

$

Currently unavailable

6

Briggs & Stratton 66817

SWITCH, Engine Control
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 66818

RECEPTACLE- 120 Volts a-c, 15 Ampere
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66848

BREAKER, Circuit- 15 a-c Amperes
(Superseded to 66848GS)

$25.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66820

BREAKER, Circuit- 10 d-c Amperes

$

$

Not available

10

Briggs & Stratton 66821

RECEPTACLE, Battery Charge- 12 Volts d-c
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66822

RETAINER, Receptacle
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66828

SCREW, Machine- M3-0.50 x 8mm

$20.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66827

SCREW, Machine- M5-0.80 x 12mm- Black

$

$

Not available

14

Briggs & Stratton 66450

COVER, Handle

$

$

Not available

15

$

$

Currently unavailable

16

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

17

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

INDICATOR, Fuel Level

$

$

Not available

19

Briggs & Stratton 65787

CABLE, Battery Charge

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 67209

DECAL, Receptacle and Control Panel

$

$

Currently unavailable

21

Briggs & Stratton 67102

CRADLE, Engine End

$

$

Currently unavailable

22

Briggs & Stratton 67101

CRADLE, Generator End

$

$

Currently unavailable

23

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Briggs & Stratton 66382

DECAL, Choke
(Superseded to 66382GS)

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66824

DECAL- Hot Caution

$

$

Currently unavailable

27

Briggs & Stratton 66398D

DECAL- Starting Data

$

$

Currently unavailable

28

Briggs & Stratton 67103

DECAL- Warranty

$

$

Currently unavailable

29

Briggs & Stratton 67459

SCREW (Crimptite)

$

$

Currently unavailable

30

Briggs & Stratton 66831

RIVET- Black- 3mm

$

$

Not available

31

Briggs & Stratton 66864

DECAL- U.S.D.A.

$

$

Not available

32

$

$

Currently unavailable

33

Briggs & Stratton 66853

RECEPTACLE- 120 Volts a-c, 30 Ampere

$

$

Currently unavailable

34

Briggs & Stratton 66881

RECEPTACLE- 240 Volts, 15 Ampere

$

$

Currently unavailable

35

Briggs & Stratton 66882

SCREW, Flat Head- M3.50-0.60 x 5mm

$

$

Currently unavailable

36

Briggs & Stratton 52749

SCREW, Machine- M5-0.80 x 12mm

$

$

Currently unavailable

37

Briggs & Stratton 52619

SCREW, Machine- M5-0.80 x 20mm
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 67444

WASHER, Serrated- M5

$

$

Currently unavailable

39

Briggs & Stratton 51716

NUT, Hex- M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 6639520

WIRE, Ground (Green)

$

$

Currently unavailable

41

DECAL- Unleaded Fuel

$

$

Not available

42

DECAL- Air Cleaner

$

$

Not available

43

DECAL- Lubrication

$

$

Not available

44

Briggs & Stratton 69674

DECAL- Fuel Caution

$

$

Currently unavailable

45

Briggs & Stratton 69636

BRACKET, Muffler Panel Support

$

$

Currently unavailable

46

Briggs & Stratton 69637

BRACKET, Control Panel Support

$

$

Currently unavailable

47

Briggs & Stratton 66890

SCREW, Machine- M6-1.00 x 12mm (with Lock Washer)
(Superseded to 66890GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 49813

NUT, Hex - M6-1.00
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 66883

PLUG, Connector- 120 Volts, 30 Ampere

$

$

Currently unavailable

Briggs & Stratton 66884

PLUG, Connector- 240 Volts, 15 Ampere
(Superseded to 692188)

$8.49

$

In Stock, Qty 5

0

Briggs & Stratton 66852

MANUAL, Owner's
(Superseded to 66852GS)

$14.99

$

Usually ships in 2-12 days

0
