580.328341 (8966-1) - Craftsman 3,600 Watt Portable Generator 3600 Watt A-C Generator (10/95) Parts Diagram

3,600 Watt Portable Generator

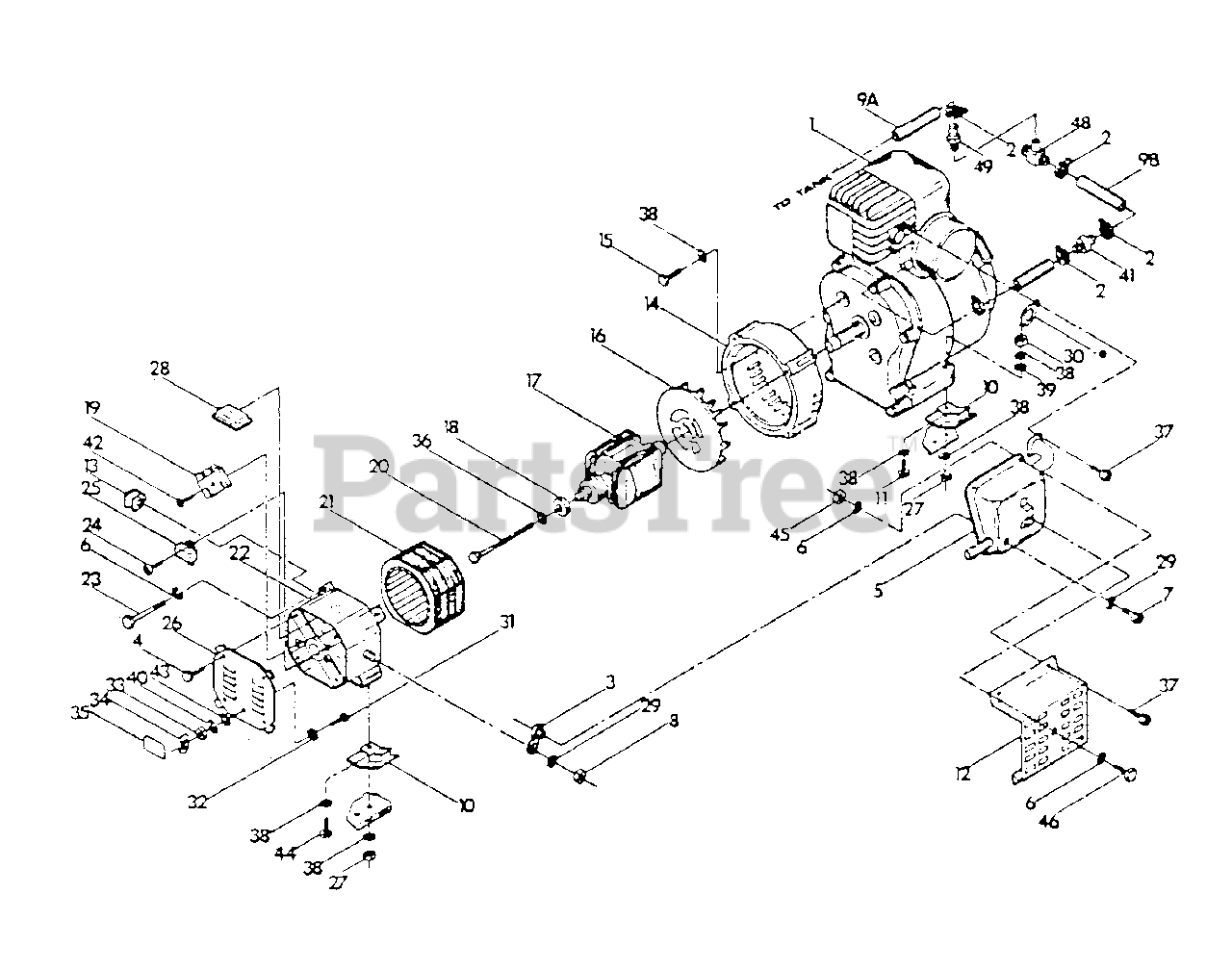

3600 Watt A-C Generator (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 72269

ENGINE - 8 HP Craftsman
(Superseded to 7072269YP)

$61.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 48031C

CLAMP, Fuel Line

$

$

Not available

3

Briggs & Stratton 73021

BRACKET, Muffler Support
(Superseded to 7073021YP)

$176.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66849B

SCREW - M5-0.80 x 8mm
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72084

MUFFLER, Spark Arrestor

$

$

Currently unavailable

6

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73032

CAPSCREW, Socket Head 3/8" - 16 x 1/2"

$

$

Currently unavailable

8

Briggs & Stratton 51755

CAPSCREW - M10-1.50 x 16mm

$

$

Currently unavailable

9A

Briggs & Stratton 47662F

HOSE, Fuel - 20" long

$

$

Currently unavailable

9B

Briggs & Stratton 47662AN

HOSE, Fuel - 17" long

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE, Fuel - 3" long

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 71752

SCREW - 5/16" - 18 x 1-3/4"

$

$

Currently unavailable

12

Briggs & Stratton 72292

SHIELD, Heat
(Superseded to 72292GS)

$21.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22336

CAPSCREW- 5/16" 18 x 3/4"

$

$

Not available

16

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

17

Briggs & Stratton 70418

ROTOR

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 46958

BOLT, Rotor - 5/16" - 24 x 8.62"

$

$

Not available

21

Briggs & Stratton 72062

STATOR

$

$

Currently unavailable

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449F

BOLT, Stator

$

$

Not available

24

Briggs & Stratton 66849

SCREW - M5-0.80 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 45771

NUT, Hex - M8-1.25

$

$

Not available

28

Briggs & Stratton 67107

REGULATOR, Voltage
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

WASHER, Lock - M10

$

$

Not available

30

Briggs & Stratton 22241

NUT, Hex - 3/8" - 16

$

$

Not available

31

Briggs & Stratton 52619

SCREW, Machine - M5-0.80
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67444

WASHER, Serrated- M5

$

$

Currently unavailable

33

Briggs & Stratton 51716

NUT, Hex - M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67435

NUT, Wing- M5-0.80

$

$

Currently unavailable

35

Briggs & Stratton 67210

DECAL- Ground
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

WASHER, Flat - M8 (Special)

$

$

Currently unavailable

37

Briggs & Stratton 39974

CAPSCREW, Socket Head - 1/4" - 20 x 1/2"

$

$

Currently unavailable

38

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49810

WASHER, Flat - M8
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 49226

WASHER, Lock - M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 66849A

SCREW - M5-0.80 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 23897

WASHER, Flat - M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

SCREW - M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 22127

NUT, Hex - 1/4" - 20

$

$

Not available

46

Briggs & Stratton 43146

CAPSCREW - M6-1.00 x 10mm
(Superseded to 43146GS)

$7.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 71384

VALVE, Fuel Shutoff

$

$

Not available

49

Briggs & Stratton 28414

FITTING, Barbed - 1/4"

$

$

Currently unavailable

Briggs & Stratton 73066

MANUAL, Owners

Note: Not Shown

$

$

Not available
